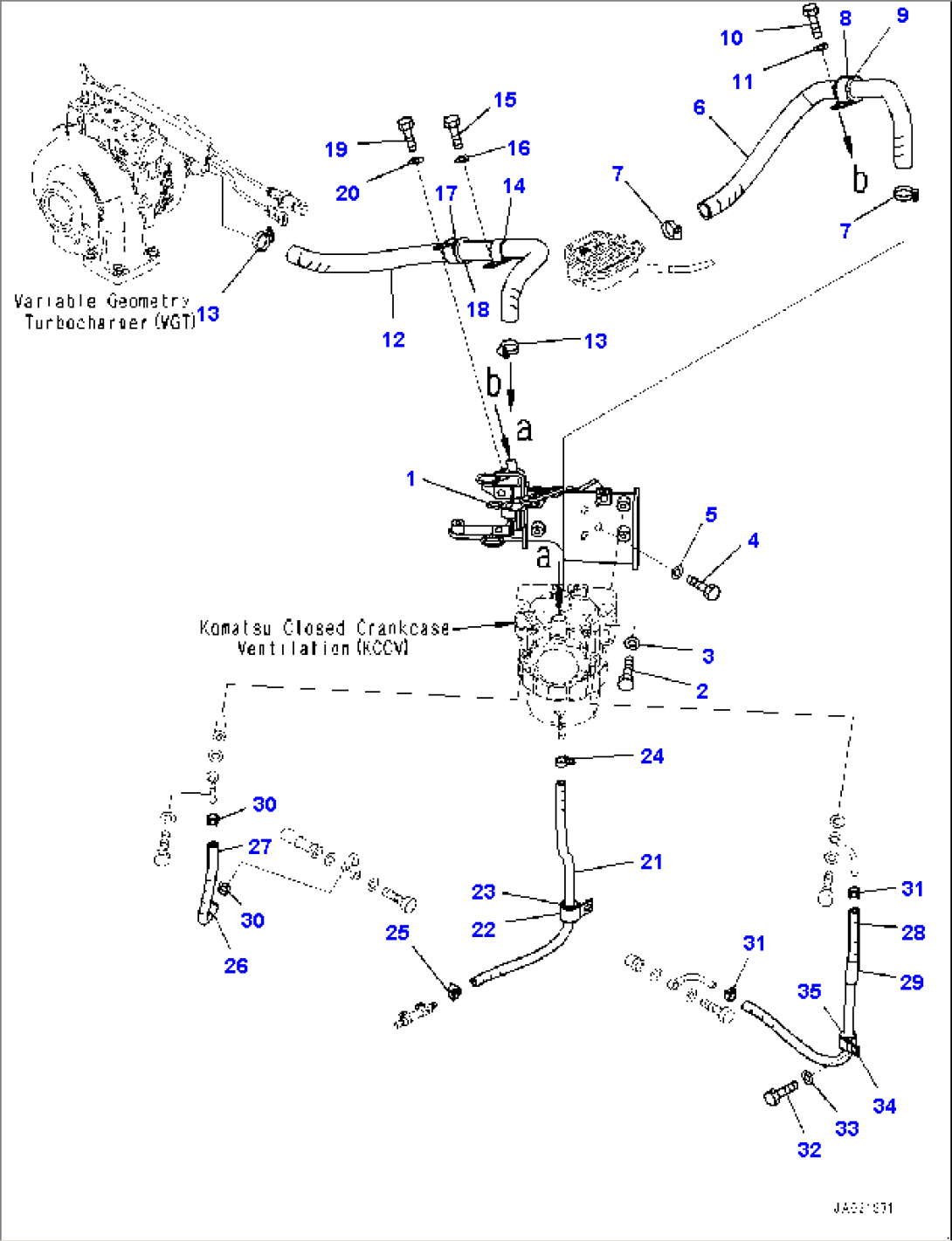

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-01-61411 | Bracket | 1001- | |
| 2 | 01010-81070 | Bolt | 1001- | |
| 3 | 01643-31032 | Washer | 1001- | |
| 4 | 01010-81240 | Bolt | 1001- | |
| 5 | 01643-31232 | Washer | 1001- | |
| 6 | 14X-01-61421 | Hose | 1001- | |
| 7 | 6746-21-7150 | Clamp | 1001- | |
| 8 | 14X-01-61470 | Clip | 1001- | |
| 9 | 17A-49-19940 | Cushion | 1001- | |
| 10 | 01010-81020 | Bolt | 1001- | |
| 11 | 01643-31032 | Washer | 1001- | |
| 12 | 14X-01-61431 | Hose | 1001- | |
| 13 | 6746-21-7150 | Clamp | 1001- | |
| 14 | 04434-53211 | Clip | 1001- | |
| 15 | 01010-81025 | Bolt | 1001- | |
| 16 | 01643-31032 | Washer | 1001- | |
| 17 | 14X-01-61470 | Clip | 1001- | |
| 18 | 17A-49-19940 | Cushion | 1001- | |
| 19 | 01010-81025 | Bolt | 1001- | |
| 20 | 01643-31032 | Washer | 1001- | |
| 21 | 14X-01-61490 | Hose | 1001- | |
| 22 | 04434-52511 | Clip | 1001- | |
| 23 | 07095-20318 | Cushion | 1001- | |
| 24 | 6746-21-7160 | Clamp | 1001- | |
| 25 | 6746-21-7160 | Clamp | 1001- | |
| 26 | 08017-81901 | Conduit | 1528- | |
| 27 | 14X-01-61821 | Hose | 1528- | |
| 28 | 14X-01-61811 | Hose | 1528- | |
| 29 | 08017-81901 | Conduit | 1528- | |
| 30 | 11Y-09-11140 | Clip | 1528- | |
| 31 | 11Y-09-11140 | Clip | 1528- | |
| 32 | 01010-81025 | Bolt | 1528- | |
| 33 | 01643-31032 | Washer | 1528- | |
| 34 | 14X-01-61870 | Clip | 1528- | |
| 35 | 07095-20314 | Cushion | 1528- |
