| Item | Part No. | Part Name | Qty | Serial No. |

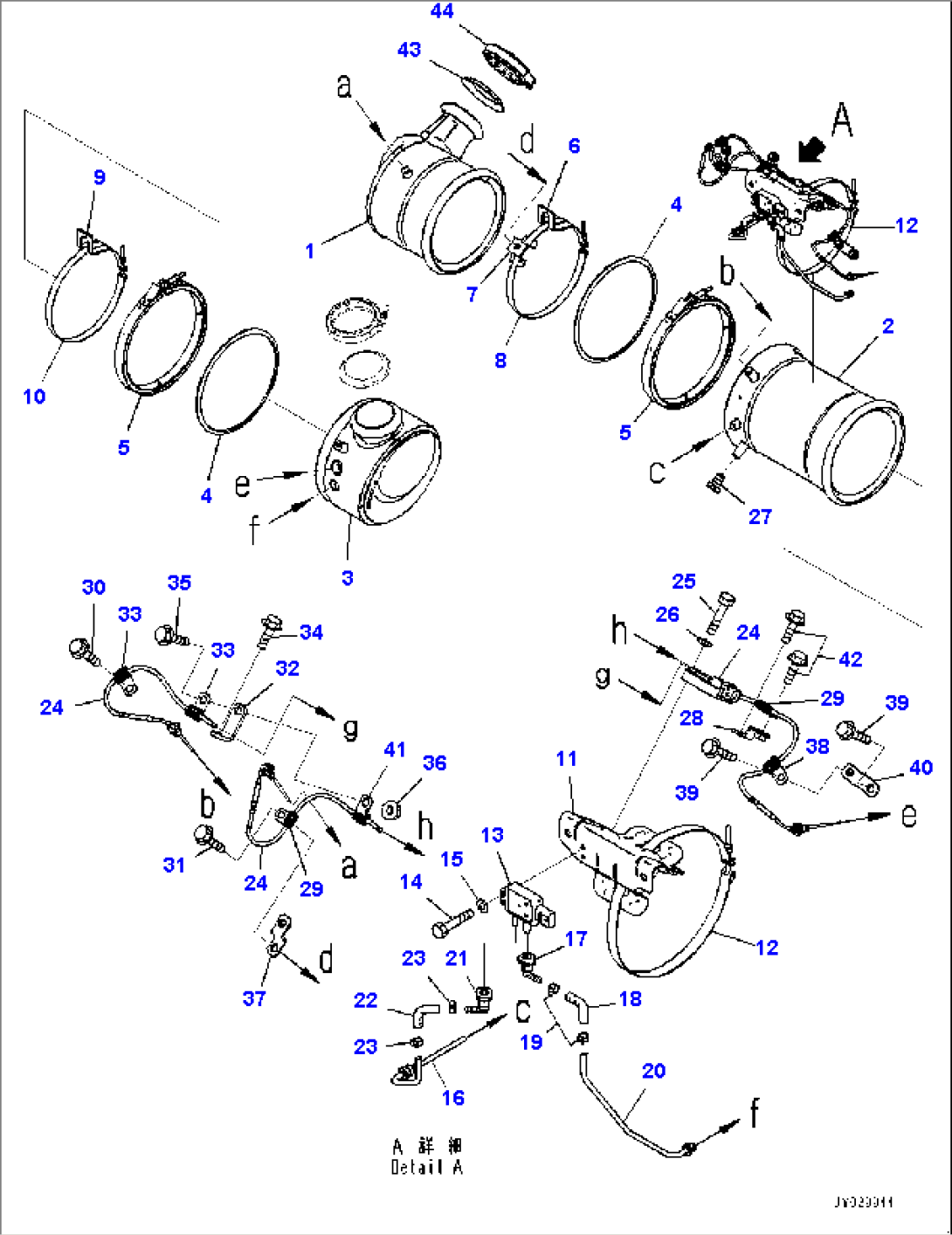

| 6534-01-0040 | Komatsu Diesel Particulate Filter (KDPF) Assembly | 26631040- | ||
| 1 | 6534-21-1040 | Body | 26631040- | |
| 2 | 6534-31-1010 | Body | 26631040- | |
| 3 | 6534-41-1040 | Body | 26631040- | |
| 4 | 6524-91-1040 | Gasket | 26631040- | |
| 5 | 6524-91-1010 | Clamp | 26631040- | |
| 6 | 6524-91-4011 | Hanger | 26631040- | |
| 7 | 6544-81-1110 | Bracket | 26631040- | |
| 8 | 6534-91-4110 | Band | 26631040- | |
| 9 | 6534-81-2110 | Hanger | 26631040- | |
| 10 | 6534-91-4110 | Band | 26631040- | |
| 11 | 6535-81-2110 | Bracket | 26631040- | |
| 12 | 6534-91-4110 | Band | 26631040- | |
| 13 | 6520-81-1010 | Sensor, Pressure | 26631040- | |
| 14 | 01010-80630 | Bolt | 26631040- | |
| 15 | 01643-30623 | Washer | 26631040- | |
| 16 | 6534-81-2180 | Tube | 26631040- | |
| 17 | 6520-81-1080 | Connector | 26631040- | |
| 18 | 6520-81-1060 | Hose | 26631040- | |
| 19 | 07285-00115 | Clip | 26631040- | |
| 20 | 6534-81-2190 | Tube | 26631040- | |
| 21 | 6520-81-1080 | Connector | 26631040- | |
| 22 | 6520-81-1060 | Hose | 26631040- | |
| 23 | 07285-00115 | Clip | 26631040- | |
| 24 | 600-816-2420 | Sensor, Temperature | 26631040- | |
| 25 | 01010-80630 | Bolt | 26631040- | |
| 26 | 01643-30623 | Washer | 26631040- | |
| 27 | 6535-81-2180 | Plug | 26631040- | |
| 28 | 6535-81-2170 | Bracket | 26631040- | |
| 29 | 6530-91-1010 | Clip | 26631040- | |
| 30 | 01435-01016 | Bolt | 26631040- | |
| 31 | 01435-01020 | Bolt | 26631040- | |
| 32 | 6536-91-1090 | Plate | 26631040- | |
| 33 | 6530-91-1010 | Clip | 26631040- | |
| 34 | 01435-01020 | Bolt | 26631040- | |
| 35 | 01435-01025 | Bolt | 26631040- | |
| 36 | 01584-01008 | Nut | 26631040- | |
| 37 | 6535-81-2170 | Bracket | 26631040- | |
| 38 | 6530-91-1010 | Clip | 26631040- | |
| 39 | 01435-01016 | Bolt | 26631040- | |
| 40 | 6535-81-2170 | Bracket | 26631040- | |
| 41 | 6530-91-1010 | Clip | 26631040- | |
| 42 | 01435-01016 | Bolt | 26631040- | |
| 43 | 6534-91-1130 | Gasket | 26631040- | |
| 44 | 6534-91-1120 | Clamp | 26631040- |
