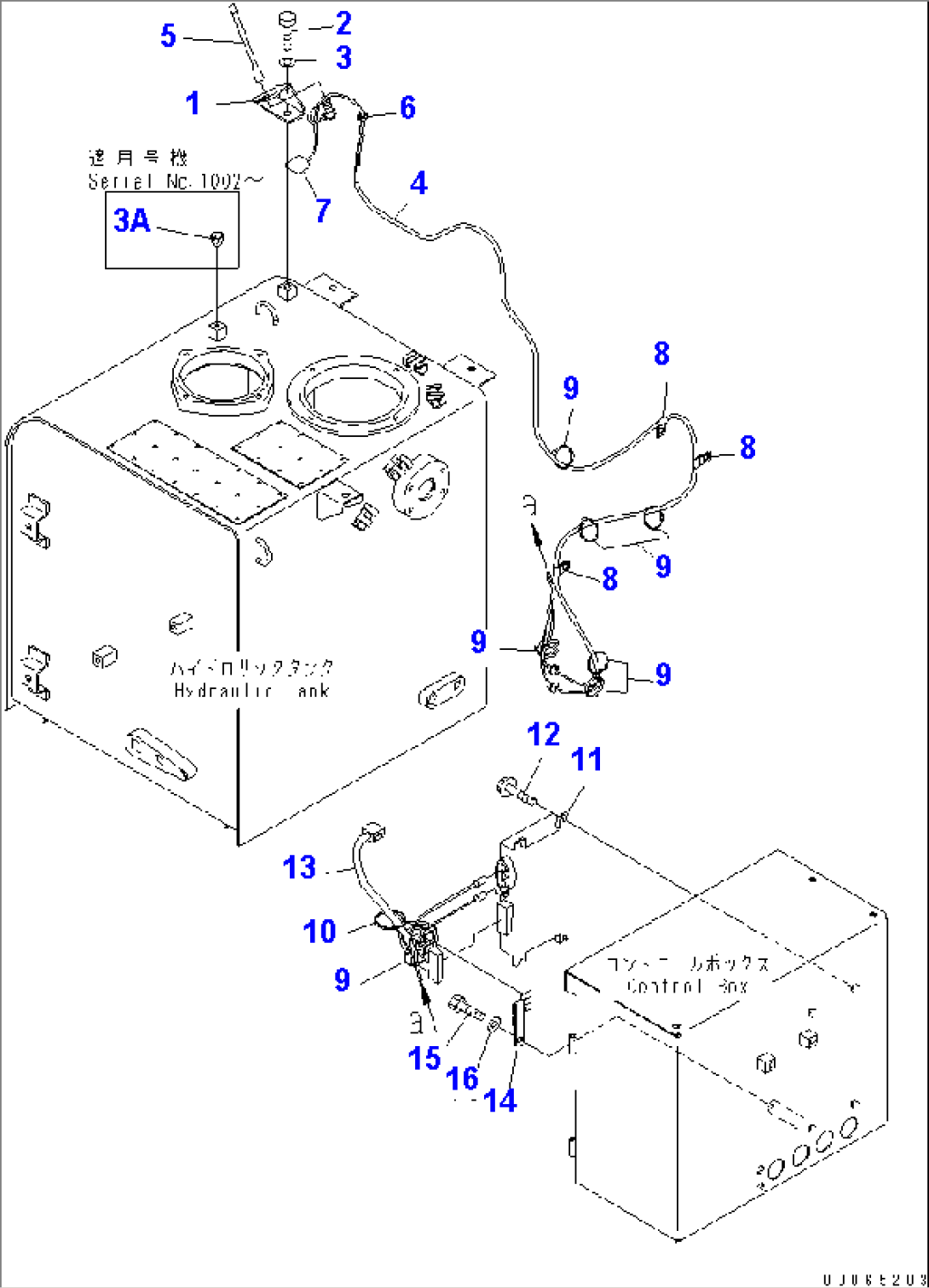

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-06-4580 | BRACKET | 1001- | |
| 2 | 01010-81225 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 3A | 07049-01215 | PLUG | 1002- | |
| 4 | 8A13-10-2200 | CABLE | 1001- | |
| 5 | 8A13-10-2100 | ANTENNA | 1001- | |
| 6 | 175-06-81610 | GROMMET | 1001-1011 | |
| 7 | 8A13-10-1310 | ANTENNA | 1001- | |
| 8 | 04434-50612 | CLIP | 1001- | |
| 9 | 08034-20519 | BAND | 1001- | |
| 10 | 08034-20536 | BAND | 1001- | |
| 11 | 7826-20-7036 | CONTROLLER | 1032- | |
| 11 | \0\7826-20-7035 | CONTROLLER | 1029-1031 | |
| 11 | \0\7826-20-7034 | CONTROLLER | 1014-1028 | |
| 11 | \0\7826-20-7033 | CONTROLLER | 1003-1013 | |
| 11 | \0\7826-20-7032 | CONTROLLER | 1001-1002 | |
| 12 | 01435-00820 | BOLT | 1001- | |
| 13 | 20Y-06-31250 | WIRING HARNESS | 1001- | |
| 14 | 8240-06-4390 | BRACKET | 1001- | |
| 15 | 01010-81230 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- |
