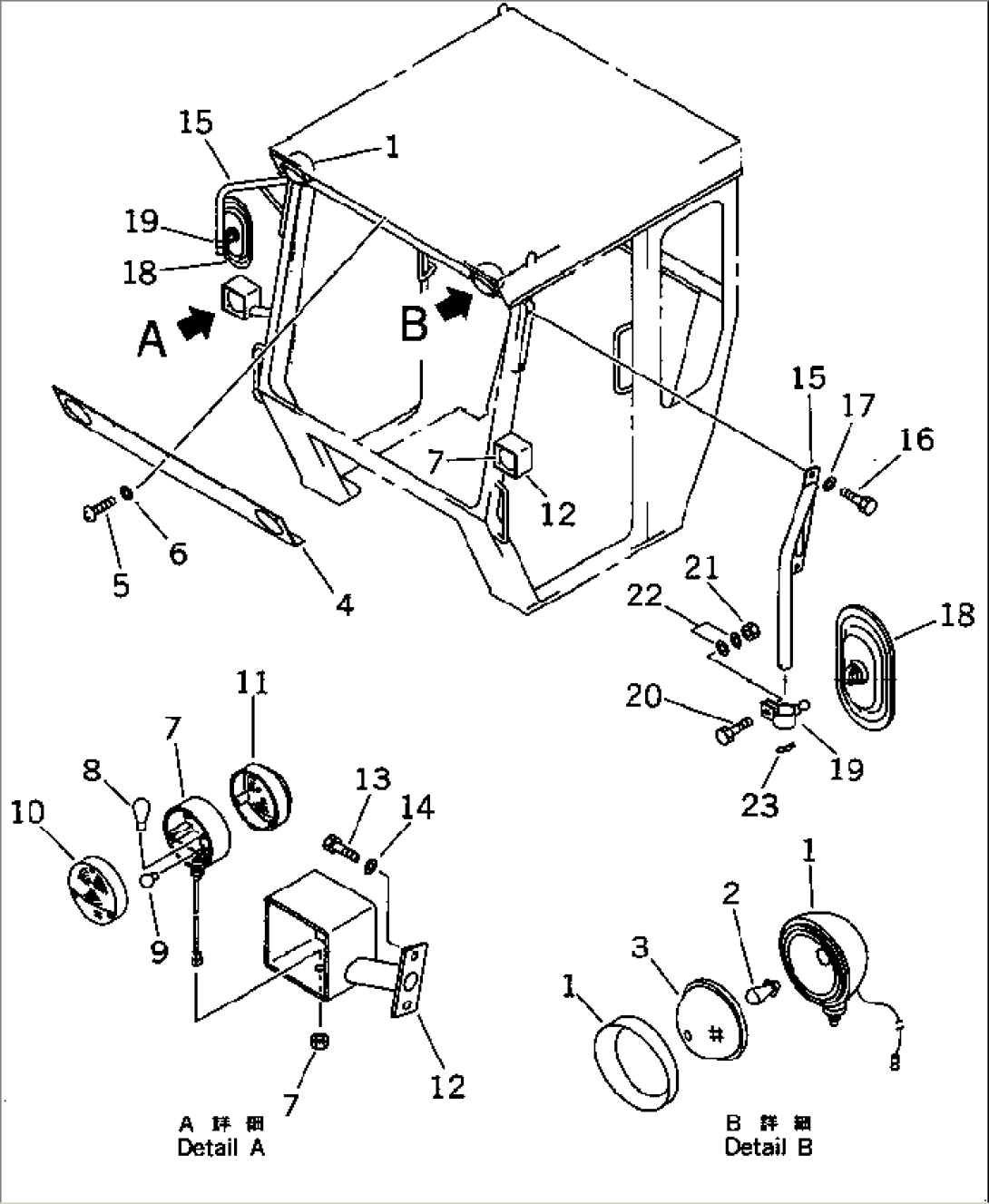

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 232-06-51980 | LAMP ASS'Y,WORK | 10011- | |
| 2 | 08100-02460 | BULB, 60/60W | 10011- | |
| 3 | 232-06-51990 | LENS | 10011- | |
| 4 | 273-955-2250 | COVER | 10011- | |
| 5 | 01370-00408 | SCREW | 10011- | |
| 6 | 01641-20405 | WASHER | 10011- | |
| 7 | 273-06-12610 | LAMP ASS'Y,COMBINATION | 10011- | |
| 8 | 08105-02420 | BULB, 25W | 10011- | |
| 9 | 08136-02405 | BULB, 5W | 10011- | |
| 10 | 08136-00006 | LENS,FRONT | 10011- | |
| 11 | 08136-00003 | LENS,REAR | 10011- | |
| 12 | 273-955-2330 | BRACKET,L.H. | 10011- | |
| 12 | 273-955-2340 | BRACKET,R.H. | 10011- | |
| 13 | 01010-51020 | BOLT | 10011- | |
| 14 | 01641-31032 | WASHER | 10011- | |
| 15 | 273-955-2350 | BRACKET,L.H. | 10011- | |
| 15 | 273-955-2360 | BRACKET,R.H. | 10011- | |
| 16 | 01010-51020 | BOLT | 10011- | |
| 17 | 01643-31032 | WASHER | 10011- | |
| 18 | 08174-10001 | MIRROR | 10011- | |
| 19 | 232-06-15151 | PIVOT | 10011- | |
| 20 | 01010-50820 | BOLT | 10011- | |
| 21 | 01580-10806 | NUT | 10011- | |
| 22 | 01643-30823 | WASHER | 10011- | |
| 23 | 04025-00540 | PIN,SPRING | 10011- |
