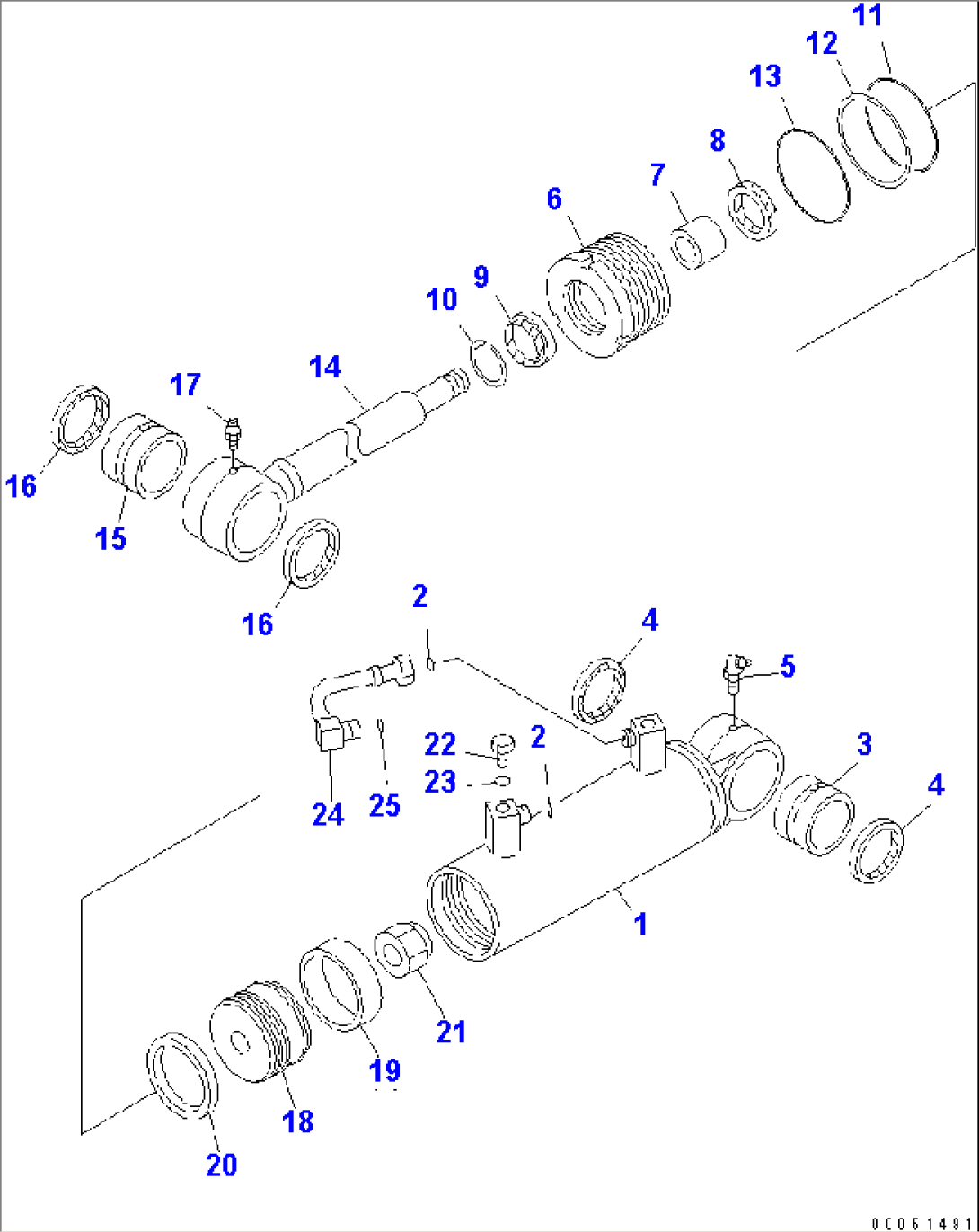

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-X7G70) | CYLINDER GROUP,(FINAL COATING) | 51301- | |
| ==================== | ||||
| 707-00-0C220 | CYLINDER ASS'Y | 51301- | ||
| 1 | 707-11-80C50 | CYLINDER | 51301- | |
| 2 | 02896-11009 | O-RING (KIT) | 51301- | |
| 3 | 07144-10405 | BUSHING | 51301- | |
| 4 | 07145-00045 | SEAL,DUST (KIT) | 51301- | |
| 5 | 07020-00675 | FITTING,GREASE | 51301- | |
| 6 | 707-29-80820 | HEAD,CYLINDER | 51301- | |
| 7 | 07177-04025 | BUSHING | 51301- | |
| 8 | 707-51-40210 | PACKING,ROD (KIT) | 51301- | |
| 9 | 198-63-75190 | SEAL,DUST (KIT) | 51301- | |
| 10 | 07179-12052 | RING,SNAP | 51301- | |
| 11 | 07000-12075 | O-RING (KIT) | 51301- | |
| 12 | 07146-02076 | RING,BACK-UP (KIT) | 51301- | |
| 13 | 07000-12080 | O-RING (KIT) | 51301- | |
| 14 | 721-58-40920 | ROD,PISTON | 51301- | |
| 15 | 707-76-50240 | BUSHING | 51301- | |
| 16 | 07145-00050 | SEAL,DUST (KIT) | 51301- | |
| 17 | 07020-00000 | FITTING,GREASE | 51301- | |
| 18 | 707-36-80970 | PISTON | 51301- | |
| 19 | 07156-00810 | RING,WEAR (KIT) | 51301- | |
| 20 | 707-44-80070 | RING,PISTON (KIT) | 51301- | |
| 21 | 07165-12729 | NUT,NYLON | 51301- | |
| 22 | 07040-11007 | PLUG | 51301- | |
| 23 | 07002-11023 | O-RING (KIT) | 51301- | |
| 24 | 707-86-38960 | TUBE | 51301- | |
| 25 | 02896-11009 | O-RING (KIT) | 51301- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-22280 | SERVICE KIT,LEANING CYLINDER | 51301- |
