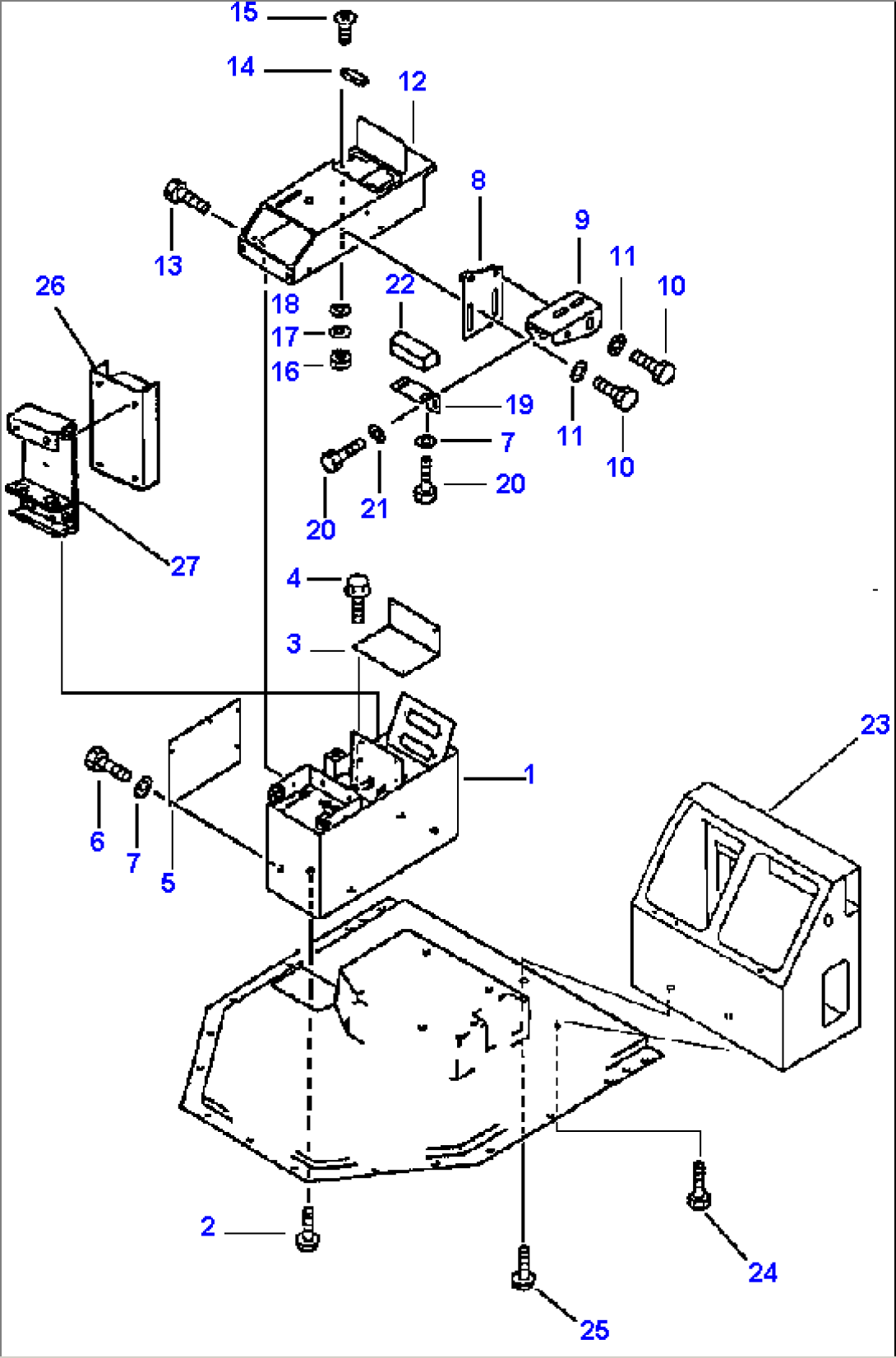

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-54-12713 | BOX, CONSOLE | ||
| 421-S99-1610 | BOX, CONSOLE | |||
| 426-877-1170 | BOX, CONSOLE | |||
| 09415-05016 | CAP | |||
| 2 | 01435-01225 | BOLT | ||
| 3 | 424-54-14191 | PLATE | ||
| 421-S99-1630 | PLATE | |||
| 4 | 01435-00610 | BOLT | ||
| 5 | 425-54-12722 | PLATE | ||
| 6 | 01010-60816 | BOLT | ||
| 7 | 01643-30823 | WASHER | ||
| 8 | 425-54-12692 | PLATE | ||
| 9 | 425-54-12684 | BRACKET | ||
| 10 | 01010-51225 | BOLT | ||
| 11 | 01643-31232 | WASHER | ||
| 12 | 425-54-12843 | COVER | ||
| 13 | 01435-00816 | BOLT | ||
| 14 | 09452-06506 | CATCHER | ||
| 15 | 01224-40412 | SCREW | ||
| 16 | 01580-10403 | NUT | ||
| 17 | 01601-20410 | WASHER, SPRING | ||
| 18 | 01641-20405 | WASHER | ||
| 19 | 421-54-18560 | PLATE | ||
| 20 | 01010-50820 | BOLT | ||
| 21 | 01643-30823 | WASHER | ||
| 22 | 421-54-18550 | REST, ARM | ||
| 23 | 426-54-A3010 | BOX, FILTER | ||
| 24 | 01435-00814 | BOLT | ||
| 25 | 01435-01220 | BOLT | ||
| 26 | 7823-43-3000 | CONTROLLER | ||
| 01435-00814 | BOLT | |||
| 27 | 421-S99-1620 | BRACKET | ||
| 01435-00814 | BOLT | |||
| F1 - FOR MACHINES W/O ELECTRONICALLY CONTROLLED | ||||
| SUSPENSION SYSTEM OR A THREE SPOOL EQUIPMENT | ||||
| CONTROL VALVE | ||||
| F2 - FOR MACHINES WITH ELECTRONICALLY CONTROLLED | ||||
| SUSPENSION SYSTEM | ||||
| F3 - FOR MACHINES WITH A THREE SPOOL EQUIPMENT | ||||
| CONTROL VALVE |
