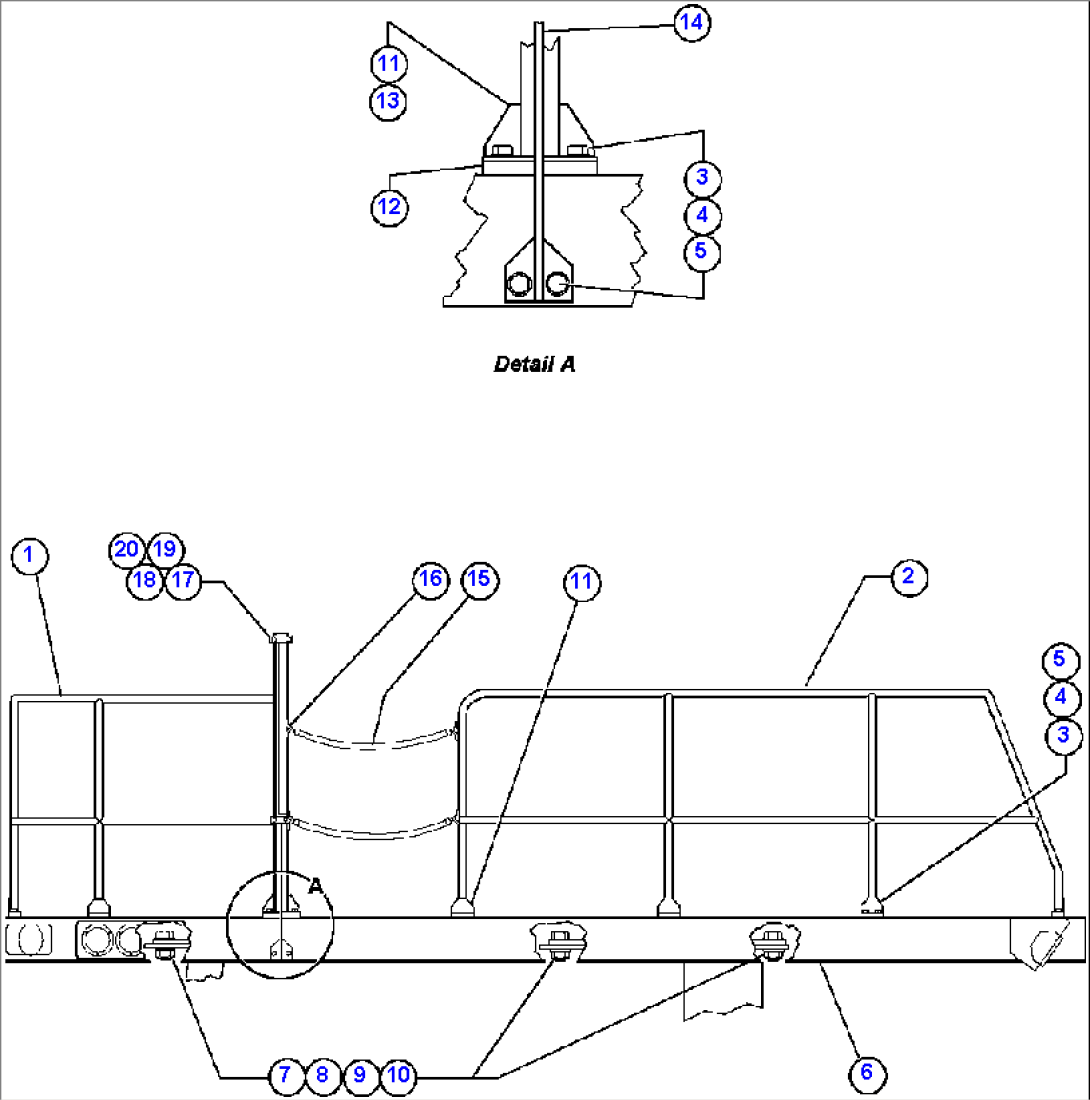

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG1073 | HANDRAIL - L.H. FRONT | ||
| 2 | EG0632 | HANDRAIL, L.H. REAR | ||
| 3 | MM0617 | CAPSCREW - M12 X 1.75 X 25 | ||
| 4 | MM0462 | FLAT WASHER - M12 | ||
| 5 | MM0472 | LOCKWASHER - M12 | ||
| 6 | EG8729 | DECK, LEFT | ||
| 7 | MM0128 | CAPSCREW - M20 X 2.50 X 110 | ||
| 8 | EC7594 | FLAT WASHER - M20 | ||
| 9 | EG9144 | SPACER | ||
| 10 | MM0697 | NUT - M20 X 2.50 (LOCKING) | ||
| 11 | ED6111 | PAD, TAPPED | ||
| 12 | ED6112 | PAD, TAPPED | ||
| 13 | TZ5945 | PLATE, MOUNTING | ||
| 14 | EF0740 | GUSSET | ||
| 15 | EG0639 | CHAIN ASSEMBLY | ||
| 16 | TB8588 | ROD, FORMED | ||
| 17 | AK1214 | MIRROR ASSEMBLY (SEE FIG 30460) | ||
| 18 | MM0607 | CAPSCREW - M10 X 1.50 X 35 | ||
| 19 | MM0471 | LOCKWASHER - M10 | ||
| 20 | MM0461 | FLAT WASHER - M10 | ||
| NS|21 | NOTE: NS = NOT SHOWN | |||
| NS|22 | EG0565 | LADDER, SERVICE - LEFT UPRIGHT (LOWER REAR) | ||
| NS|23 | TV1748 | CAPSCREW - 5/8" - 11NC X 1 1/2" | ||
| NS|24 | WA4863 | FLAT WASHER - 5/8" | ||
| NS|25 | VN9952 | LOCKNUT - 5/8" |
