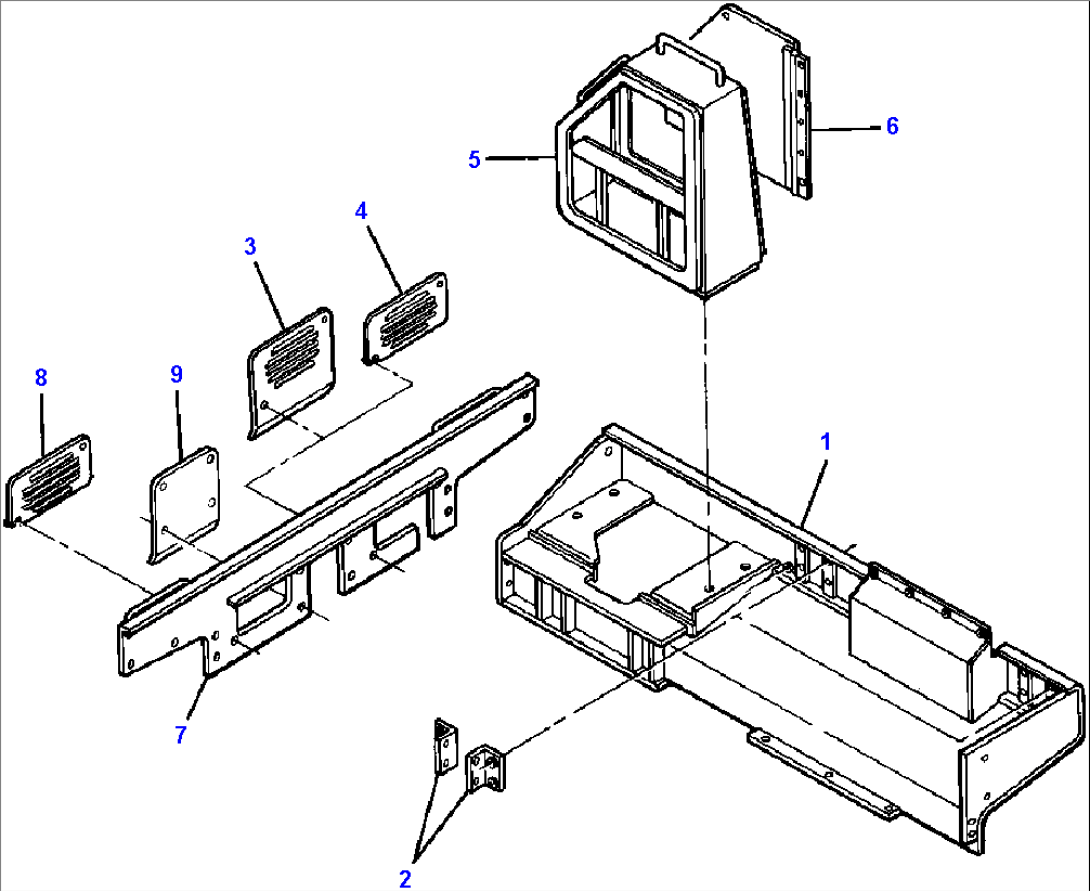

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1234 519 H91 | FENDER, LEFT | ||
| 30 089 R1 | BOLT, MOUNTING - M20x50 | |||
| 30 187 R1 | WASHER, FLAT - M20 | |||
| 2 | 1206 909 H91 | BRACKET, MOUNTING | ||
| 30 095 R1 | BOLT, MOUNTING - M20x80 | |||
| 30 187 R1 | WASHER, FLAT - M20 | |||
| 30 171 R1 | NUT, HEX - M20 | |||
| 3 | 1221 515 H1 | COVER, LEFT REAR | ||
| 30 225 R1 | BOLT, MOUNTING - M12x30 | |||
| 30 185 R1 | WASHER, FLAT - M12 | |||
| 4 | 1232 905 H1 | COVER, LEFT REAR | ||
| 30 225 R1 | BOLT, MOUNTING - M12x30 | |||
| 30 185 R1 | WASHER, FLAT | |||
| 5 | 1234 510 H91 | BOX, FILTER | ||
| 30 087 R1 | BOLT, MOUNTING - M20x40 | |||
| 30 179 R1 | WASHER, FLAT - M20 | |||
| 6 | 730 535 C1 | DOOR, FILTER BOX | ||
| 30 216 R1 | BOLT, MOUNTING - M12x25 | |||
| 30 185 R1 | WASHER, FLAT - M12 | |||
| 7 | 1221 513 H91 | PLATE, REAR CLOSURE | ||
| 30 086 R1 | BOLT, MOUNTING - M20x35 | |||
| 30 187 R1 | WASHER, FLAT - M20 | |||
| 8 | 1232 905 H1 | COVER, RIGHT REAR | ||
| 30 225 R1 | BOLT, MOUNTING - M20x30 | |||
| 30 185 R1 | WASHER, FLAT - | |||
| 9 | 727 252 C2 | DOOR, REAR | ||
| 30 225 R1 | BOLT, MOUNTING - M20x30 | |||
| 30 185 R1 | WASHER, FLAT - M20 | |||
| F1 - WITHOUT FAST FUEL FILL | ||||
| F2 - WITH FAST FUEL FILL | ||||
| F3 - WITHOUT RIPPER | ||||
