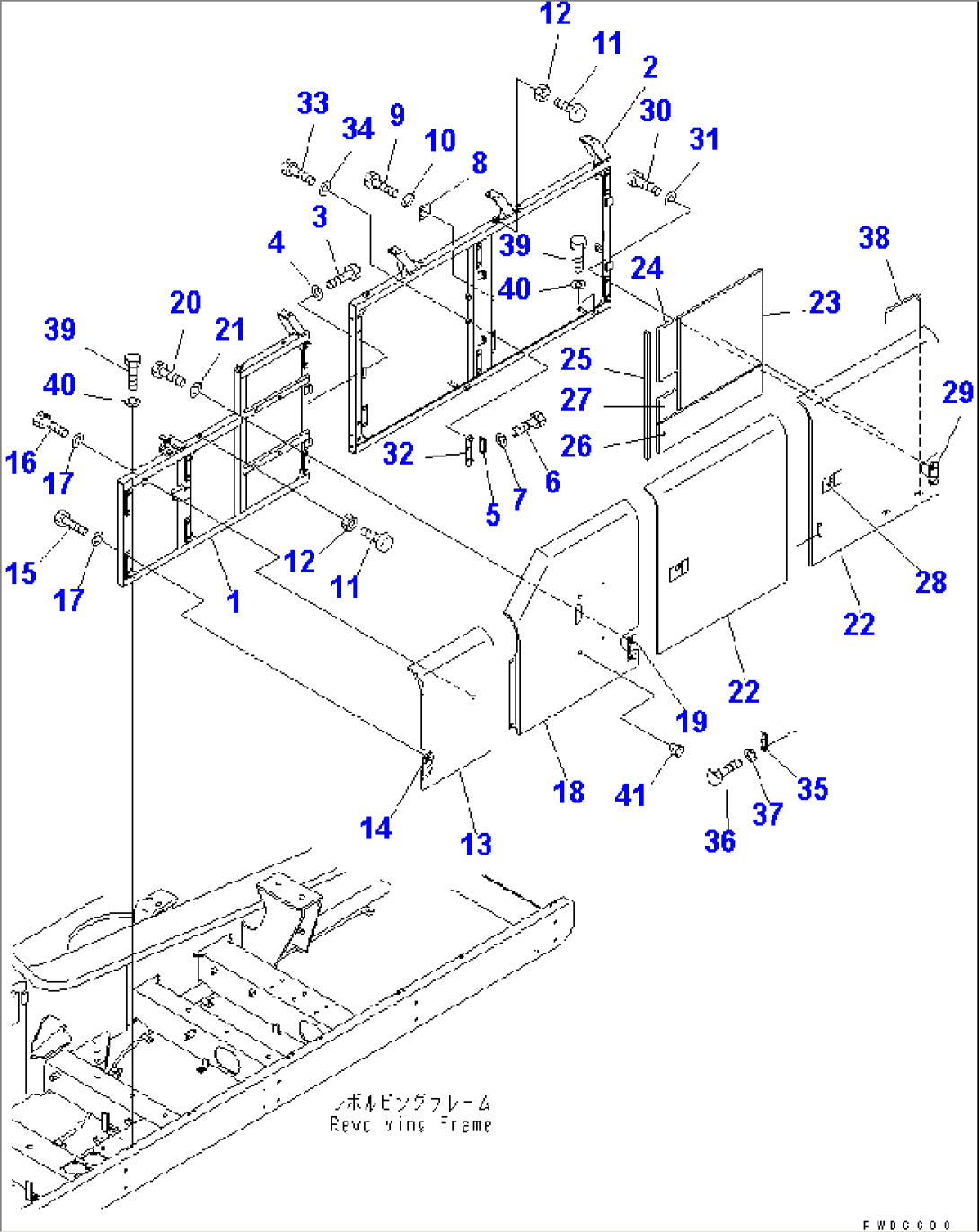

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-54-73212 | FRAME | 10001-10173 | |
| 2 | 209-54-75520 | FRAME | 10001-10173 | |
| 3 | 01010-81230 | BOLT | 10001-10173 | |
| 4 | 01643-31232 | WASHER | 10001-10173 | |
| 5 | 205-54-51970 | DOVE TAIL | 10001-@ | |
| 6 | 01010-80616 | BOLT | 10001-@ | |
| 7 | 01643-30623 | WASHER | 10001-@ | |
| 8 | 209-54-63260 | BRACKET | 10001-@ | |
| 9 | 01010-81230 | BOLT | 10001-@ | |
| 10 | 01643-31232 | WASHER | 10001-@ | |
| 11 | 20Y-54-11611 | STOPPER | 10001-@ | |
| 12 | 01580-11008 | NUT | 10001-@ | |
| 13 | 209-54-73232 | COVER | 10001-@ | |
| 14 | 20Y-54-28161 | HINGE | 10001-@ | |
| 15 | 01010-81230 | BOLT | 10001-@ | |
| 16 | 01010-81220 | BOLT | 10001-@ | |
| 17 | 01643-31232 | WASHER | 10001-@ | |
| 18 | 209-54-73241 | COVER | 10001-@ | |
| 19 | 20Y-54-28161 | HINGE | 10001-@ | |
| 20 | 01010-81230 | BOLT | 10001-@ | |
| 21 | 01643-31232 | WASHER | 10001-@ | |
| 22 | 209-54-73253 | COVER | 10001-10173 | |
| 23 | 209-54-74641 | SHEET | 10001-10173 | |
| 24 | 209-54-74650 | SHEET | 10001-@ | |
| 25 | 209-54-74681 | SHEET | 10001-@ | |
| 26 | 209-54-74820 | SHEET | 10001-@ | |
| 27 | 209-54-74830 | SHEET | 10001-@ | |
| 28 | 198-54-41982 | LOCK ASS'Y | 10001-@ | |
| 29 | 20Y-54-28161 | HINGE | 10001-@ | |
| 30 | 01010-81230 | BOLT | 10001-@ | |
| 31 | 01643-31232 | WASHER | 10001-@ | |
| 32 | 20Y-54-28170 | BRACKET | 10001-@ | |
| 33 | 01010-81230 | BOLT | 10001-@ | |
| 34 | 01643-31232 | WASHER | 10001-@ | |
| 35 | 205-54-53550 | DOVE TAIL | 10001-@ | |
| 36 | 01010-80616 | BOLT | 10001-@ | |
| 37 | 01643-30623 | WASHER | 10001-@ | |
| 38 | 20Y-54-29232 | BAR | 10001-@ | |
| 39 | 01010-81230 | BOLT | 10001-@ | |
| 40 | 01643-31232 | WASHER | 10001-@ | |
| 41 | 07049-01215 | PLUG | 10014-@ |
