| Item | Part No. | Part Name | Qty | Serial No. |

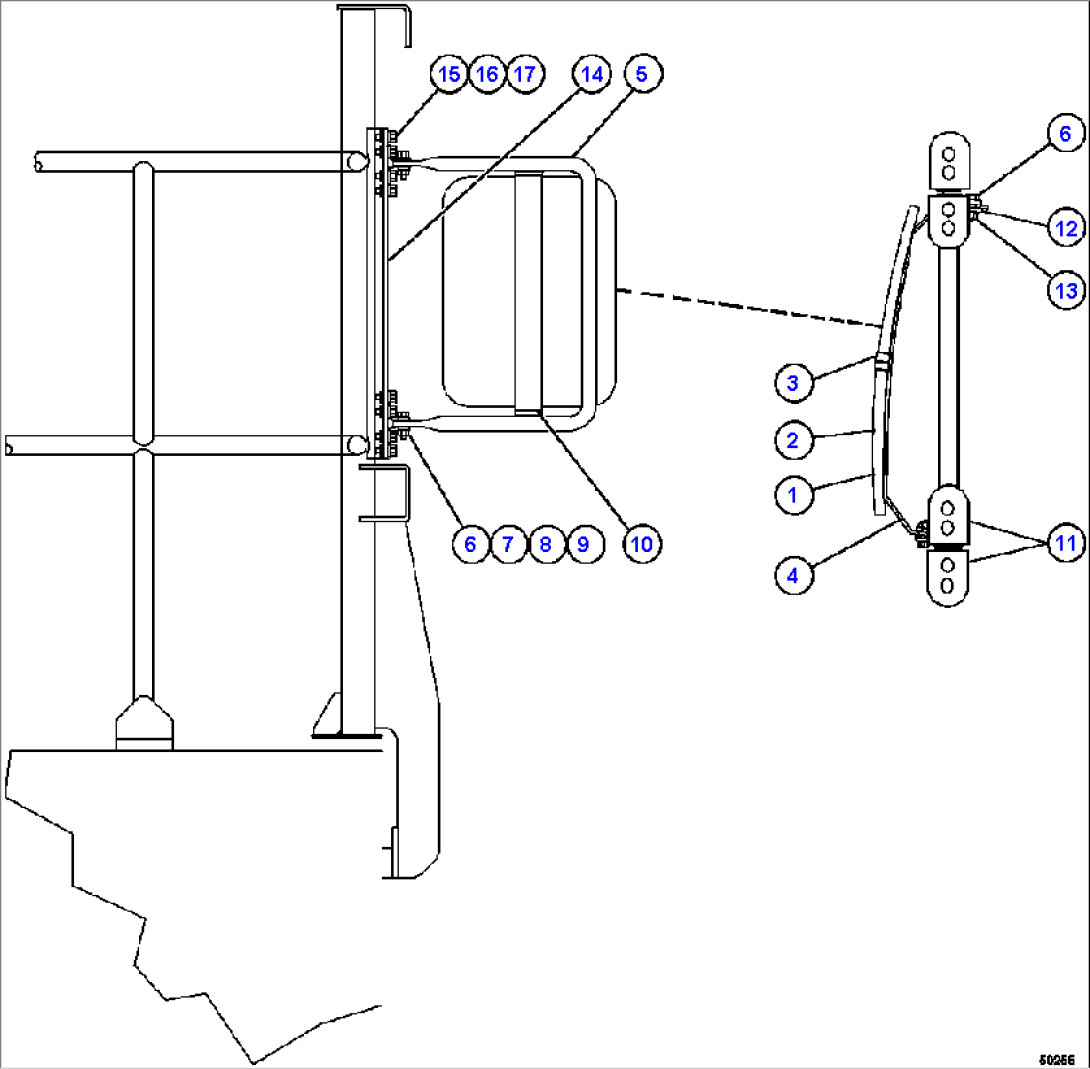

| 0 | PB7491 | CONVEX MIRROR ASSEMBLY | | |
| 1 | VE5445 | MIRROR, CONVEX GLASS | | |
| 2 | VE5447 | TRIM, PINCHWELT | | |
| 3 | VE5446 | SPRING, CLIP | | |
| 4 | VE5448 | BACK ASSEMBLY | | |
| 4 | PB7490 | ARM BOW ASSEMBLY | | |
| 5 | VE5449 | BOW, ARM | | |
| 6 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" (1) | | |
| 7 | VE5451 | WASHER, FIBER - 25/64" X 7/8" (1) | | |
| 8 | H5304 | LOCKWASHER - 3/8" (1) | | |
| 9 | SD4572 | JAM NUT - 3/8" - 16NC (1) | | |
| 10 | VE5453 | CLAMP (1) | | |
| 11 | VE5454 | ANGLE, MOUNTING (1) | | |
| 12 | VE5452 | WASHER - 13/32" (1) | | |
| 13 | C1521 | NUT - 3/8" - 16NC (1) | | |
| 14 | TZ6087 | CHANNEL | | |
| 15 | C1598 | CAPSCREW - 5/16" - 18NC X 1" | | |
| 16 | WA0723 | FLAT WASHER - 5/16" (HARDENED) | | |
| 17 | C1538 | LOCKWASHER - 5/16" | | |
| NS|20 | VE5450 | NOTE: (1) INCLUDED IN VE5450 REPAIR KIT. | | |
