| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22M-54-23115 | FLOOR FRAME, ASSEMBLY | F00103- | |
| 2 | 22M-43-21452 | SUPPORT | F00103- | |
| 3 | 06124-01616 | BEARING, NEEDLE | F00103- | |
| 4 | 01010-D1025 | BOLT | F00103- | |
| 5 | 01643-11032 | WASHER | F00103- | |
| 6 | 22M-43-21250 | GROMMET | F00103- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc50mr 2 s/n f00103 up
- Control system and revolving frame
- L.h. ppc valve support (canopy)
Поиск по каталогу

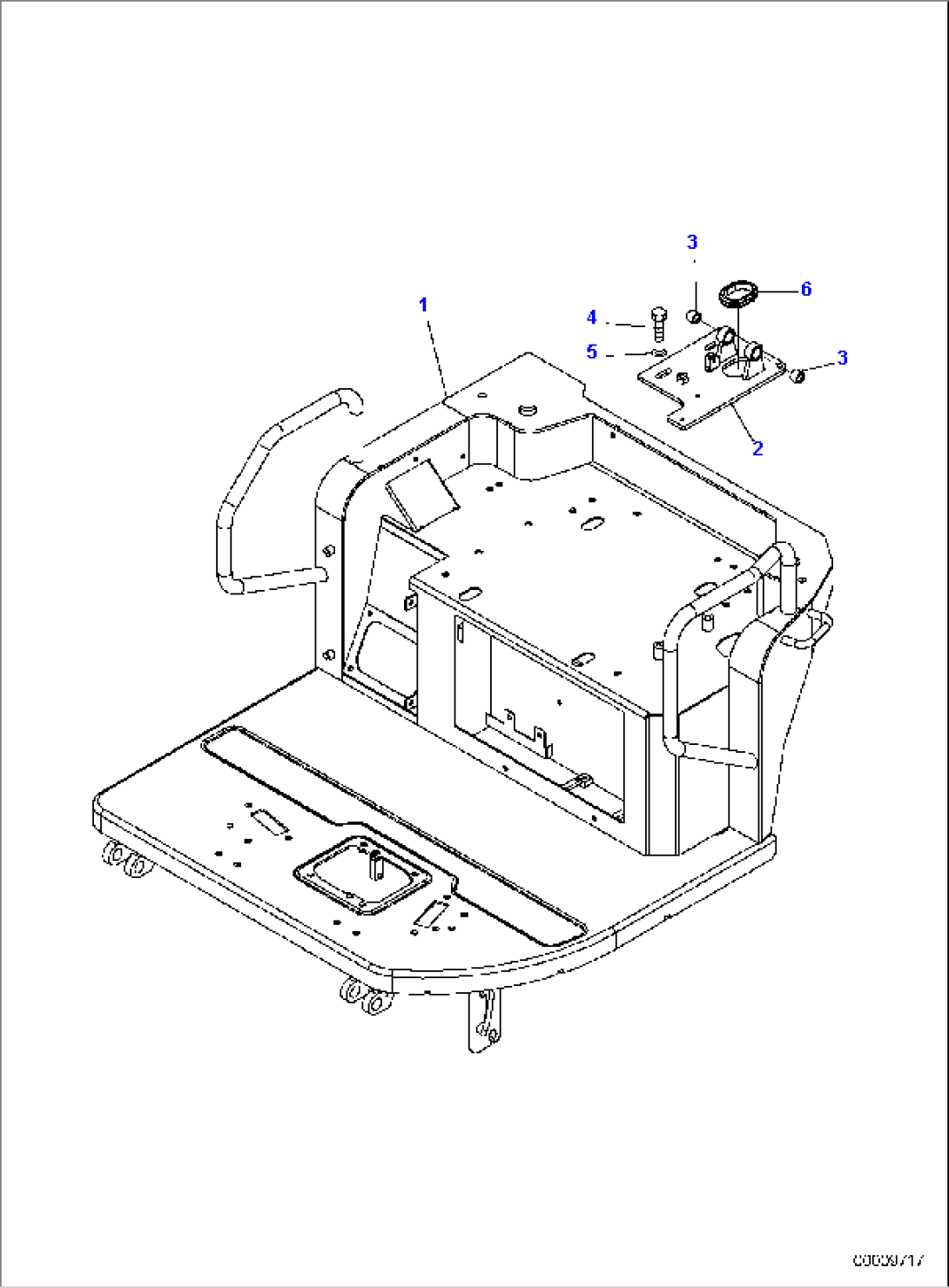

L.H. PPC VALVE SUPPORT (CANOPY)
