| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 3F0577065 | HOSE | F22426- | |
| 2 | 3F0577067 | HOSE | F22426- | |
| 3 | 852951223 | PROTECTION | F22426- | |
| 4 | 3F0565064 | ELBOW | F22426- | |
| 5 | 855051111 | O-RING | F22426- | |
| 6 | 3F0549605 | PROTECTION | F22426- | |
| SEE FIG. 6230 |
Поиск по каталогу

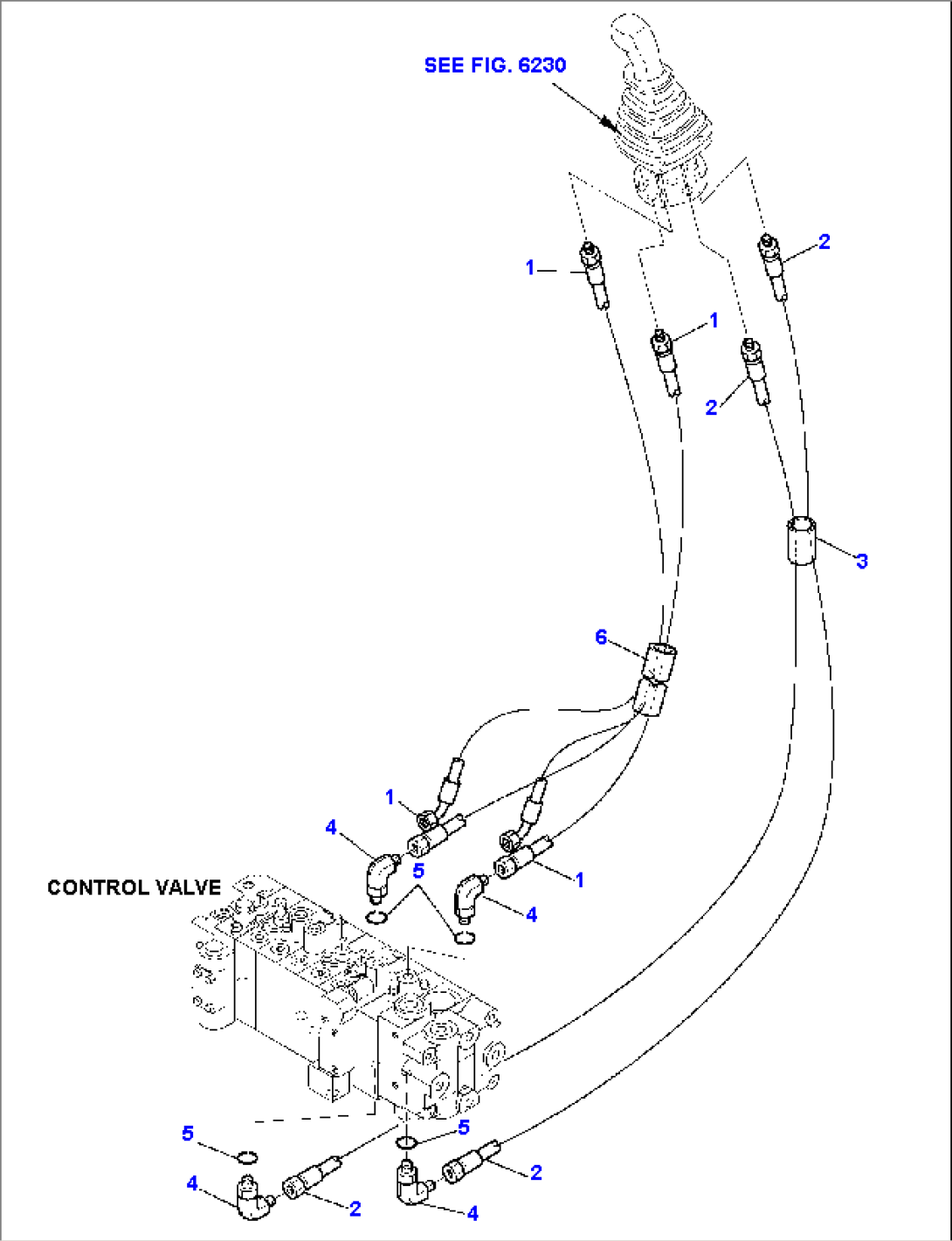

L.H. SERVOCONTROL
