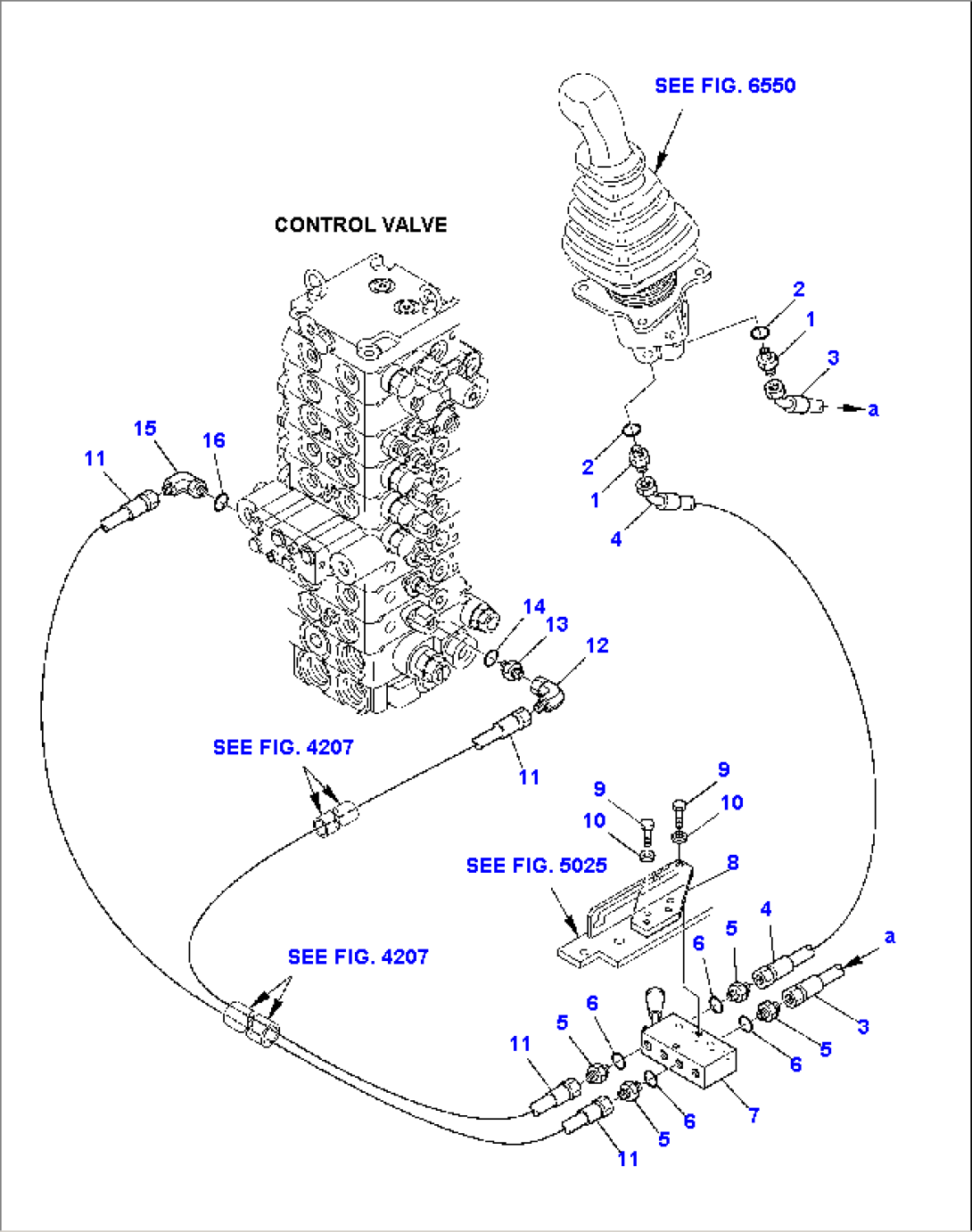

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 3F3077053 | UNION | F21251-F21544 | |
| 2 | 855051111 | O-RING | F21251-F21544 | |
| 3 | 392363077 | HOSE | F21251-F21544 | |
| 4 | 392363078 | HOSE | F21251-F21544 | |
| 5 | 500351751 | UNION | F21251-F21544 | |
| 6 | 855051111 | O-RING | F21251-F21544 | |
| 7 | (868000011) | VALVE, ASSY. | F21251-F21544 | |
| 8 | 3F3077604 | PLATE | F21251-F21544 | |
| 9 | 801015087 | BOLT | F21251-F21544 | |
| 10 | 802170001 | SPRING WASHER | F21251-F21544 | |
| 11 | 392363073 | HOSE | F21251-F21544 | |
| 12 | 500355602 | ELBOW | F21251-F21544 | |
| 13 | 3F0565070 | UNION | F21251-F21544 | |
| 14 | 855051111 | O-RING | F21251-F21544 | |
| 15 | 3F0565064 | ELBOW | F21251-F21544 | |
| 16 | 855051111 | O-RING | F21251-F21544 | |
| SEE FIG. 6550 | ||||
| SEE FIG. 4207 | ||||
| SEE FIG. 5025 |
