| Item | Part No. | Part Name | Qty | Serial No. |

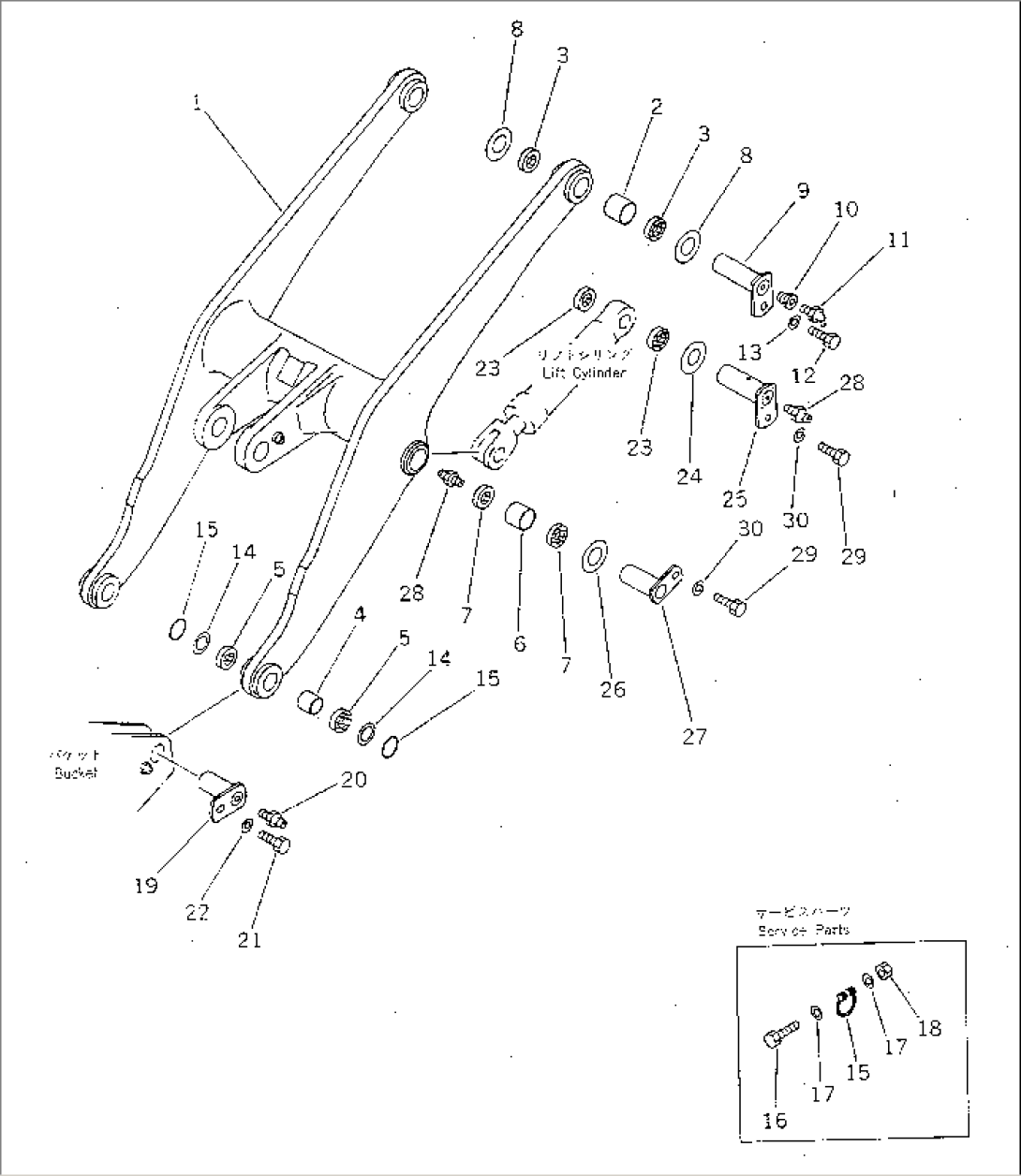

| 421-70-00070 | LIFT ARM ASS'Y | A30501- | ||
| 1 | \6\ | ARM,LIFT | A30501- | |
| 2 | 421-70-11261 | BUSHING | A30501- | |
| 3 | 421-09-11320 | SEAL,DUST | A30501- | |
| 4 | 421-70-11241 | BUSHING | A30501- | |
| 5 | 421-09-11310 | SEAL,DUST | A30501- | |
| 6 | 421-70-11381 | BUSHING | A30501- | |
| 7 | 421-09-11320 | SEAL,DUST | A30501- | |
| 8 | 421-70-11470 | SHIM, 1.5MM | A30501- | |
| 8 | 421-70-11480 | SHIM, 3.0MM | A30501- | |
| 9 | 421-70-11950 | PIN | A30501- | |
| 10 | 423-70-11160 | NIPPLE | A30501- | |
| 11 | 07020-00675 | FITTING,GREASE | A30501- | |
| 12 | 01010-51630 | BOLT | A30501- | |
| 13 | 421-70-11280 | WASHER | A30501- | |
| 14 | 421-70-11430 | SHIM, 1.5MM | A30501- | |
| 14 | 421-70-11440 | SHIM, 3.0MM | A30501- | |
| 15 | \6\ | O-RING | A30501- | |
| 15 | 421-70-11410 | O-RING,(SERVICE PARTS) | A30501- | |
| 16 | 236-46-13620 | BOLT,(SERVICE PARTS) | A30501- | |
| 17 | 01641-20608 | WASHER,(SERVICE PARTS) | A30501- | |
| 18 | 426-09-11130 | NUT,(SERVICE PARTS) | A30501- | |
| 19 | 421-70-11910 | PIN | A30501- | |
| 20 | 07020-00000 | FITTING,GREASE | A30501- | |
| 21 | 01010-51630 | BOLT | A30501- | |
| 22 | 421-70-11280 | WASHER | A30501- | |
| 23 | 421-09-11320 | SEAL,DUST | A30501- | |
| 24 | 421-70-11470 | SHIM, 1.5MM | A30501- | |
| 24 | 421-70-11480 | SHIM, 3.0MM | A30501- | |
| 25 | 421-70-11980 | PIN | A30501- | |
| 26 | 425-70-11380 | SHIM, 1.5MM | A30501- | |
| 27 | 421-70-11970 | PIN | A30501- | |
| 28 | 07020-00000 | FITTING,GREASE | A30501- | |
| 29 | 01010-51630 | BOLT | A30501- | |
| 30 | 421-70-11280 | WASHER | A30501- |
