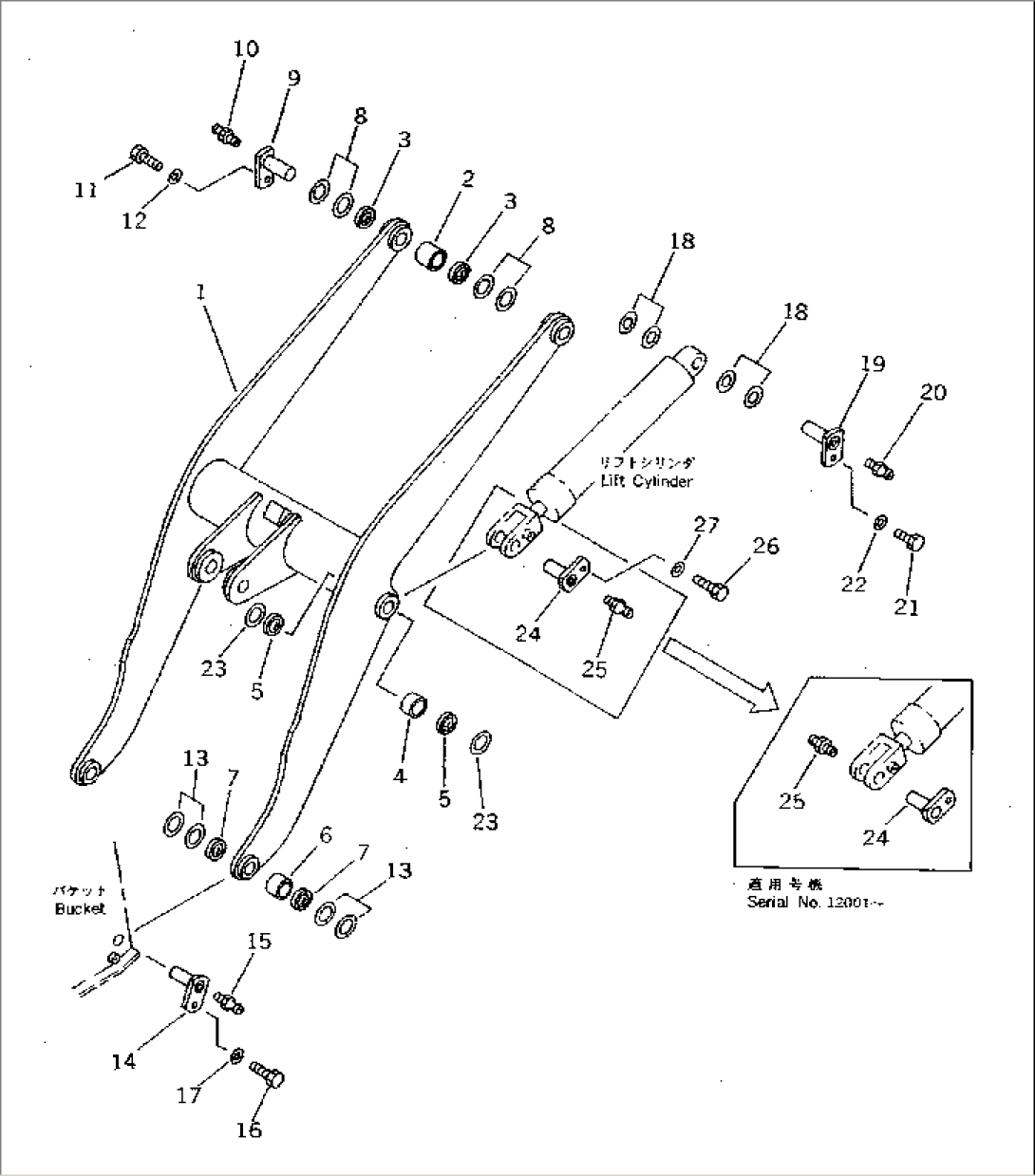

| Item | Part No. | Part Name | Qty | Serial No. |
| 415-70-00010 | LIFT ARM ASS'Y | 10001- | ||
| 415-850-0010 | LIFT ARM ASS'Y,(HIGH LIFT) | 10001- | ||
| 1 | \6\ | ARM,LIFT | 10001- | |
| 1 | \6\ | ARM,LIFT (HIGH LIFT) | 10001- | |
| 2 | 415-70-11890 | BUSHING | 10001- | |
| 3 | 07145-00045 | SEAL,DUST | 10001- | |
| 4 | 415-70-11810 | BUSHING | 10001- | |
| 5 | 07145-00045 | SEAL,DUST | 10001- | |
| 6 | 415-70-11810 | BUSHING | 10001- | |
| 7 | 07145-00045 | SEAL,DUST | 10001- | |
| 8 | 20T-70-19130 | SPACER, 1.0MM | 10001- | |
| 9 | 415-70-11980 | PIN | 10001- | |
| 10 | 07020-00000 | FITTING,GREASE | 10001- | |
| 11 | 01010-81220 | BOLT | 10001- | |
| 12 | 175-54-34170 | WASHER | 10001- | |
| 13 | 20T-70-19130 | SPACER, 1.0MM | 10001- | |
| 14 | 415-70-11910 | PIN | 10001- | |
| 15 | 07020-00000 | FITTING,GREASE | 10001- | |
| 16 | 01010-81220 | BOLT | 10001- | |
| 17 | 175-54-34170 | WASHER | 10001- | |
| 18 | 20T-70-19130 | SPACER, 1.0MM | 10001- | |
| 19 | 415-70-11880 | PIN | 12001- | |
| 19 | 415-70-11980 | PIN | 10001-11999 | |
| 20 | 07020-00000 | FITTING,GREASE | 10001- | |
| 21 | 01010-81220 | BOLT | 10001- | |
| 22 | 175-54-34170 | WASHER | 10001- | |
| 23 | 20T-70-19130 | SPACER, 1.0MM | 10001- | |
| 24 | 415-70-11990 | PIN | 12001- | |
| 24 | 415-70-11931 | PIN | 10001-11999 | |
| 25 | 07020-00000 | FITTING,GREASE | 12001- | |
| 25 | 02730-00245 | FITTING,GREASE | 10001-11999 | |
| 26 | 01010-81220 | BOLT | 10001- | |
| 27 | 175-54-34170 | WASHER | 10001- |
