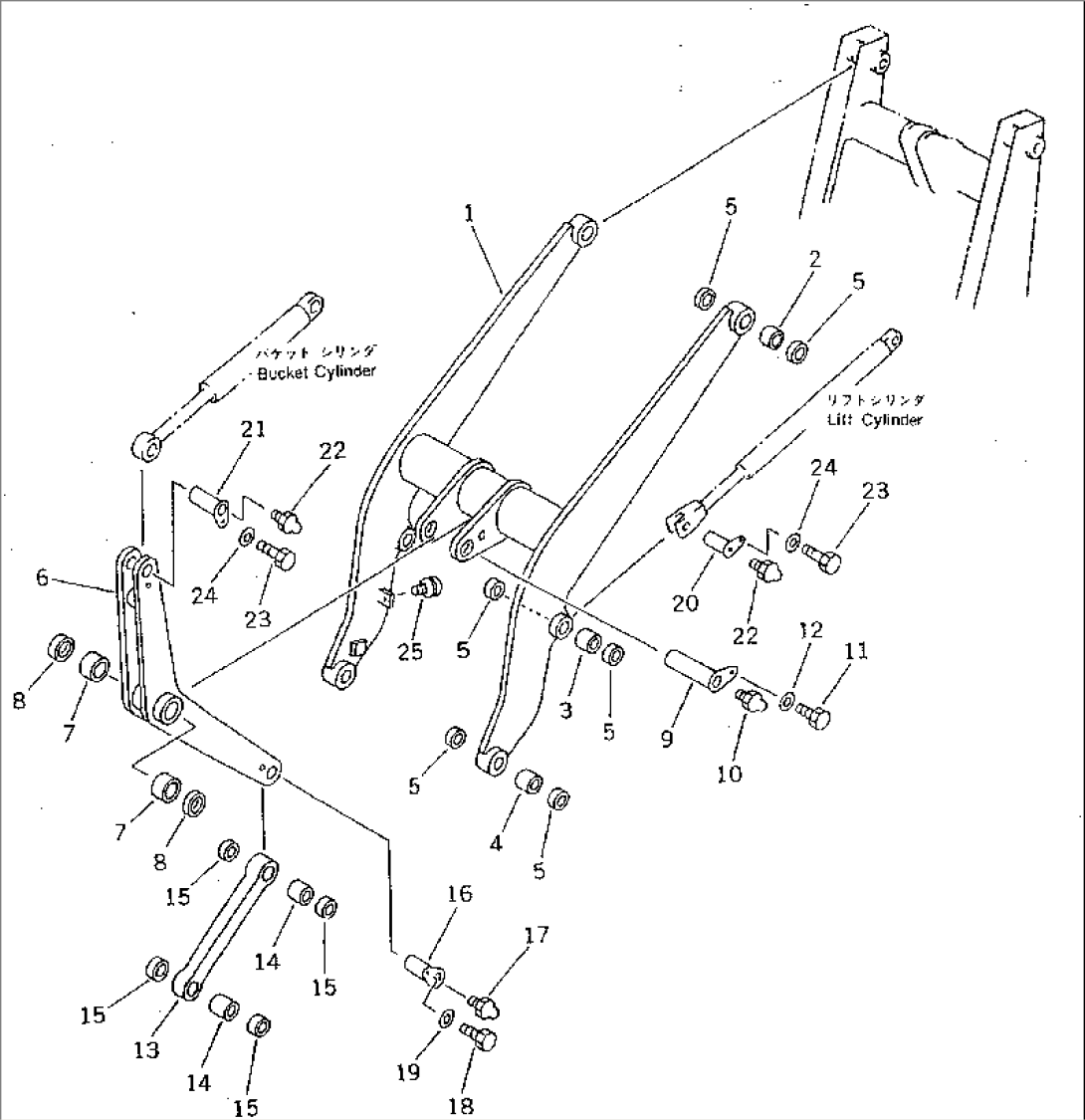

| Item | Part No. | Part Name | Qty | Serial No. |
| FF7822-70200 | ARM ASS'Y | 3001- | ||
| 1 | \6\ | ARM | 3001- | |
| 2 | 07143-10303 | BUSHING | 3001- | |
| 3 | 361-70-11260 | BUSHING | 3001- | |
| 4 | 07143-10302 | BUSHING | 3001- | |
| 5 | 07145-00030 | SEAL,DUST | 3001- | |
| FF7822-70300 | LEVER ASS'Y | 3001- | ||
| 6 | \6\ | LEVER | 3001- | |
| 7 | 07143-10403 | BUSHING | 3001- | |
| 8 | 07145-00045 | SEAL,DUST | 3001- | |
| 9 | FF7822-70540 | PIN | 3001- | |
| 10 | 07020-00000 | FITTING,GREASE | 3001- | |
| 11 | 01010-51225 | BOLT | 3001- | |
| 12 | 01643-31232 | WASHER | 3001- | |
| FF7822-70400 | ROD ASS'Y | 3001- | ||
| 13 | \6\ | ROD | 3001- | |
| 14 | 07143-10303 | BUSHING | 3001- | |
| 15 | 07145-00030 | SEAL,DUST | 3001- | |
| 16 | FF7822-70530 | PIN | 3001- | |
| 17 | 07020-00000 | FITTING,GREASE | 3001- | |
| 18 | 01010-51020 | BOLT | 3001- | |
| 19 | 01643-31032 | WASHER | 3001- | |
| 20 | FF7830-70520 | PIN | 3001- | |
| 21 | FF7822-70530 | PIN | 3001- | |
| 22 | 07020-00000 | FITTING,GREASE | 3001- | |
| 23 | 01010-51020 | BOLT | 3001- | |
| 24 | 01643-31032 | WASHER | 3001- | |
| 25 | FF7830-70250 | STOPPER | 3001- |
