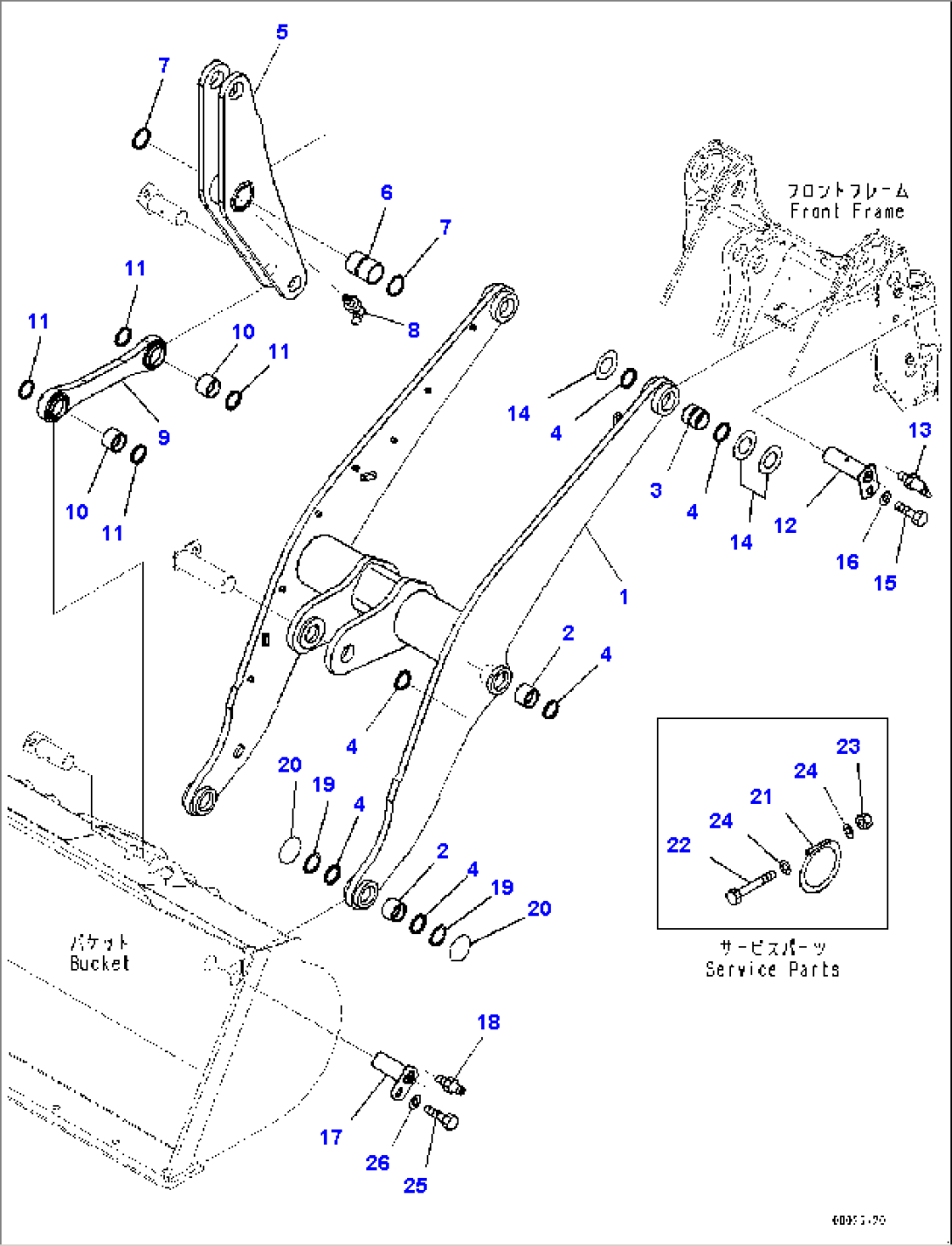

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-V88-3721 | Boom Assembly, L=2585mm | 75053-75784 | ||
| 1 | Boom | 75053-75784 | ||
| 2 | 419-70-11871 | Bushing | 75053-75784 | |
| 3 | 419-70-11820 | Bushing | 75053-75784 | |
| 4 | 419-09-11110 | Seal, Dust | 75053-75784 | |
| 418-70-31201 | Bell Crank Assembly | 75476-75784 | ||
| 418-70-31200 | Bell Crank Assembly | 75053-75475 | ||
| 5 | Bell Crank | 75476-75784 | ||
| 5 | Bell Crank | 75053-75475 | ||
| 6 | 418-70-31820 | Bushing | 75053-75784 | |
| 7 | 424-09-12320 | Seal, Dust | 75053-75784 | |
| 8 | 07020-00675 | Fitting, Grease | 75053-75784 | |
| 418-70-31300 | Link Assembly | 75053-75784 | ||
| 9 | Link | 75053-75784 | ||
| 10 | 419-70-11871 | Bushing | 75053-75784 | |
| 11 | 419-09-11110 | Seal, Dust | 75053-75784 | |
| 12 | 418-70-31710 | Pin | 75053-75784 | |
| 13 | 07020-00675 | Fitting, Grease | 75053-75784 | |
| 14 | 418-70-11450 | Shim, T=1.5mm | 75053-75784 | |
| 14 | 418-70-11460 | Shim, T=3.0mm | 75053-75784 | |
| 14 | 418-70-11460 | Shim, T=3.0mm | 75053-75784 | |
| 14 | 21W-70-35220 | Shim, T=1.0mm | 75053-75784 | |
| 15 | 01010-81625 | Bolt | 75053-75784 | |
| 16 | 421-70-11280 | Washer | 75053-75784 | |
| 17 | 418-70-31720 | Pin | 75053-75784 | |
| 18 | 07020-00000 | Fitting, Grease | 75053-75784 | |
| 19 | 419-70-11420 | Shim, T=1.5mm | 75053-75784 | |
| 20 | O-ring | 75053-75784 | ||
| 21 | 419-70-11410 | O-ring | 75053-75784 | |
| 22 | 419-70-11490 | Bolt | 75053-75784 | |
| 23 | 01596-00606 | Nut | 75053-75784 | |
| 24 | 01641-20608 | Washer | 75053-75784 | |
| 25 | 01010-81625 | Bolt | 75053-75784 | |
| 26 | 421-70-11280 | Washer | 75053-75784 |
