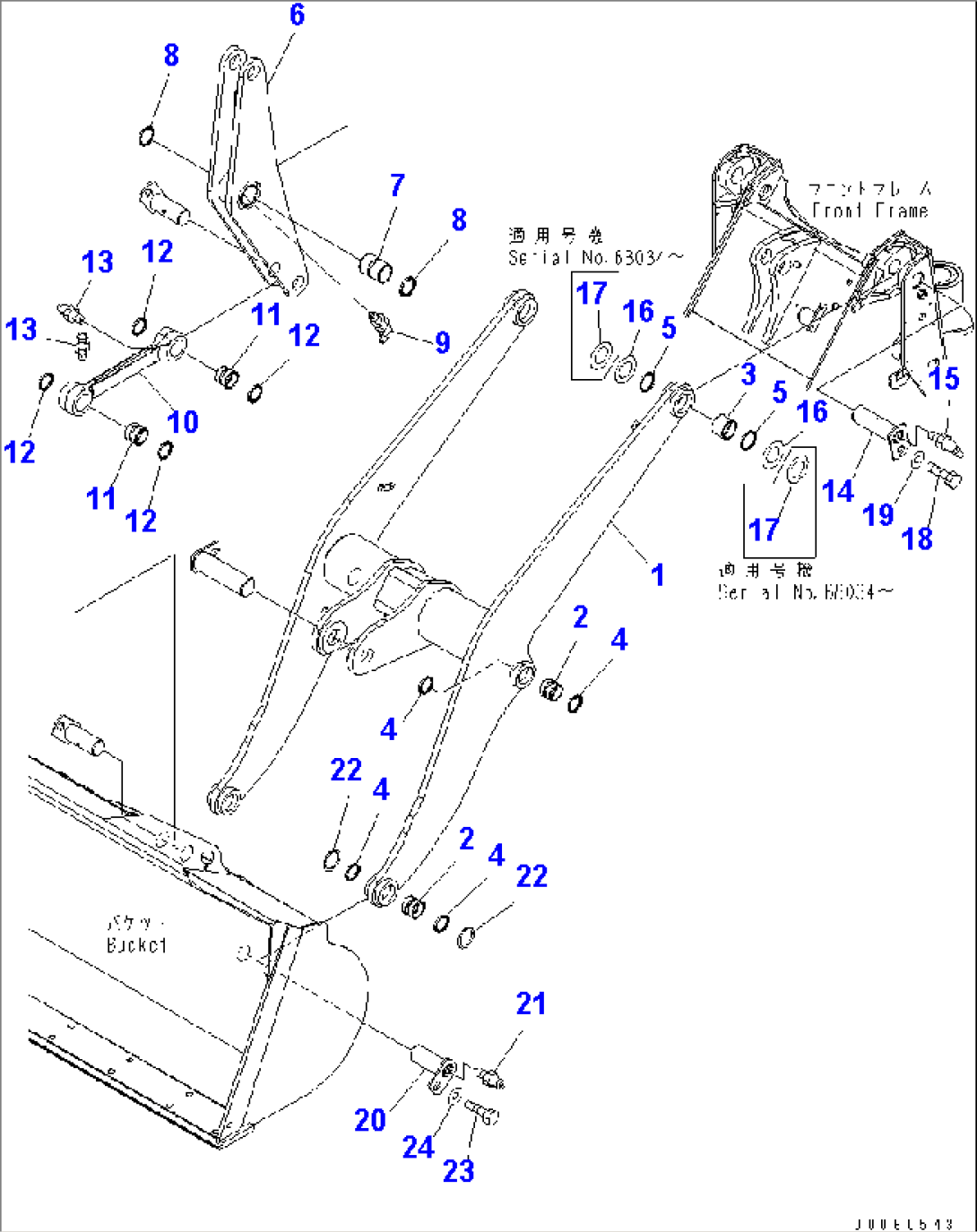

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-850-3110 | BOOM ASS'Y | 65001-@ | ||
| 1 | \6\ | BOOM ASS'Y | 65001-@ | |
| 2 | 417-70-11860 | BUSHING | 65001-@ | |
| 3 | 419-70-11871 | BUSHING | 65001-@ | |
| 4 | 417-09-11120 | SEAL,DUST | 65001-@ | |
| 5 | 419-09-11110 | SEAL,DUST | 65001-@ | |
| 417-70-31202 | BELL CRANK ASS'Y | 69277-@ | ||
| 417-70-31201 | BELL CRANK ASS'Y | 65001-69276 | ||
| 6 | \6\ | BELL CRANK ASS'Y | 69277-@ | |
| 6 | \6\ | BELL CRANK ASS'Y | 65001-69276 | |
| 7 | 417-70-31820 | BUSHING | 65001-@ | |
| 8 | 419-09-11110 | SEAL,DUST | 65001-@ | |
| 9 | 07020-00675 | FITTING,GREASE | 65001-@ | |
| 417-850-3210 | LINK ASS'Y | 65001-@ | ||
| 10 | \6\ | LINK | 65001-@ | |
| 11 | 417-70-11860 | BUSHING | 65001-@ | |
| 12 | 417-09-11120 | SEAL,DUST | 65001-@ | |
| 13 | 07020-00000 | FITTING | 65001-@ | |
| 14 | 417-70-31710 | PIN | 65001-69293 | |
| 15 | 07020-00675 | FITTING,GREASE | 65001-69293 | |
| 16 | 419-70-11440 | SHIM, 1.5MM | 65001-69293 | |
| 16 | 419-70-11450 | SHIM, 3.0MM | 65001-69293 | |
| 17 | 155-70-12330 | SPACER, 1.0MM | 68034-69293 | |
| 18 | 01010-81625 | BOLT | 65001-69293 | |
| 19 | 421-70-11280 | WASHER | 65001-69293 | |
| 20 | 417-70-31720 | PIN | 65001-69293 | |
| 21 | 07020-00000 | FITTING,GREASE | 65001-69293 | |
| 22 | 417-70-11340 | SHIM, 1.5MM | 65001-69293 | |
| 23 | 01010-81625 | BOLT | 65001-69293 | |
| 24 | 421-70-11280 | WASHER | 65001-69293 |
