| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-T80-3170 | BRACKET | 70001- | |
| 2 | 01010-81020 | BOLT | 70001- | |
| 3 | 01643-31032 | WASHER | 70001- | |
| 4 | 418-T80-3180 | PLATE | 70001- | |
| 5 | 01010-81225 | BOLT | 70001- | |
| 6 | 01643-31232 | WASHER | 70001- | |
| 7 | 56B-06-15610 | SWITCH | 70001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 5 s/n 70001 up (parallel linkage spec.)
- Work equipment
- Lift arm and bell crank (boom sensor)
Поиск по каталогу

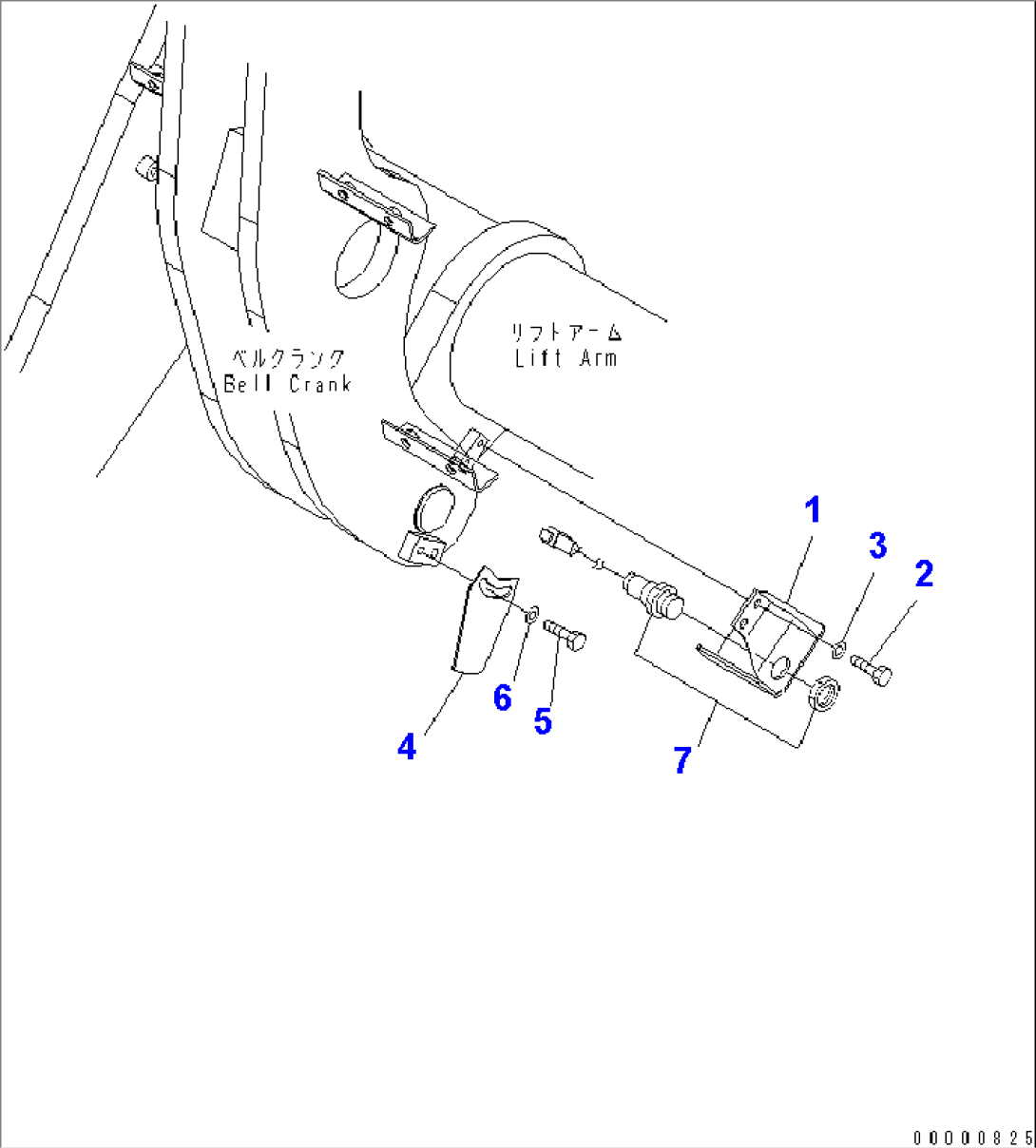

LIFT ARM AND BELL CRANK (BOOM SENSOR)
