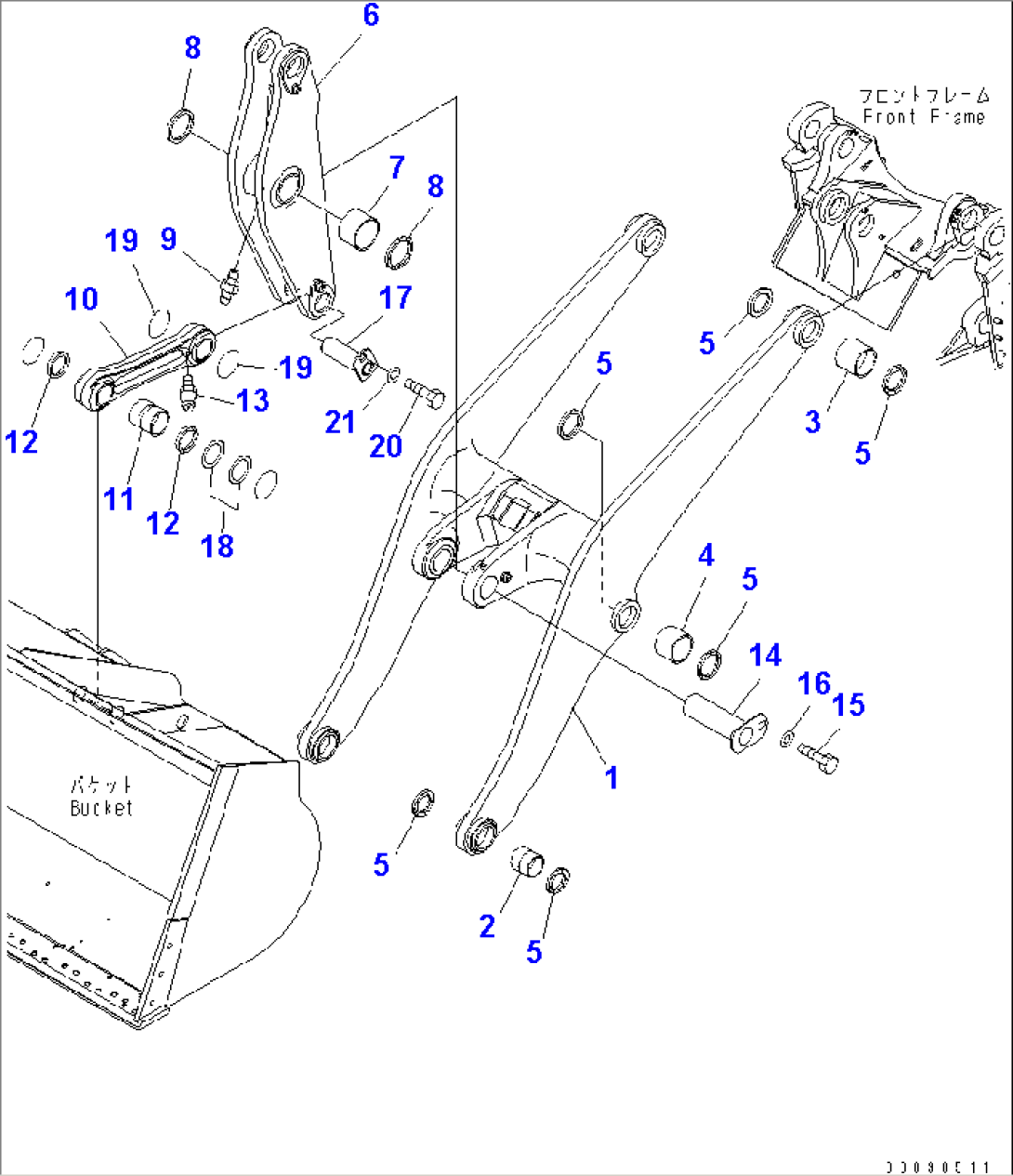

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-70-31301 | BOOM ASS'Y,LIFT | 85001- | ||
| 1 | \6\ | BOOM | 85001- | |
| 2 | 425-70-11820 | BUSHING | 85001- | |
| 3 | 421-70-11261 | BUSHING | 85001- | |
| 4 | 421-70-11381 | BUSHING | 85001- | |
| 5 | 421-09-11320 | SEAL,DUST | 85001- | |
| 421-70-41700 | BELL CRANK ASS'Y | 85001- | ||
| 6 | \6\ | BELL CRANK | 85001- | |
| 7 | 421-70-11272 | BUSHING | 85001- | |
| 8 | 421-09-11330 | SEAL,DUST | 85001-@ | |
| 9 | 07020-00000 | FITTING,GREASE | 85001-@ | |
| 421-70-31902 | LINK ASS'Y | 85001-@ | ||
| 10 | \6\ | LINK | 85001-@ | |
| 11 | 425-70-11820 | BUSHING | 85001- | |
| 12 | 421-09-11320 | SEAL,DUST | 85001- | |
| 13 | 07020-00000 | FITTING,GREASE | 85001- | |
| 14 | 421-70-31960 | PIN | 90120- | |
| 15 | 01010-81630 | BOLT | 90120- | |
| 16 | 421-70-11280 | WASHER | 90120- | |
| 17 | 421-70-41930 | PIN | 90120- | |
| 18 | 421-70-41380 | SHIM, T=1.0 | 90120- | |
| 19 | 425-70-12530 | O-RING | 90120- | |
| 20 | 01010-81630 | BOLT | 90120- | |
| 21 | 421-70-11280 | WASHER | 90120- |
