| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-43-19131 | PLATE | 54001- | |
| 2 | 01435-01225 | BOLT | 54001- | |
| 3 | 421-43-19140 | PLATE | 54001- | |
| 4 | 01435-01225 | BOLT | 54001- | |
| 5 | 08053-01510 | CLIP | 54001- | |
| 6 | 01435-01016 | BOLT | 54001- | |
| 7 | 363-06-31121 | SWITCH | 54001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Work equipment
- Lift arm and bellcrank (boom kick out)(#54001 )
Поиск по каталогу

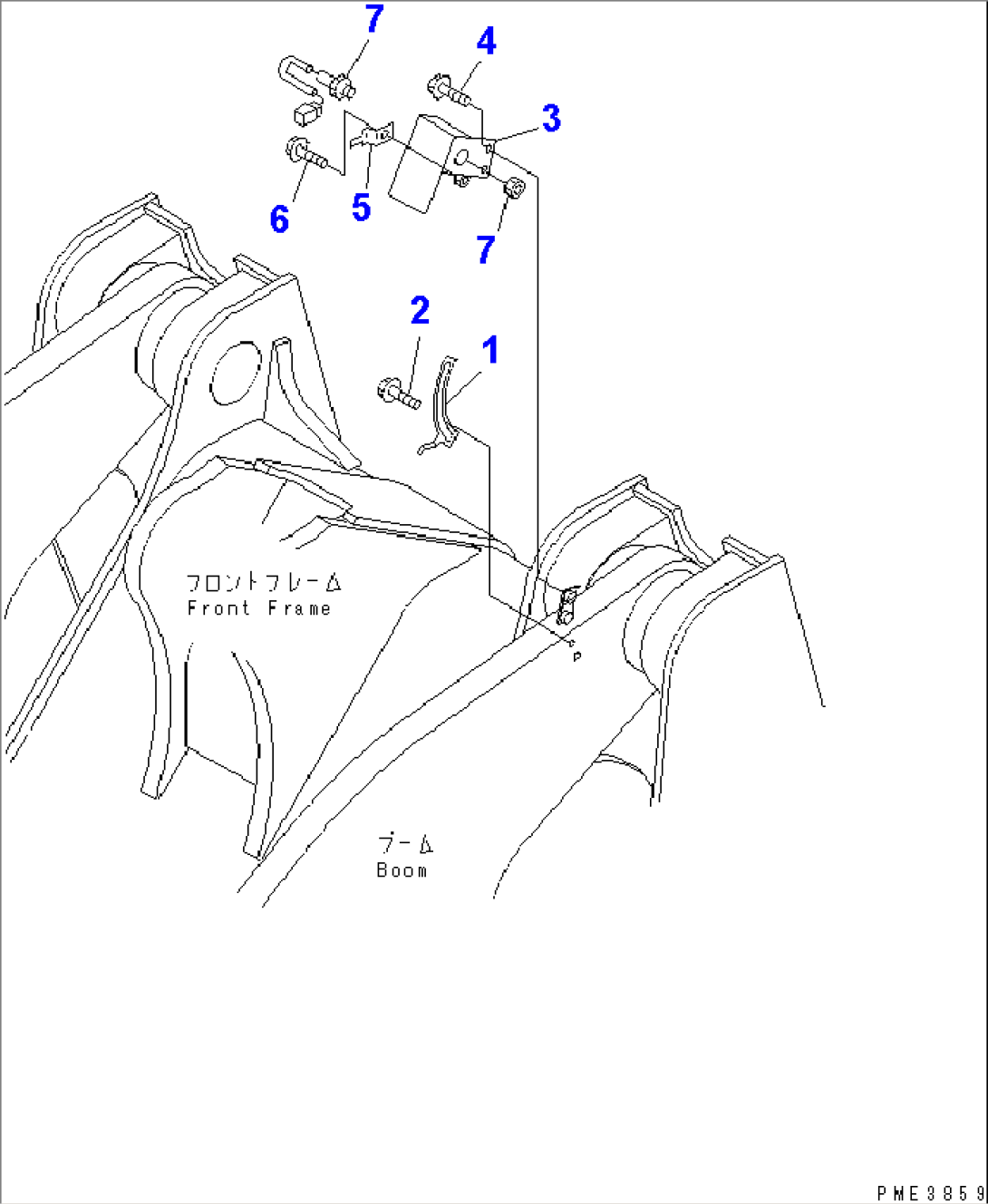

LIFT ARM AND BELLCRANK (BOOM KICK OUT)(#54001-)
