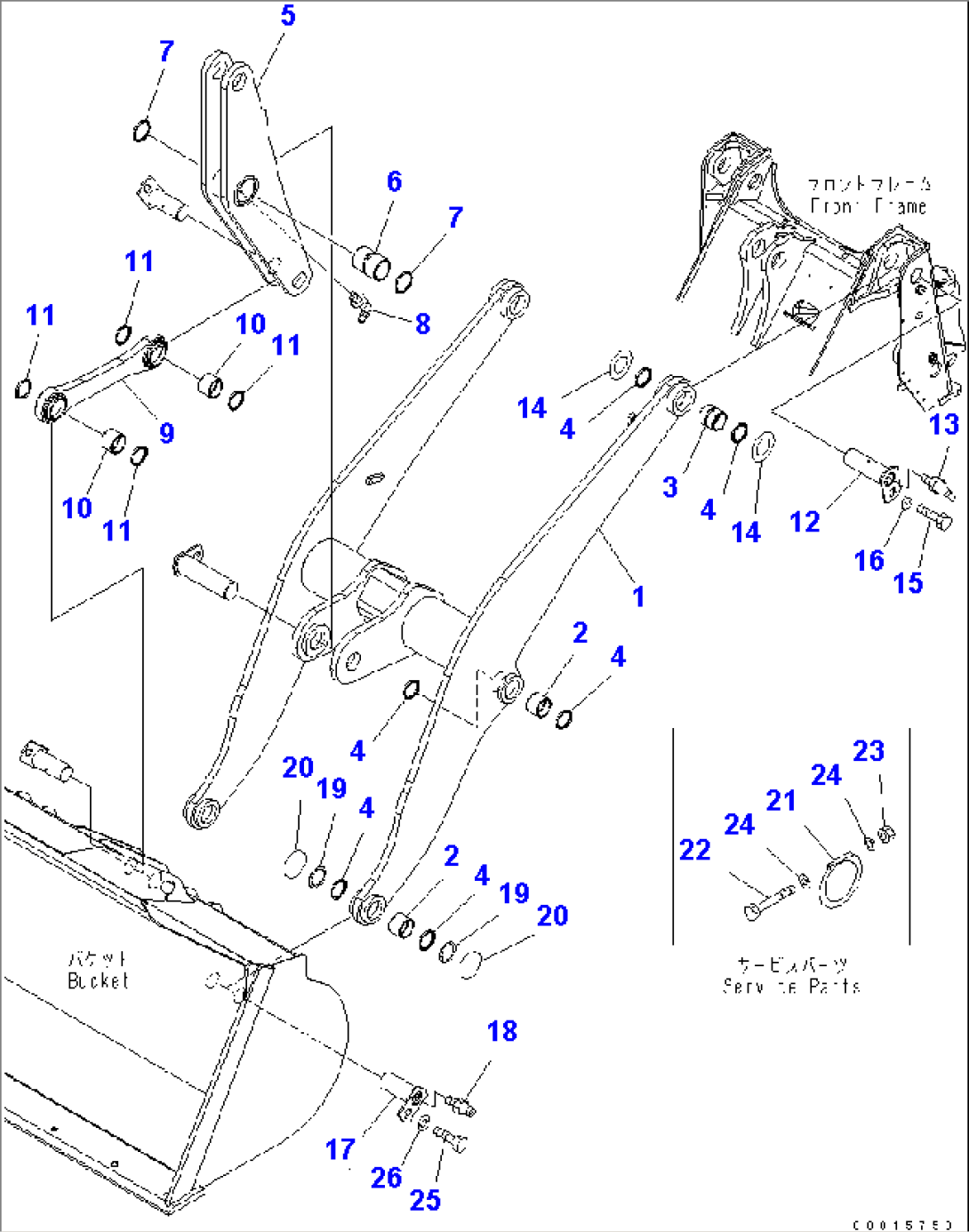

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-877-3370 | BOOM ASS'Y | 75001- | ||
| 1 | \6\ | BOOM | 75001- | |
| 2 | 419-70-11871 | BUSHING | 75001- | |
| 3 | 419-70-11820 | BUSHING | 75001- | |
| 4 | 419-09-11110 | SEAL,DUST | 75001- | |
| 418-70-31201 | BELL CRANK ASS'Y | 75476- | ||
| \0\418-70-31200 | BELL CRANK ASS'Y | 75001-75475 | ||
| 5 | \6\ | BELL CRANK | 75001- | |
| 6 | 418-70-31820 | BUSHING | 75001- | |
| 7 | 424-09-12320 | SEAL,DUST | 75001- | |
| 8 | 07020-00675 | FITTING,GREASE | 75001- | |
| 418-70-31300 | LINK ASS'Y | 75001- | ||
| 9 | \6\ | LINK | 75001- | |
| 10 | 419-70-11871 | BUSHING | 75001- | |
| 11 | 419-09-11110 | SEAL,DUST | 75001- | |
| 12 | 418-70-31710 | PIN | 75001- | |
| 13 | 07020-00675 | FITTING,GREASE | 75001- | |
| 14 | 418-70-11450 | SHIM, 1.5MM | 75001- | |
| 14 | 418-70-11460 | SHIM, 3.0MM | 75001- | |
| 14 | 21W-70-35220 | SHIM, 1.0MM | 75001- | |
| 15 | 01010-81625 | BOLT | 75001- | |
| 16 | 421-70-11280 | WASHER | 75001- | |
| 17 | 418-70-31720 | PIN | 75001- | |
| 18 | 07020-00000 | FITTING,GREASE | 75001- | |
| 19 | 419-70-11420 | SHIM, 1.5MM | 75001- | |
| 20 | \6\ | O-RING | 75001- | |
| 21 | 419-70-11410 | O-RING,(SERVICE PARTS) | 75001- | |
| 22 | 419-70-11490 | BOLT,(SERVICE PARTS) | 75001- | |
| 23 | 01596-00606 | NUT,(SERVICE PARTS) | 75001- | |
| 24 | 01641-20608 | WASHER,(SERVICE PARTS) | 75001- | |
| 25 | 01010-81625 | BOLT | 75001- | |
| 26 | 421-70-11280 | WASHER | 75001- |
