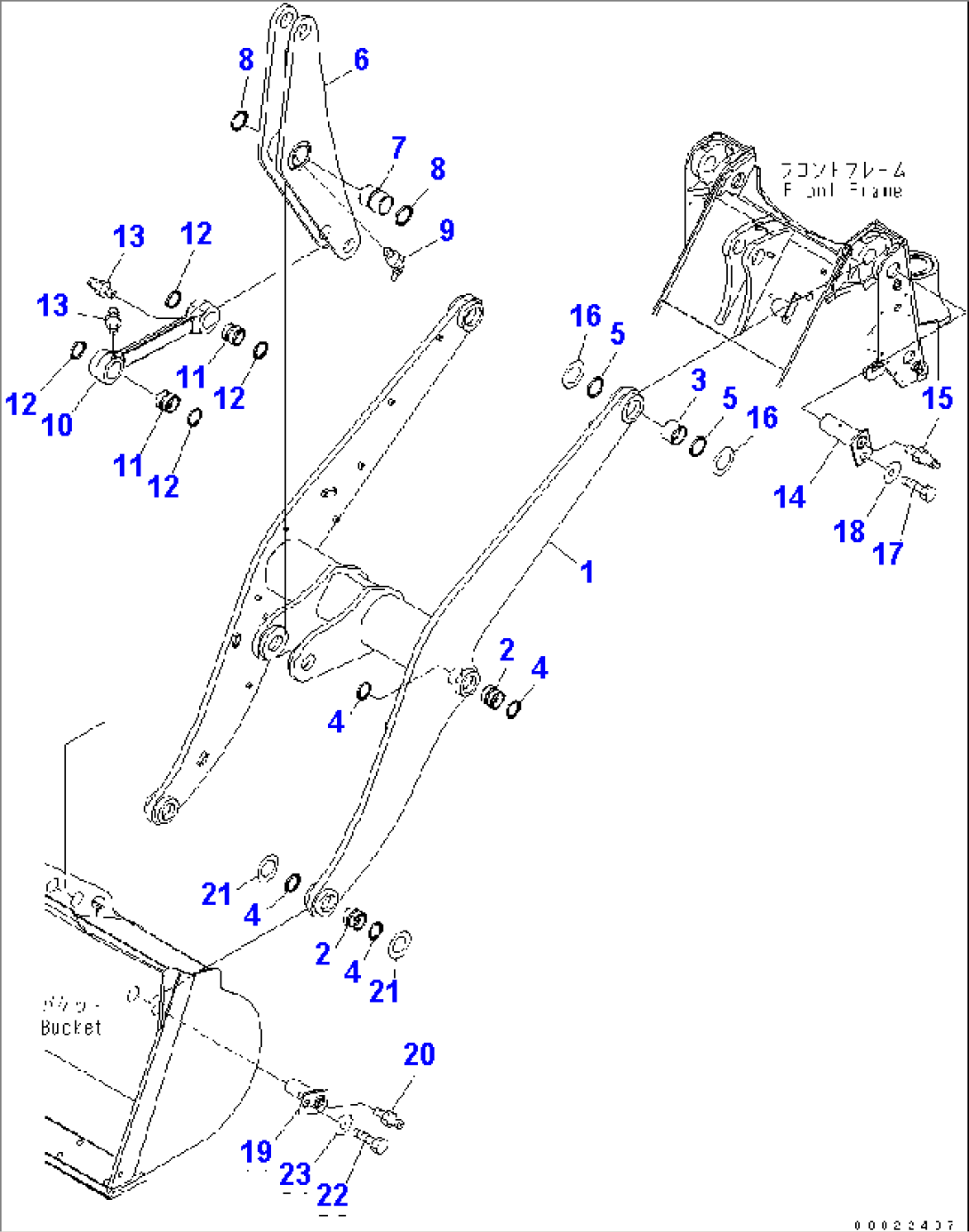

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-V88-3720 | BOOM ASS'Y | 65001- | ||
| 1 | \6\ | BOOM | 65001- | |
| 2 | 417-70-11860 | BUSHING | 65001- | |
| 3 | 419-70-11871 | BUSHING | 65001- | |
| 4 | 417-09-11120 | SEAL,DUST | 65001- | |
| 5 | 419-09-11110 | SEAL,DUST | 65001- | |
| 417-70-31201 | BELLCRANK ASS'Y | 65001- | ||
| 6 | \6\ | BELLCRANK ASS'Y | 65001- | |
| 7 | 417-70-31820 | BUSHING | 65001- | |
| 8 | 419-09-11110 | SEAL,DUST | 65001- | |
| 9 | 07020-00675 | FITTING,GREASE | 65001- | |
| 417-70-31300 | LINK ASS'Y | 65001- | ||
| 10 | \6\ | LINK | 65001- | |
| 11 | 417-70-11860 | BUSHING | 65001- | |
| 12 | 417-09-11120 | SEAL,DUST | 65001- | |
| 13 | 07020-00000 | FITTING | 65001- | |
| 14 | 417-70-31710 | PIN | 65001- | |
| 15 | 07020-00675 | FITTING,GREASE | 65001- | |
| 16 | 419-70-11440 | SHIM¤ 1.5MM,1.5MM | 65001- | |
| 419-70-11450 | SHIM¤ 3.0MM,3.0MM | 65001- | ||
| 17 | 01010-81625 | BOLT | 65001- | |
| 18 | 421-70-11280 | WASHER | 65001- | |
| 19 | 417-70-31720 | PIN | 65001- | |
| 20 | 07020-00000 | FITTING,GREASE | 65001- | |
| 21 | 417-70-11340 | SHIM¤ 1.5MM,1.5MM | 65001- | |
| 22 | 01010-81625 | BOLT | 65001- | |
| 23 | 421-70-11280 | WASHER | 65001- |
