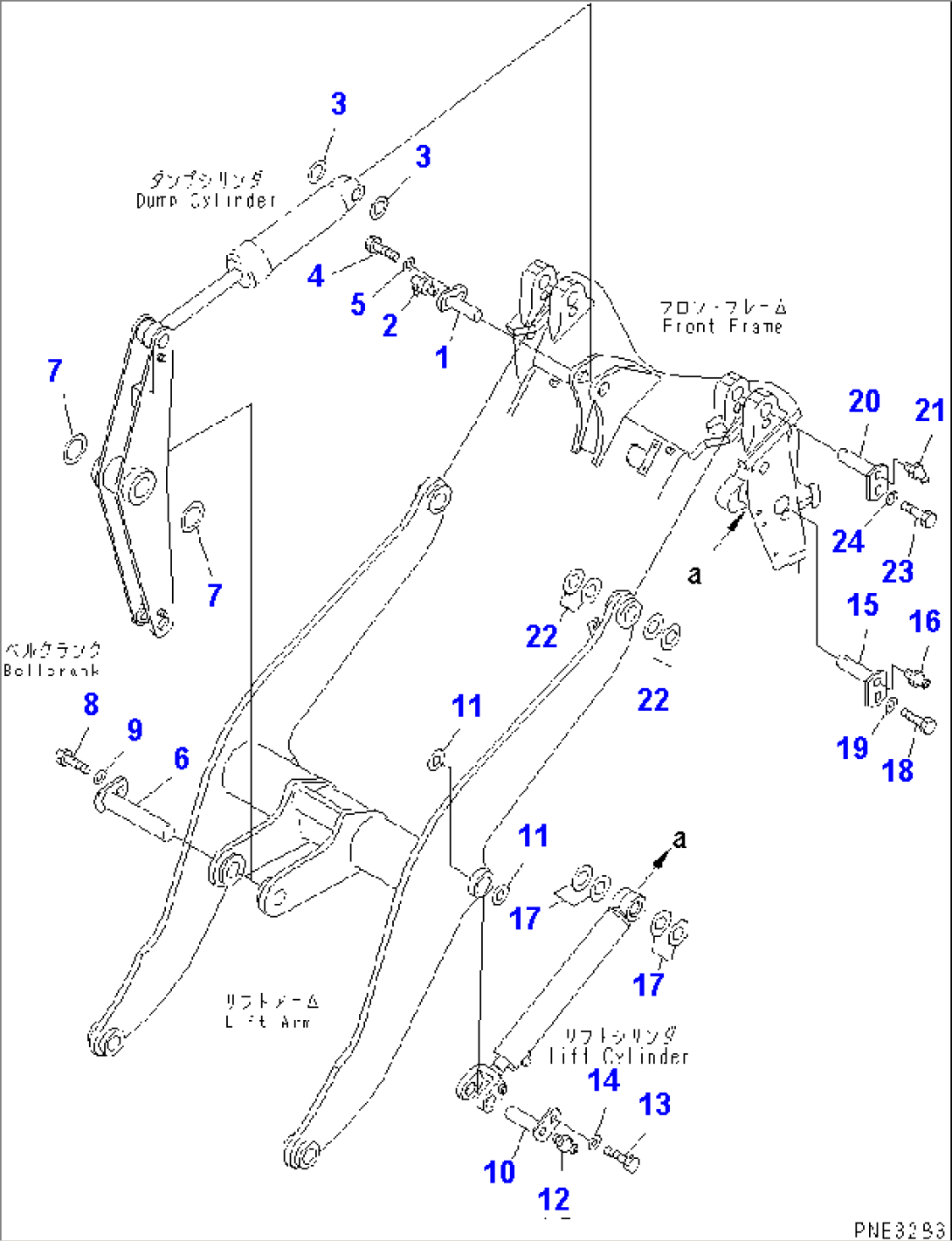

Item | Part No. | Part Name | Qty | Serial No. |
1 | 416-70-11950 | PIN | 63001- | |
2 | 07020-00900 | FITTING,GREASE | 63001- | |
3 | 416-70-11410 | SHIM¤ 1.5MM | 63001- | |
416-70-11420 | SHIM¤ 3.0MM | 63001- | ||
4 | 01010-81220 | BOLT | 63001- | |
5 | 175-54-34170 | WASHER | 63001- | |
6 | 416-70-11960 | PIN | 63001- | |
7 | 417-70-11310 | SHIM¤ 1.5MM | 63001- | |
416-70-11470 | SHIM¤ 0.5MM | 63001- | ||
8 | 01010-81220 | BOLT | 63001- | |
9 | 175-54-34170 | WASHER | 63001- | |
10 | 416-70-11970 | PIN | 63001- | |
11 | 416-70-11450 | SHIM¤ 1.5MM | 63001- | |
12 | 07020-00000 | FITTING,GREASE | 63001- | |
13 | 01010-81220 | BOLT | 63001- | |
14 | 175-54-34170 | WASHER | 63001- | |
15 | 416-70-11980 | PIN | 63001- | |
16 | 07020-00000 | FITTING,GREASE | 63001- | |
17 | 416-70-11430 | SHIM¤ 1.5MM | 63001- | |
416-70-11440 | SHIM¤ 3.0MM | 63001- | ||
18 | 01010-81220 | BOLT | 63001- | |
19 | 175-54-34170 | WASHER | 63001- | |
20 | 416-70-11980 | PIN | 63001- | |
21 | 07020-00675 | FITTING,GREASE | 63001- | |
22 | 416-70-11430 | SHIM¤ 1.5MM | 63001- | |
416-70-11440 | SHIM¤ 3.0MM | 63001- | ||
23 | 01010-81220 | BOLT | 63001- | |
24 | 175-54-34170 | WASHER | 63001- |
