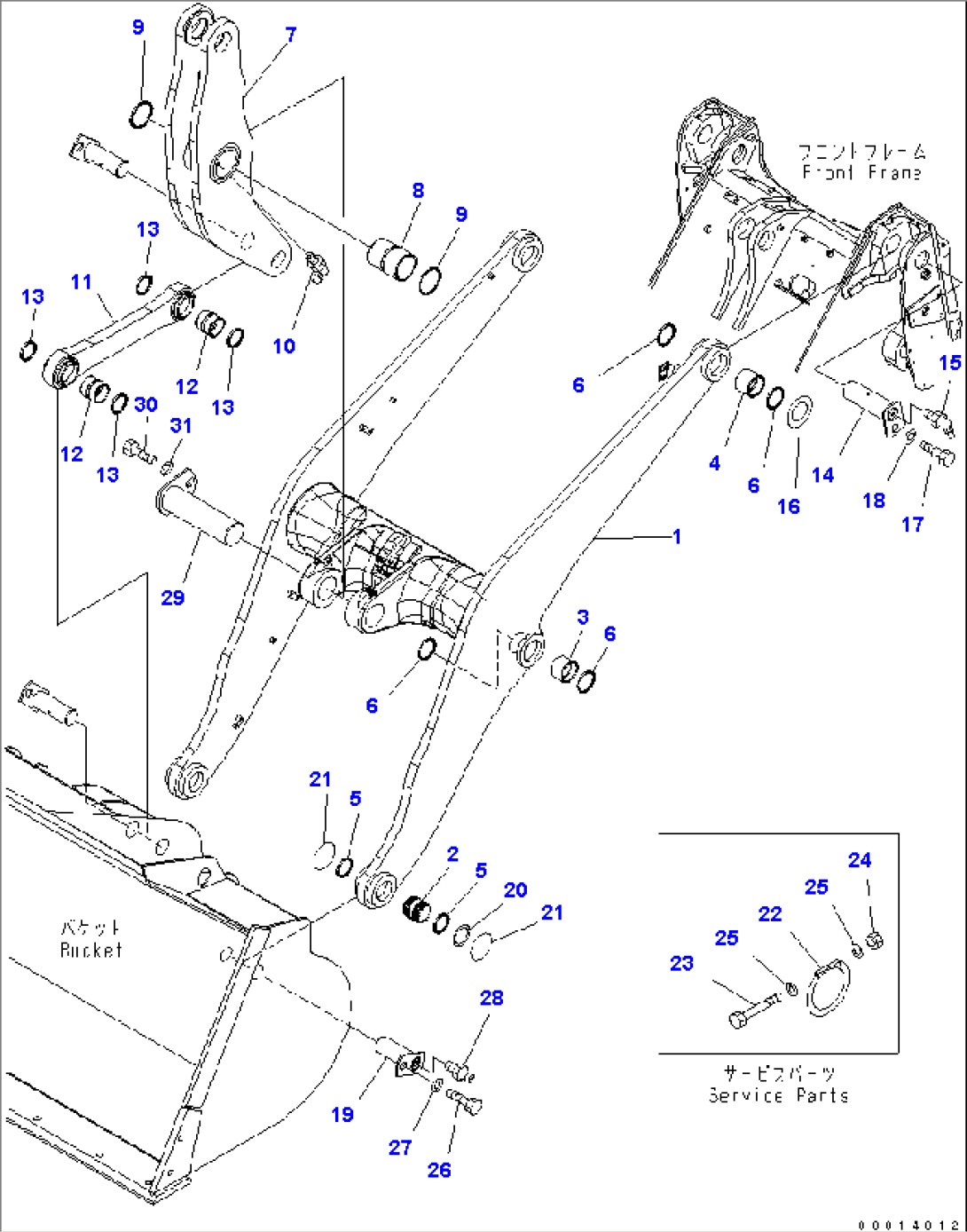

| Item | Part No. | Part Name | Qty | Serial No. |
| 419-70-H1600 | BOOM ASSEMBLY | H50419- | ||
| 419-70-H1220 | BOOM ASSEMBLY | H50415-H50418 | ||
| 419-70-H1600 | BOOM ASSEMBLY | H50414-H50414 | ||
| 419-70-H1220 | BOOM ASSEMBLY | H50051-H50413 | ||
| 1 | \6\ | BOOM REWORK | H50051- | |
| 2 | 419-70-21810 | BUSHING | H50051- | |
| 3 | 419-70-31810 | BUSHING | H50051- | |
| 4 | 419-70-11890 | BUSHING | H50051- | |
| 5 | 419-09-11110 | SEAL, DUST | H50051- | |
| 6 | 424-09-12320 | SEAL, DUST | H50051- | |
| 419-70-H1180 | BELLCRANK ASSEMBLY | H50051- | ||
| 7 | \6\ | BELLCRANK | H50051- | |
| 8 | 419-70-31870 | BUSHING | H50051- | |
| 9 | 421-09-11320 | SEAL, DUST | H50051- | |
| 10 | 07020-00900 | FITTING, GREASE | H50051- | |
| 419-70-31301 | LINK ASSEMBLY | H50051- | ||
| 11 | \6\ | LINK | H50051- | |
| 12 | 419-70-11820 | BUSHING | H50051- | |
| 13 | 419-09-11110 | SEAL, DUST | H50051- | |
| 14 | 419-70-31220 | PIN | H50051- | |
| 15 | 07020-00675 | FITTING, GREASE | H50051- | |
| 16 | 419-70-11460 | SHIM, 1.5MM | H50051- | |
| 16 | 419-70-11470 | SHIM, 3.0MM | H50051- | |
| 16 | 20S-70-21470 | SPACER | H50051- | |
| 17 | 01010-81625 | BOLT | H50051- | |
| 18 | 421-70-11280 | WASHER | H50051- | |
| 19 | 419-70-31921 | PIN | H50051- | |
| 20 | 419-70-11420 | SHIM, 1.5MM | H50051- | |
| 20 | 419-70-11430 | SHIM, 3.0MM | H50051- | |
| 21 | \6\ | O-RING | H50051- | |
| 22 | 419-70-11410 | O-RING | H50051- | |
| 23 | 419-70-11490 | BOLT | H50051- | |
| 24 | 01596-00606 | NUT | H50051- | |
| 25 | 01641-20608 | WASHER | H50051- | |
| 26 | 01010-81625 | BOLT | H50051- | |
| 27 | 421-70-11280 | WASHER | H50051- | |
| 28 | 07020-00000 | FITTING, GREASE | H50051- | |
| 29 | 419-70-31960 | PIN | H50051- | |
| 30 | 01010-81630 | BOLT | H50051- | |
| 31 | 421-70-11280 | WASHER | H50051- |
