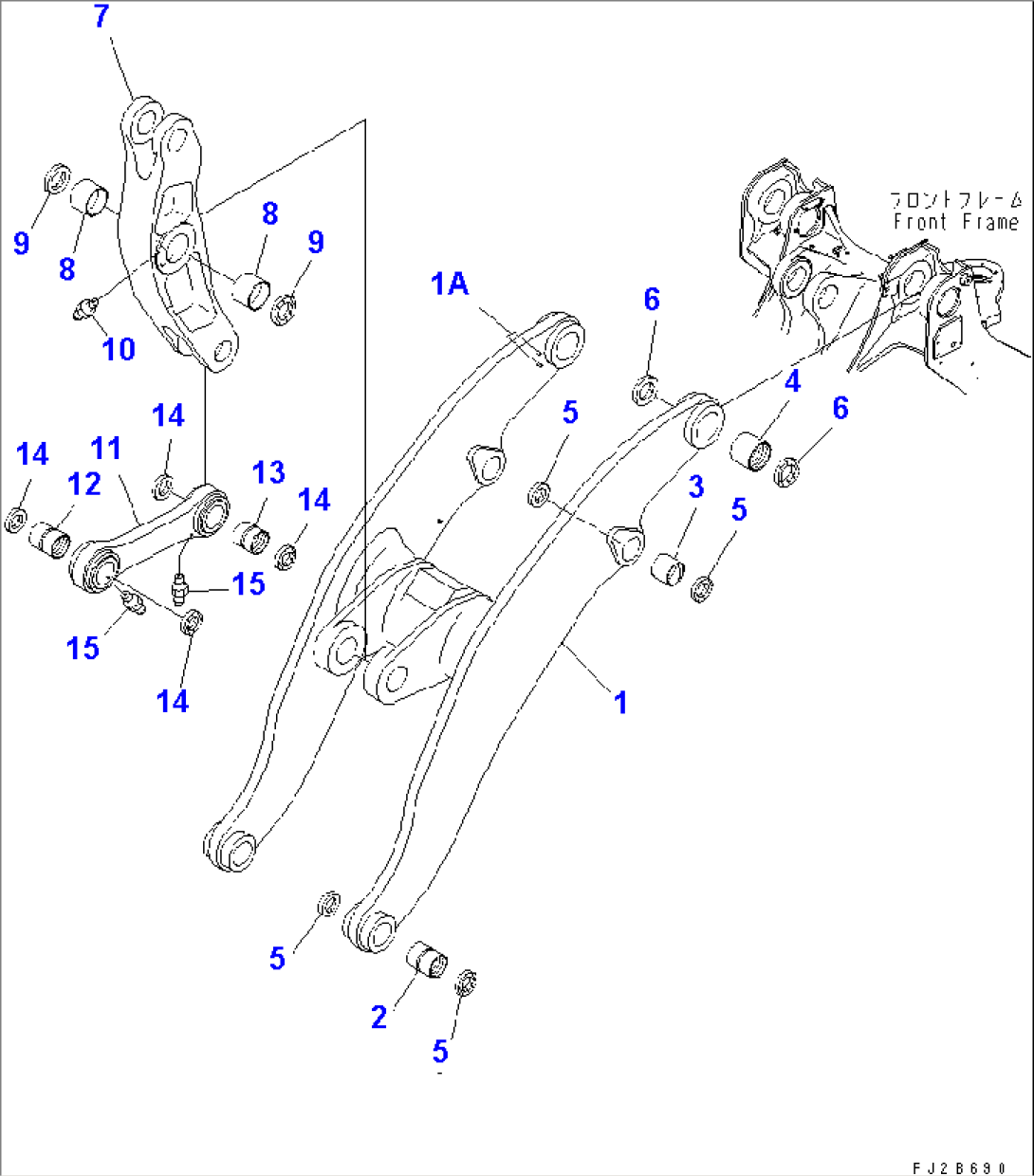

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-U94-2130 | BOOM ASS'Y | 50001- | ||
| 1 | \6\ | BOOM | 50001- | |
| 1A | 419-46-12E30 | SEAT (WELDED) | 50001- | |
| 2 | 427-70-11823 | BUSHING | 50001- | |
| 3 | 428-70-11871 | BUSHING | 50001- | |
| 4 | 428-70-11894 | BUSHING | 50001- | |
| 5 | 426-09-11110 | SEAL,DUST | 50001- | |
| 6 | 427-09-11110 | SEAL,DUST | 50001- | |
| 428-70-00021 | BELLCRANK ASS'Y | 50001- | ||
| 7 | \6\ | BELLCRANK | 50001- | |
| 8 | 428-70-11860 | BUSHING | 50001- | |
| 9 | 427-09-11110 | SEAL,DUST | 50001- | |
| 10 | 07020-00000 | FITTING,GREASE | 50001- | |
| 428-70-00034 | LINK ASS'Y | 50001- | ||
| 11 | \6\ | LINK | 50001- | |
| 12 | 427-70-11823 | BUSHING | 50001- | |
| 13 | 428-70-11832 | BUSHING | 50001- | |
| 14 | 426-09-11110 | SEAL,DUST | 50001- | |
| 15 | 07020-00000 | FITTING,GREASE | 50001- |
