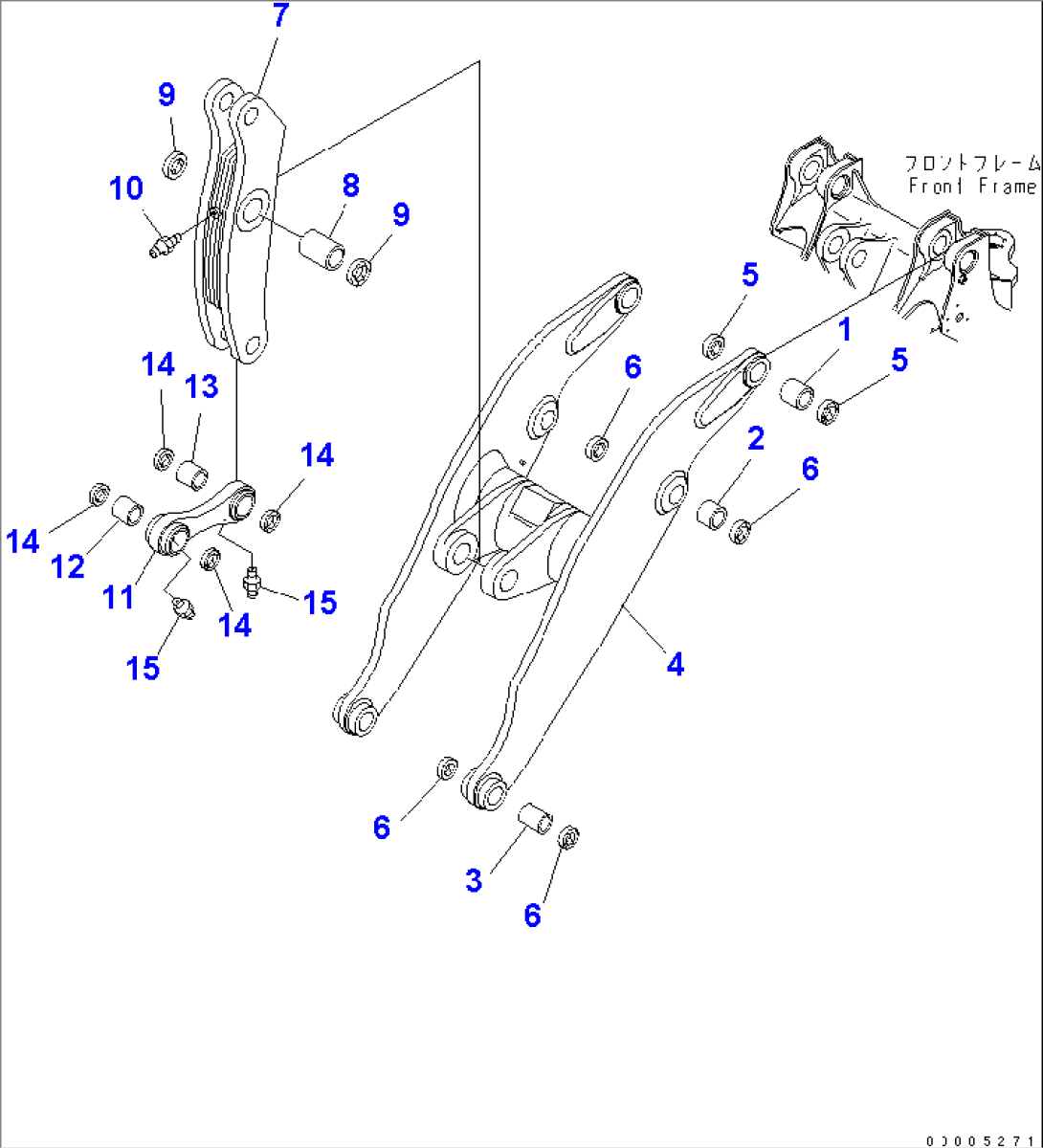

| Item | Part No. | Part Name | Qty | Serial No. |
| 426-857-2100 | BOOM ASS'Y | 50001-@ | ||
| 1 | 426-70-11890 | BUSHING | 50001-@ | |
| 2 | 426-70-11871 | BUSHING | 50001-@ | |
| 3 | 426-70-11710 | BUSHING | 50001-@ | |
| 4 | \6\ | BOOM | 50001-@ | |
| 5 | 425-09-11110 | SEAL,DUST | 50001-@ | |
| 6 | 421-09-11330 | SEAL,DUST | 50001-@ | |
| 426-857-0020 | BELLCRANK ASS'Y | 50001-@ | ||
| 7 | \6\ | BELLCRANK | 50001-@ | |
| 8 | 426-70-11860 | BUSHING | 50001-@ | |
| 9 | 426-09-11110 | SEAL,DUST | 50001-@ | |
| 10 | 07020-00000 | FITTING,GREASE | 50001-@ | |
| 426-857-0034 | LINK ASS'Y | 50001-@ | ||
| 11 | \6\ | LINK | 50001-@ | |
| 12 | 426-70-11720 | BUSHING | 50001-@ | |
| 13 | 426-70-11820 | BUSHING | 50001-@ | |
| 14 | 425-09-11110 | SEAL,DUST | 50001-@ | |
| 15 | 07020-00000 | FITTING,GREASE | 50001-@ |
