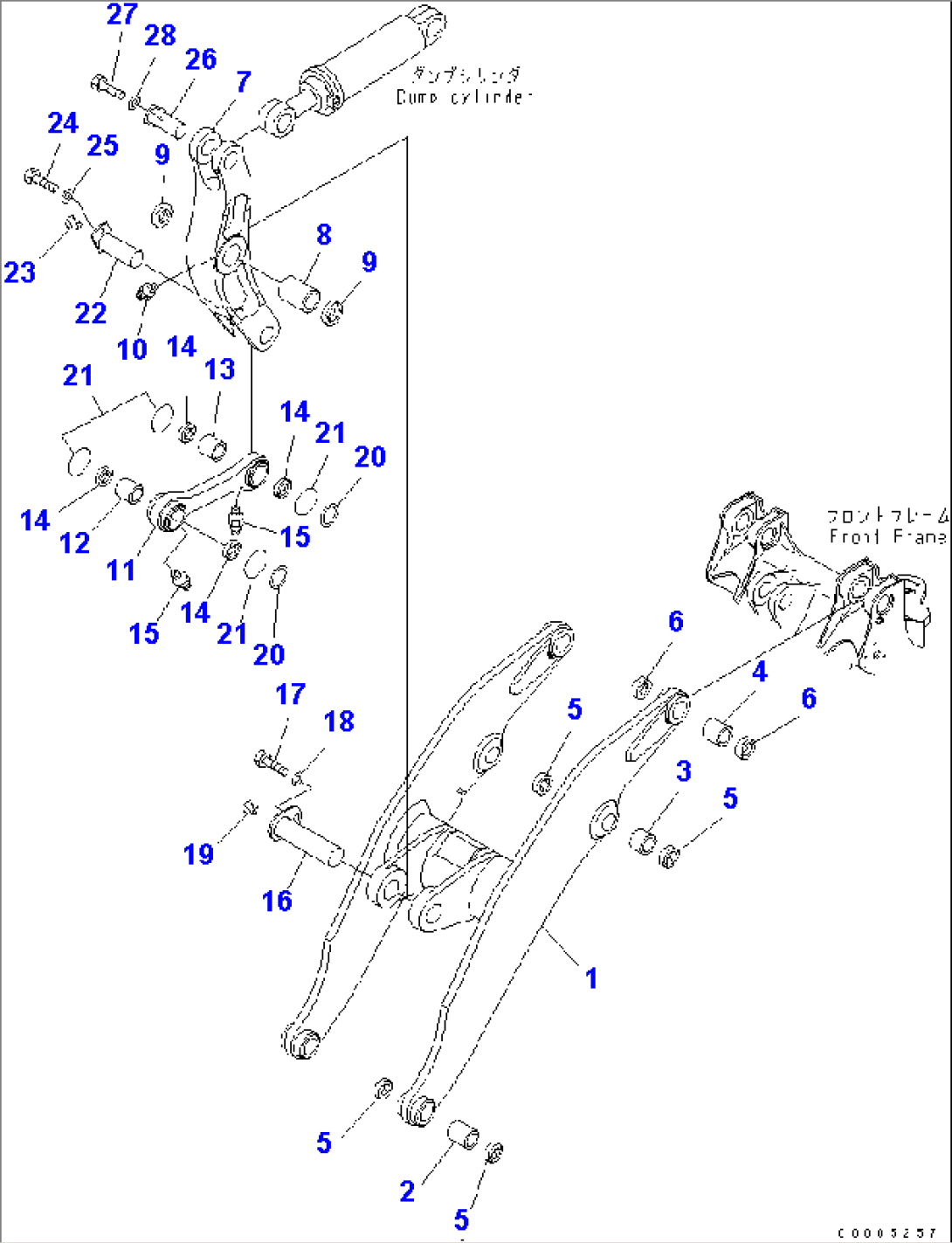

| Item | Part No. | Part Name | Qty | Serial No. |
| 426-T32-2251 | BOOM ASS'Y | 50001- | ||
| 1 | \6\ | BOOM | 50001- | |
| 01571-01218 | SEAT (WELDED) | 50001- | ||
| 2 | 426-70-11710 | BUSHING | 50001- | |
| 3 | 426-70-11871 | BUSHING | 50001- | |
| 4 | 426-70-11890 | BUSHING | 50001- | |
| 5 | 421-09-11330 | SEAL,DUST | 50001- | |
| 6 | 425-09-11110 | SEAL,DUST | 50001- | |
| 426-70-21202 | BELLCRANK ASS'Y | 50001- | ||
| 7 | \6\ | BELLCRANK | 50001- | |
| 8 | 426-70-11860 | BUSHING | 50001- | |
| 9 | 426-09-11110 | SEAL,DUST | 50001- | |
| 10 | 07020-00000 | FITTING,GREASE | 50001- | |
| 426-70-21400 | LINK ASS'Y | 50001- | ||
| 11 | \6\ | LINK | 50001- | |
| 12 | 426-70-11720 | BUSHING | 50001- | |
| 13 | 426-70-11820 | BUSHING | 50001- | |
| 14 | 425-09-11110 | SEAL,DUST | 50001- | |
| 15 | 07020-00000 | FITTING,GREASE | 50001- | |
| 16 | 426-70-11961 | PIN | 50393- | |
| 17 | 01010-82035 | BOLT | 50393- | |
| 18 | 427-70-11290 | WASHER | 50393- | |
| 19 | 07049-03342 | PLUG | 50393- | |
| 20 | 426-70-11460 | SHIM¤ 0.2MM | 50393- | |
| 426-70-11470 | SHIM¤ 0.5MM | 50393- | ||
| 21 | (426-70-12530) | O-RING | 50393- | |
| 22 | 426-70-11920 | PIN | 50393- | |
| 23 | 07049-03342 | PLUG | 50393- | |
| 24 | 01010-81630 | BOLT | 50393- | |
| 25 | 425-70-11290 | WASHER | 50393- | |
| 26 | 426-70-11941 | PIN | 50393- | |
| 27 | 01010-81630 | BOLT | 50393- | |
| 28 | 425-70-11290 | WASHER | 50393- |
