| Item | Part No. | Part Name | Qty | Serial No. |

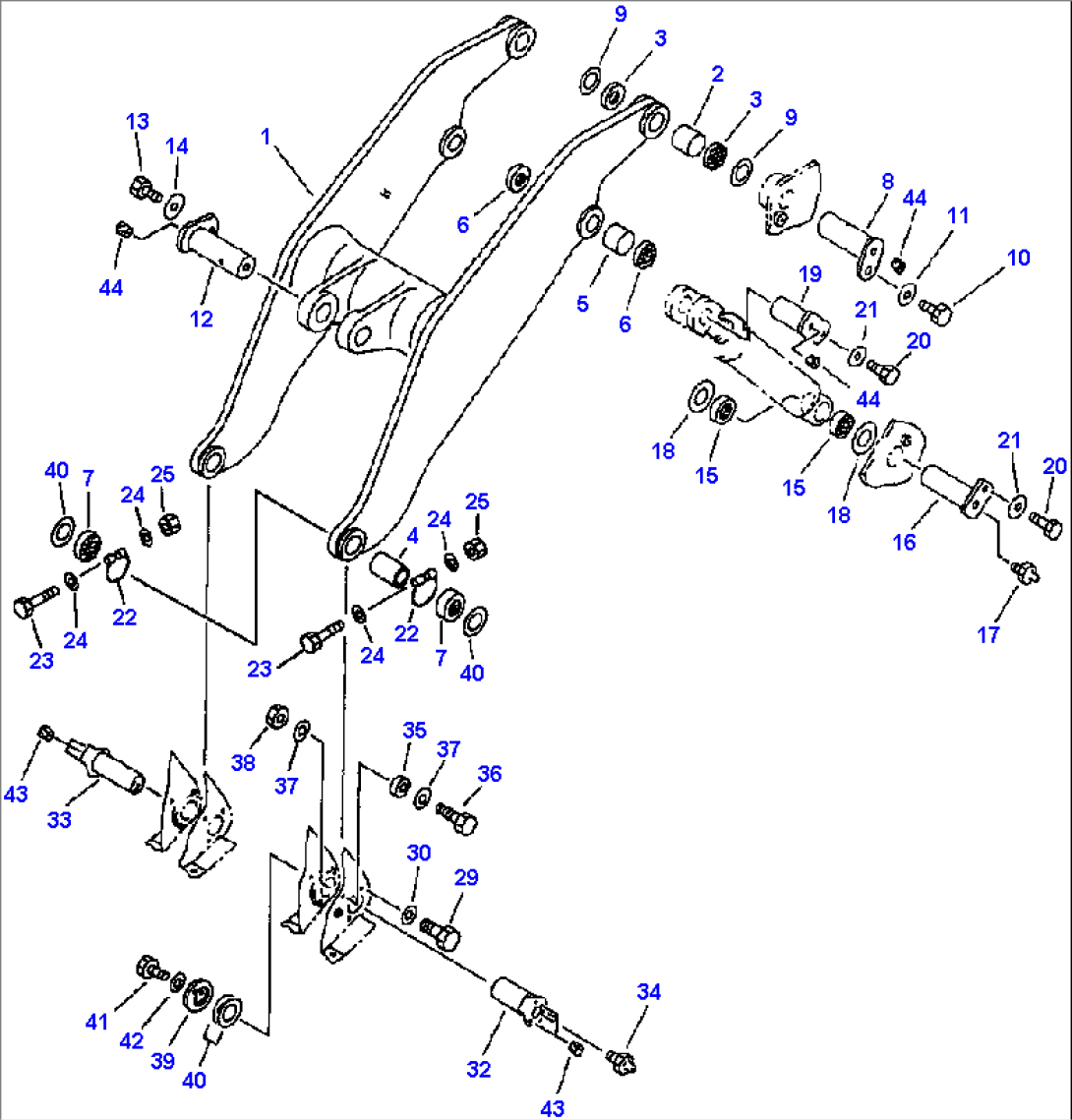

| 426-857-0013 | BOOM ASSEMBLY | |||
| 1 | 426-857-1113 | ARM, LIFT | ||
| 2 | 426-70-11890 | BUSHING | ||
| 3 | 425-09-11110 | SEAL | ||
| 4 | 426-70-11710 | BUSHING | ||
| 5 | 426-70-11871 | BUSHING | ||
| 6 | 421-09-11330 | SEAL, DUST | ||
| 7 | 421-09-11330 | SEAL, DUST | ||
| 8 | 426-70-11990 | PIN | ||
| 9 | 426-70-11320 | SHIM, 1.5MM | ||
| 10 | 01010-51630 | BOLT | ||
| 11 | 425-70-11290 | WASHER | ||
| 12 | 426-70-11960 | PIN | ||
| 13 | 01010-52035 | BOLT | ||
| 14 | 427-70-11290 | WASHER | ||
| 15 | 425-09-11110 | SEAL, DUST | ||
| 16 | 426-70-11980 | PIN | ||
| 17 | 07020-00000 | FITTING, GREASE | ||
| 18 | 426-70-11320 | SHIM, 1.5MM | ||
| 19 | 426-70-11970 | PIN | ||
| 20 | 01010-51630 | BOLT | ||
| 21 | 425-70-11290 | WASHER | ||
| 22 | 426-70-11170 | RING | ||
| 23 | 426-09-11150 | BOLT | ||
| 24 | 01641-20608 | WASHER | ||
| 25 | 426-09-11130 | NUT | ||
| 26 | NOT USED | |||
| 27 | NOT USED | |||
| 28 | NOT USED | |||
| 29 | 01011-51600 | BOLT | ||
| 30 | 01643-31645 | WASHER | ||
| N/I | 421-40-11510 | NUT | ||
| 32 | 426-853-1110 | PIN, LH | ||
| 33 | 426-853-1110 | PIN, RH | ||
| 34 | 07020-00000 | FITTING, GREASE | ||
| 35 | 425-70-11250 | CAM | ||
| 36 | 01010-52475 | BOLT | ||
| 37 | 01643-32460 | WASHER | ||
| 38 | 01580-12419 | NUT | ||
| 39 | 426-70-11260 | RETAINER | ||
| 40 | 426-70-11270 | SHIM, 0.2MM | ||
| 426-70-11280 | SHIM, 0.5MM | |||
| 41 | 01010-51645 | BOLT | ||
| 42 | 01643-31645 | WASHER | ||
| 43 | 07049-01620 | PLUG | ||
| 44 | 07049-03342 | PLUG |
