| Item | Part No. | Part Name | Qty | Serial No. |

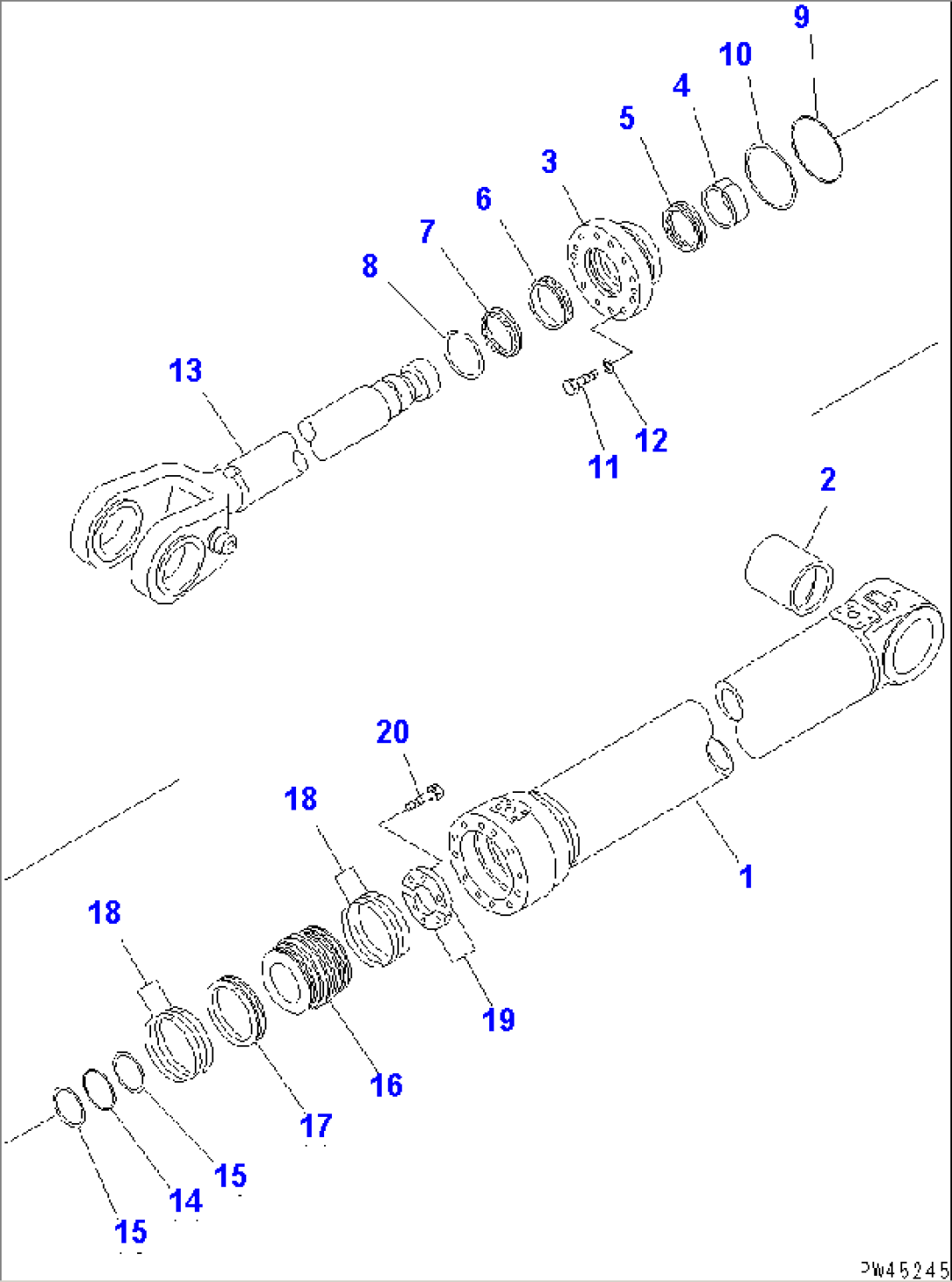

| 707-01-01020 | CYLINDER ASS'Y,LIFT | 10001- | ||
| 1 | 707-13-22181 | CYLINDER | 10001- | |
| 2 | 707-76-16011 | BUSHING | 10001- | |
| 3 | 707-27-22410 | HEAD,CYLINDER | 10001- | |
| 4 | 707-52-91150 | BUSHING | 10001- | |
| 5 | 707-51-14640 | RING,BUFFER (KIT) | 10001- | |
| 6 | 707-51-14130 | PACKING,ROD (KIT) | 10001- | |
| 7 | 198-63-93170 | SEAL,DUST (KIT) | 10001- | |
| 8 | 07179-14160 | RING,SNAP | 10001- | |
| 9 | 07000-15220 | O-RING (KIT) | 10001- | |
| 10 | 07001-05220 | RING,BACK-UP (KIT) | 10001- | |
| 11 | 01010-82785 | BOLT | 10001- | |
| 12 | 01643-32780 | WASHER | 10001- | |
| 13 | 707-59-14011 | ROD,PISTON | 10001- | |
| 14 | 07000-12115 | O-RING (KIT) | 10001- | |
| 15 | 707-35-52860 | RING,BACK-UP (KIT) | 10001- | |
| 16 | 707-36-22160 | PISTON | 10001- | |
| 17 | 707-44-22280 | RING,PISTON (KIT) | 10001- | |
| 18 | 707-39-22820 | RING,WEAR (KIT) | 10001- | |
| 19 | 707-40-22271 | SPACER | 10001- | |
| 20 | 01010-31455 | BOLT | 10001- | |
| SERVICE KIT | ||||
| KIT | 707-99-77600 | SERVICE KIT | 10001- |
