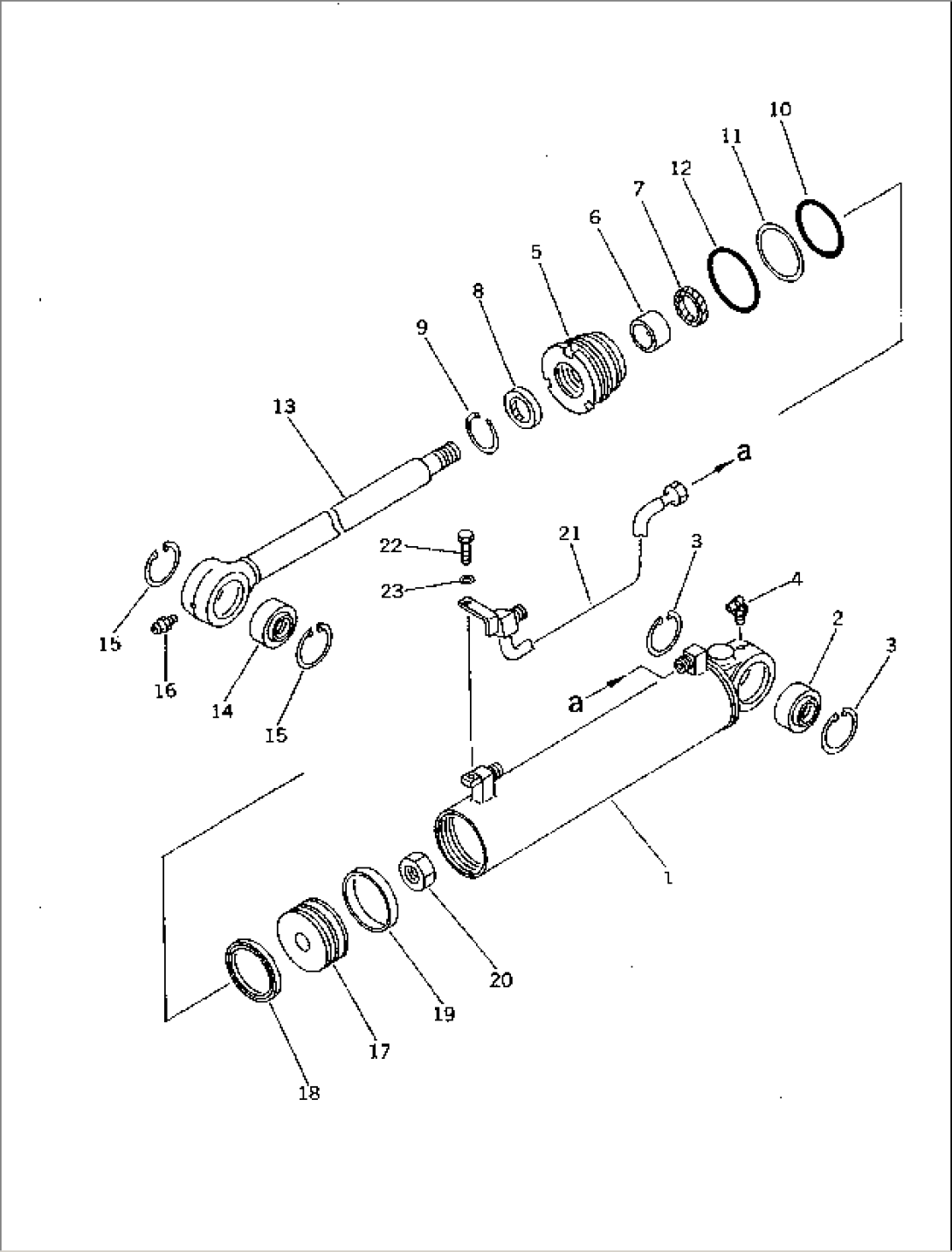

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\114-63-X2011) | CYLINDER GROUP,LIFT, L.H. | 3001- | |
| G-1 | (\8\114-63-X2021) | CYLINDER GROUP,LIFT, R.H. | 3001- | |
| ==================== | ||||
| 114-63-02011 | CYLINDER ASS'Y,LIFT | 3001- | ||
| 1 | 114-63-12341 | CYLINDER | 3001- | |
| 2 | 114-63-55170 | BUSHING | 3001- | |
| 3 | 04065-06220 | RING,SNAP | 3001- | |
| 4 | 07020-00675 | FITTING,GREASE | 3001- | |
| 5 | 707-29-90910 | HEAD,CYLINDER | 3001- | |
| 6 | 07177-04025 | BUSHING | 3001- | |
| 7 | 707-51-40210 | PACKING,ROD | 3001- | |
| 8 | 198-63-75190 | SEAL,DUST | 3001- | |
| 9 | 07179-12052 | RING,SNAP | 3001- | |
| 10 | 07000-12085 | O-RING | 3001- | |
| 11 | 07001-02085 | RING,BACK-UP | 3001- | |
| 12 | 07000-02090 | O-RING | 3001- | |
| 13 | 114-63-12320 | ROD,PISTON | 3001- | |
| 14 | 114-63-55170 | BUSHING | 3001- | |
| 15 | 04065-06220 | RING,SNAP | 3001- | |
| 16 | 07020-00000 | FITTING,GREASE | 3001- | |
| 17 | 707-36-90920 | PISTON | 3001- | |
| 18 | 707-44-90070 | RING,PISTON | 3001- | |
| 19 | 07156-00912 | RING,WEAR | 3001- | |
| 20 | 01580-02722 | NUT | 3001- | |
| 21 | 114-63-12380 | TUBE,L.H. | 3001- | |
| 21 | 114-63-12480 | TUBE,R.H. | 3001- | |
| 22 | 01010-51020 | BOLT | 3001- | |
| 23 | 01643-31032 | WASHER | 3001- | |
| ==================== |
