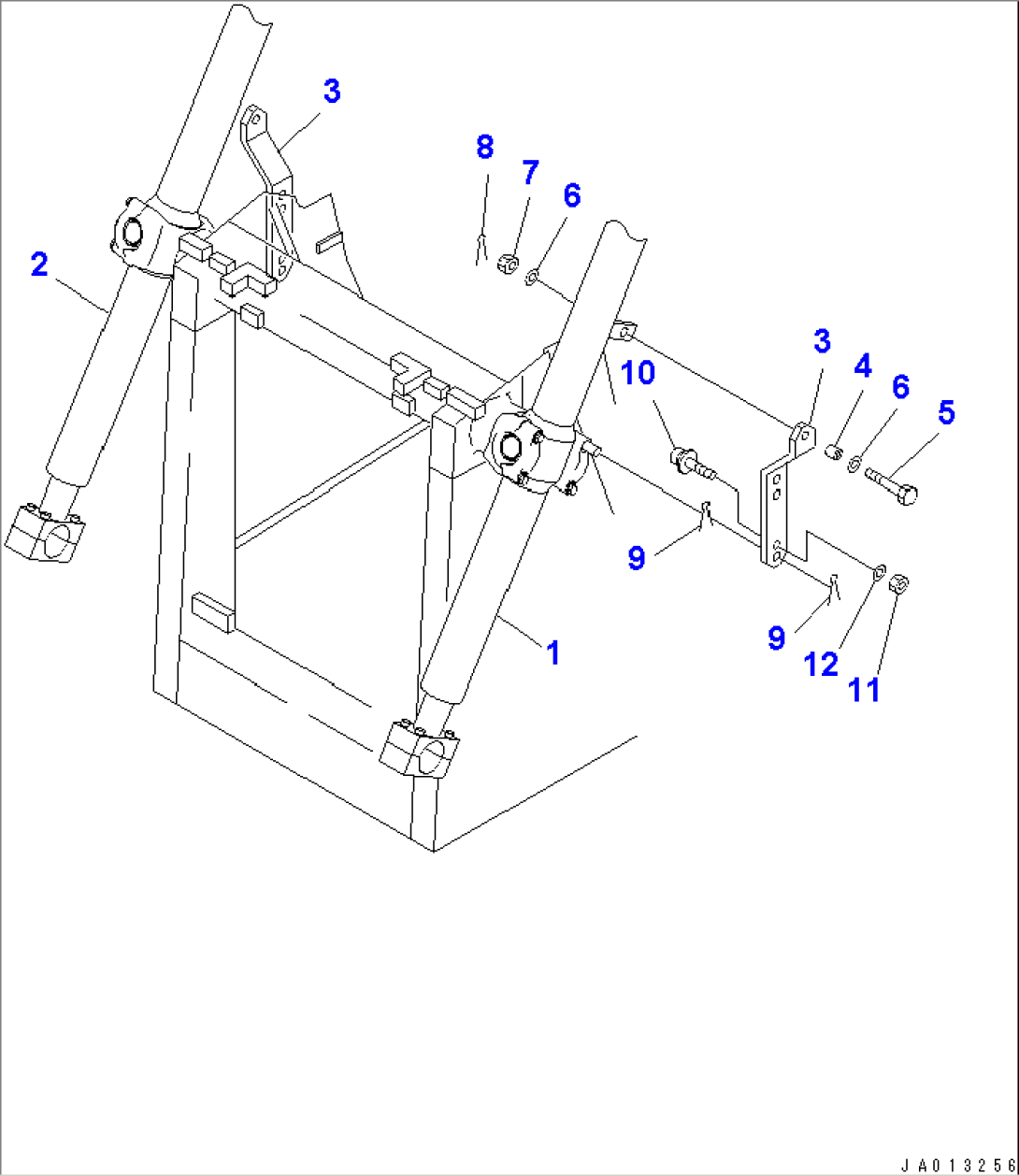

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (14Y-63-X1017) | CYLINDER ASS'Y | 65890- | |
| 1 | (14Y-63-X1016) | CYLINDER ASS'Y | 65679-65889 | |
| 1 | (14Y-63-X1014) | CYLINDER ASS'Y | 60884-65678 | |
| 2 | (14Y-63-X1027) | CYLINDER ASS'Y | 65890- | |
| 2 | (14Y-63-X1026) | CYLINDER ASS'Y | 65679-65889 | |
| 2 | (14Y-63-X1024) | CYLINDER ASS'Y | 60884-65678 | |
| 3 | 14X-54-12950 | PLATE | 60884- | |
| 4 | 423-825-1720 | SPACER | 60884- | |
| 5 | 01012-81250 | BOLT | 60884- | |
| 6 | 01643-31232 | WASHER | 60884- | |
| 7 | 01590-31215 | NUT | 60884- | |
| 8 | 04050-13022 | PIN | 60884- | |
| 9 | 04050-18080 | PIN | 60884- | |
| 10 | 09311-41237 | BUMPER | 60884- | |
| 11 | 01580-11210 | NUT | 60884- | |
| 12 | 01643-31232 | WASHER | 60884- |
