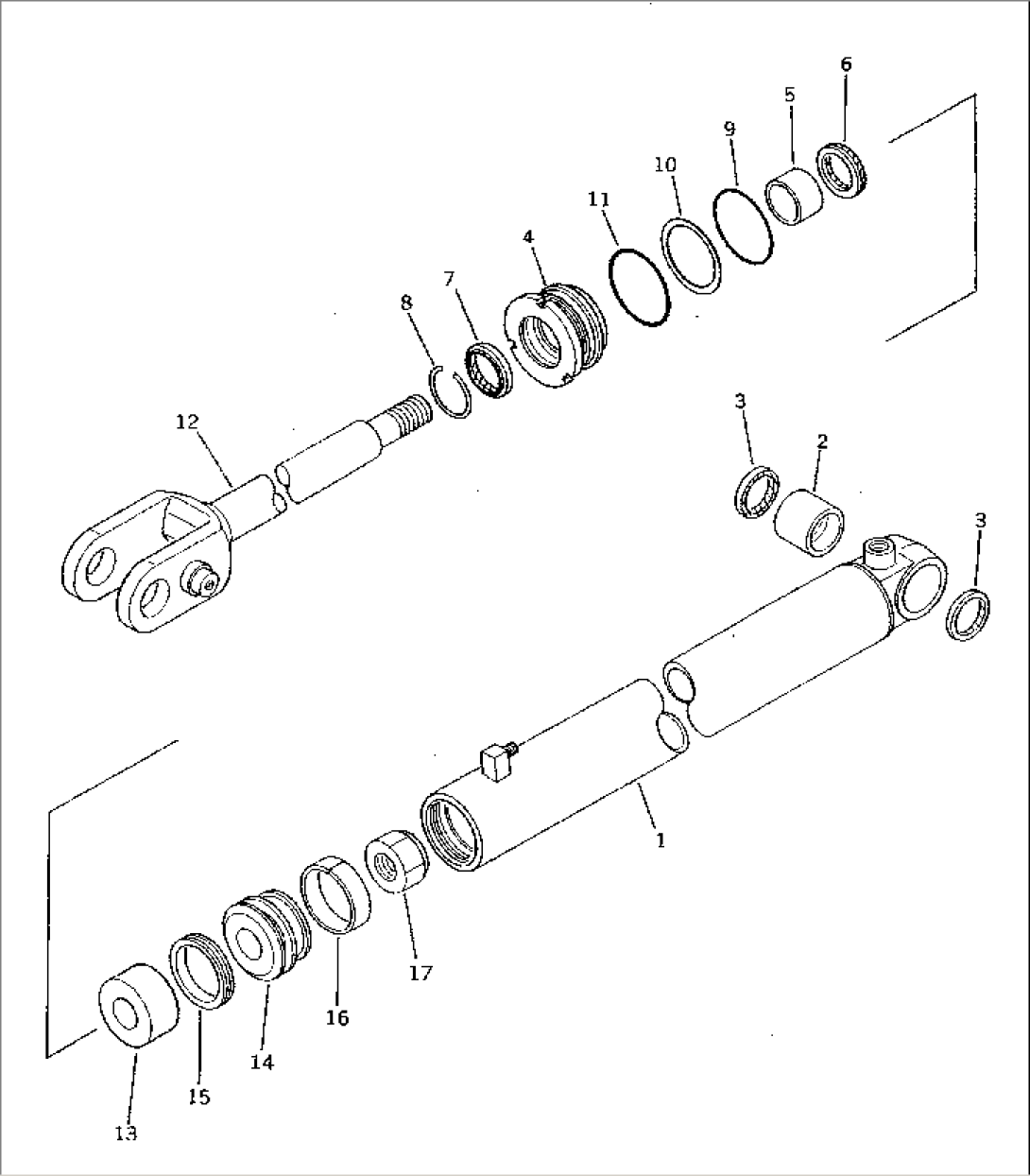

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-02060 | CYLINDER ASS'Y | 12001- | ||
| 1 | 707-11-80440 | CYLINDER | 12001- | |
| 2 | 707-76-45060 | BUSHING | 10001- | |
| 3 | 07145-00045 | SEAL,DUST | 10001- | |
| 4 | 707-29-80730 | HEAD,CYLINDER | 12001- | |
| 5 | 07177-04530 | BUSHING | 10001- | |
| 6 | 707-51-45030 | PACKING,ROD | 12001- | |
| 7 | 07016-20457 | SEAL,DUST | 12001- | |
| 8 | 07179-12057 | RING,SNAP | 12001- | |
| 9 | 07000-12075 | O-RING | 12001- | |
| 10 | 07146-02076 | RING,BACK-UP | 12001- | |
| 11 | 07000-02080 | O-RING | 12001- | |
| 12 | 707-59-45220 | ROD,PISTON | 12001- | |
| 13 | 707-88-12080 | COLLAR | 12001- | |
| 14 | 707-36-80230 | PISTON | 12001- | |
| 15 | 707-44-80180 | RING,PISTON | 12001- | |
| 16 | 07156-00810 | RING,WEAR | 12001- | |
| 17 | 07165-13033 | NUT,NYLON | 12001- |
