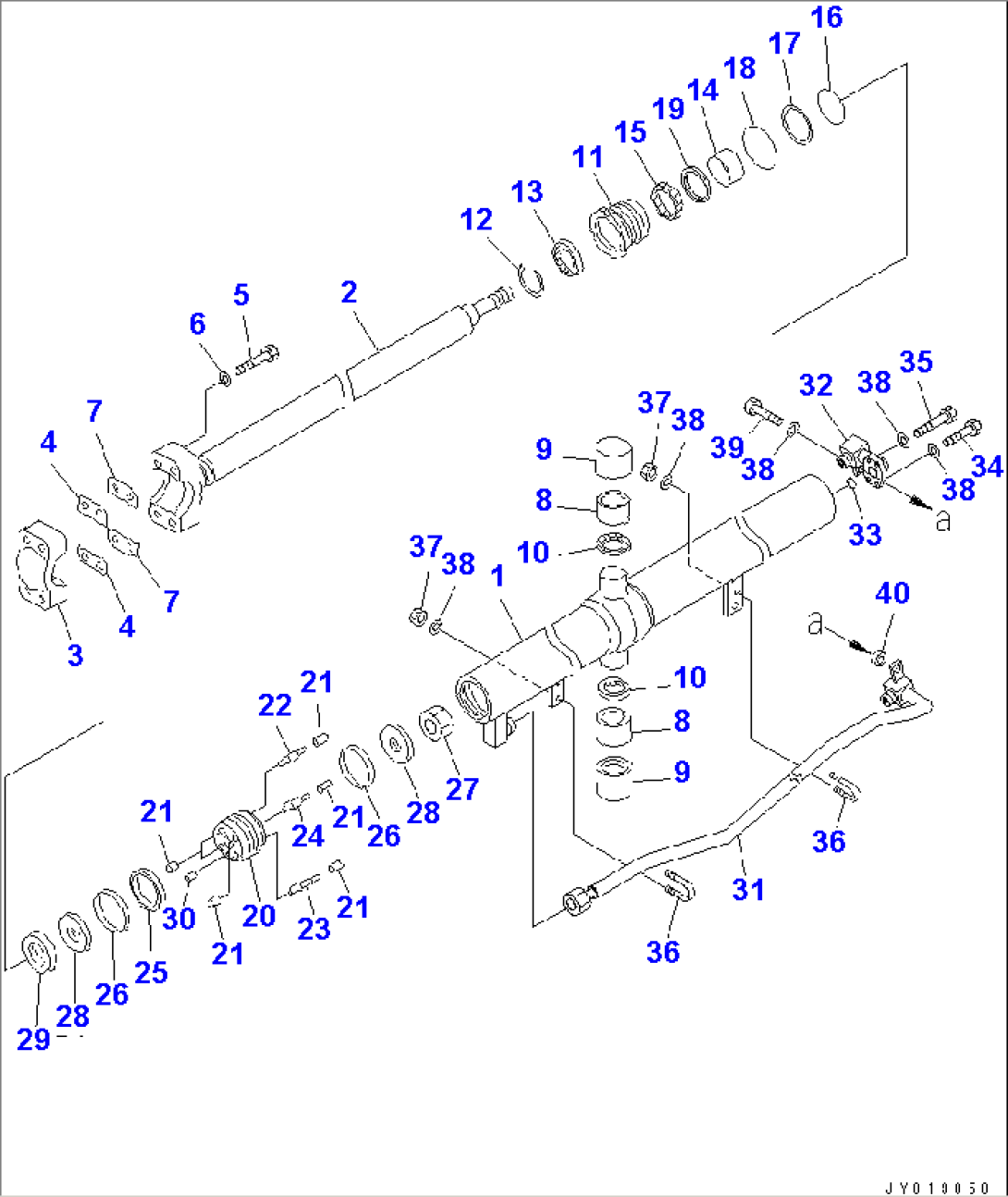

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\14Y-63-X1016) | CYLINDER ASS'Y,L.H. | 66540- | |
| G-1 | (\8\14Y-63-X1026) | CYLINDER ASS'Y,R.H. | 66540- | |
| ==================== | ||||
| 14Y-63-01016 | CYLINDER ASS'Y | 66540- | ||
| 1 | 14Y-63-12144 | CYLINDER | 60942- | |
| 2 | 14Y-63-12121 | ROD,PISTON | 60942- | |
| 3 | 707-66-70020 | CAP | 60942- | |
| 4 | 707-88-11290 | SHIM, 1.0MM | 60942- | |
| 5 | 01011-81600 | BOLT | 60942- | |
| 6 | 01643-51645 | WASHER | 60942- | |
| 7 | 707-88-11300 | SHIM, 0.5MM | 60942- | |
| 8 | 144-60-15450 | BUSHING | 60942- | |
| 9 | 144-60-15431 | BUSHING | 60942- | |
| 10 | 07145-00055 | SEAL,DUST (KIT) | 60942- | |
| 11 | 707-29-95240 | HEAD,CYLINDER | 66540- | |
| 12 | 07179-12079 | RING,BACK-UP | 60942- | |
| 13 | 707-56-65540 | SEAL,DUST (KIT) | 60942- | |
| 14 | 707-52-90401 | BUSHING | 60942- | |
| 15 | 707-51-65030 | PACKING,ROD (KIT) | 60942- | |
| 16 | 07000-12090 | O-RING (KIT) | 66540- | |
| 17 | 707-35-52780 | RING,BACK-UP (KIT) | 66540- | |
| 18 | 07000-12095 | O-RING (KIT) | 66540- | |
| 19 | 707-51-65640 | RING,BUFFER (KIT) | 66540- | |
| 14Y-63-12133 | PISTON SUB ASS'Y | 60942- | ||
| 20 | \6\ | PISTON | 60942- | |
| 21 | \6\ | SEAT,VALVE | 60942- | |
| 22 | \6\ | VALVE,PISTON | 60942- | |
| 23 | \6\ | VALVE,PISTON | 60942- | |
| 24 | \6\ | VALVE,PISTON | 60942- | |
| 25 | 707-44-95180 | RING,PISTON (KIT) | 60942- | |
| 26 | 707-39-95120 | RING,WEAR (KIT) | 60942- | |
| 27 | 707-67-33030 | NUT | 60942- | |
| 28 | 707-40-95010 | RETAINER | 60942- | |
| 29 | 707-69-95010 | SLIDER | 60942- | |
| 30 | 707-88-60310 | PIN | 60942- | |
| 31 | 14Y-63-12174 | TUBE,L.H. | 66540- | |
| 31 | 14Y-63-12274 | TUBE,R.H. | 66540- | |
| 32 | 707-86-67140 | TUBE,L.H. | 66540- | |
| 32 | 707-86-67150 | TUBE,R.H. | 66540- | |
| 33 | 07000-13030 | O-RING (KIT) | 66540- | |
| 34 | 01435-01040 | BOLT | 60942- | |
| 35 | 01435-01055 | BOLT | 60942- | |
| 36 | 07283-32738 | CLIP | 60942- | |
| 37 | 01597-01009 | NUT | 60942- | |
| 38 | 01643-31032 | WASHER | 60942- | |
| 39 | 01010-81040 | BOLT | 60942- | |
| 40 | 707-88-03150 | SPACER | 60942- | |
| ==================== | ||||
| 707-99-25890 | SERVICE KIT | 66540- |
