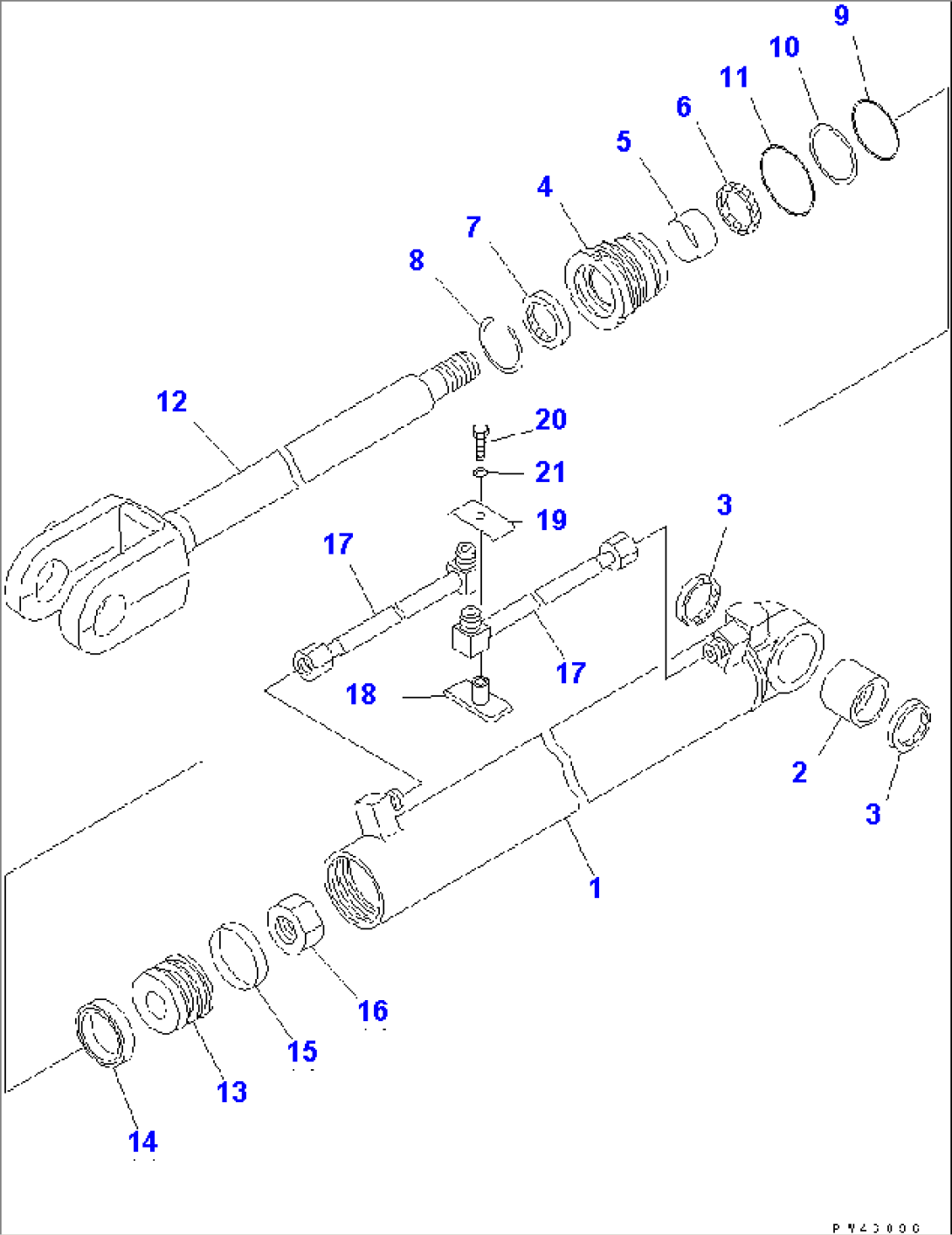

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\42A-63-X1010) | CYLINDER GROUP,LIFT | 23001- | |
| G1 | (\8\42A-63-X1110) | CYLINDER GROUP,LIFT (NATURAL YELLOW COATING) | 23001- | |
| ==================== | ||||
| 42A-63-01010 | CYLINDER ASS'Y | 23001- | ||
| 1 | 42A-63-12140 | CYLINDER | 23001- | |
| 2 | 07143-10405 | BUSHING | 23001- | |
| 3 | 07145-00045 | SEAL,DUST (KIT) | 23001- | |
| 4 | 707-29-75010 | HEAD,CYLINDER | 23001- | |
| 5 | 07177-04530 | BUSHING | 23001- | |
| 6 | 707-51-45210 | PACKING,ROD (KIT) | 23001- | |
| 7 | 112-63-15370 | SEAL,DUST (KIT) | 23001- | |
| 8 | 07179-12057 | RING,SNAP | 23001- | |
| 9 | 07000-12070 | O-RING (KIT) | 23001- | |
| 10 | 707-35-52760 | RING,BACK-UP (KIT) | 23001- | |
| 11 | 07000-02075 | O-RING (KIT) | 23001- | |
| 12 | 42A-63-12120 | ROD,PISTON | 23001- | |
| 13 | 707-36-75470 | PISTON | 23001- | |
| 14 | 707-44-75180 | RING,PISTON (KIT) | 23001- | |
| 15 | 707-39-75190 | RING,WEAR (KIT) | 23001- | |
| 16 | 01580-03326 | NUT | 23001- | |
| 17 | 363-63-12770 | TUBE | 23001- | |
| 18 | 707-88-14810 | CLAMP | 23001- | |
| 19 | 707-88-97961 | CLIP | 23001- | |
| 20 | 01010-51020 | BOLT | 23001- | |
| 21 | 01643-31032 | WASHER | 23001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-24840 | SERVICE KIT,LIFT CYLINDER | 23001- |
