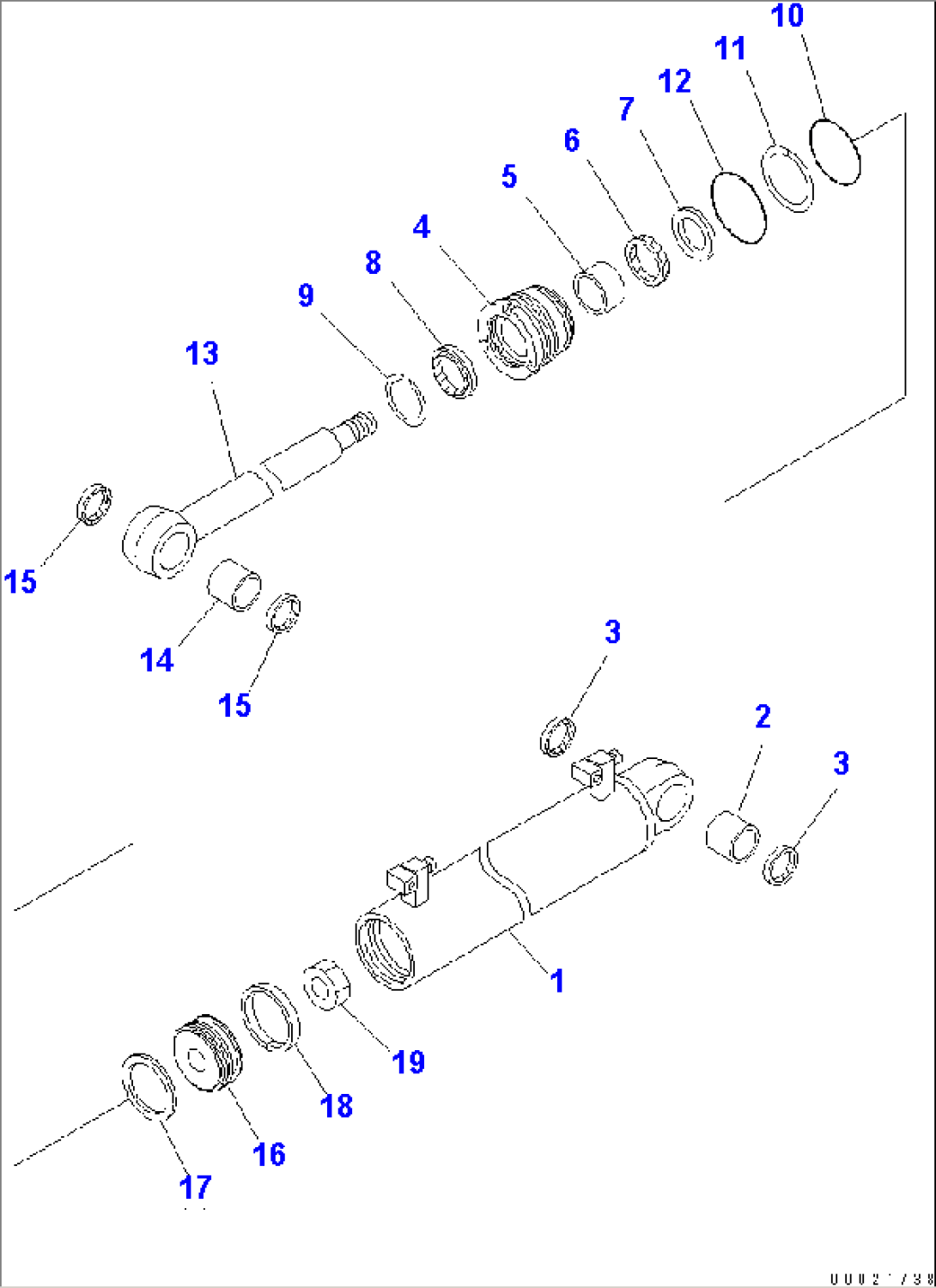

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-63-01013 | CYLINDER ASS'Y | 1244- | ||
| 1 | 134-63-12042 | CYLINDER | 1244- | |
| 2 | 07143-10606 | BUSHING | 1244- | |
| 3 | 07145-00060 | SEAL,DUST (KIT) | 1244- | |
| 4 | 707-29-11620 | HEAD,CYLINDER | 1244- | |
| 5 | 707-52-90300 | BUSHING | 1244- | |
| 6 | 707-51-55030 | PACKING,ROD (KIT) | 1244- | |
| 7 | 707-51-55640 | RING,BUFFER (KIT) | 1244- | |
| 8 | 707-56-55540 | SEAL,DUST (KIT) | 1244- | |
| 9 | 07179-12069 | RING,SNAP | 1244- | |
| 10 | 07000-12105 | O-RING (KIT) | 1244- | |
| 11 | 07146-02106 | RING,BACK-UP (KIT) | 1244- | |
| 12 | 07000-12110 | O-RING (KIT) | 1244- | |
| 13 | 134-63-12020 | ROD,PISTON | 1244- | |
| 14 | 07143-10606 | BUSHING | 1244- | |
| 15 | 07145-00060 | SEAL,DUST (KIT) | 1244- | |
| 16 | 707-36-11040 | PISTON | 1244- | |
| 17 | 707-44-11180 | RING,PISTON (KIT) | 1244- | |
| 18 | 07156-01112 | RING,WEAR (KIT) | 1244- | |
| 19 | 707-67-39010 | NUT | 1244- | |
| K | 707-99-34600 | SERVICE KIT | 1244- |
