| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-69-43120 | BRACKET | 80001- | |
| 2 | 01011-82025 | BOLT | 80001- | |
| 3 | 01643-32060 | WASHER | 80001- | |
| 4 | 01010-81230 | BOLT | 80001- | |
| 5 | 01643-31232 | WASHER | 80001- | |
| 6 | 21T-09-11330 | WASHER | 80001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D155ax 6 s/n 80001 81027 (ecot3)
- Guard
- Lift cylinder support (for scraper)(#80001 )
Поиск по каталогу

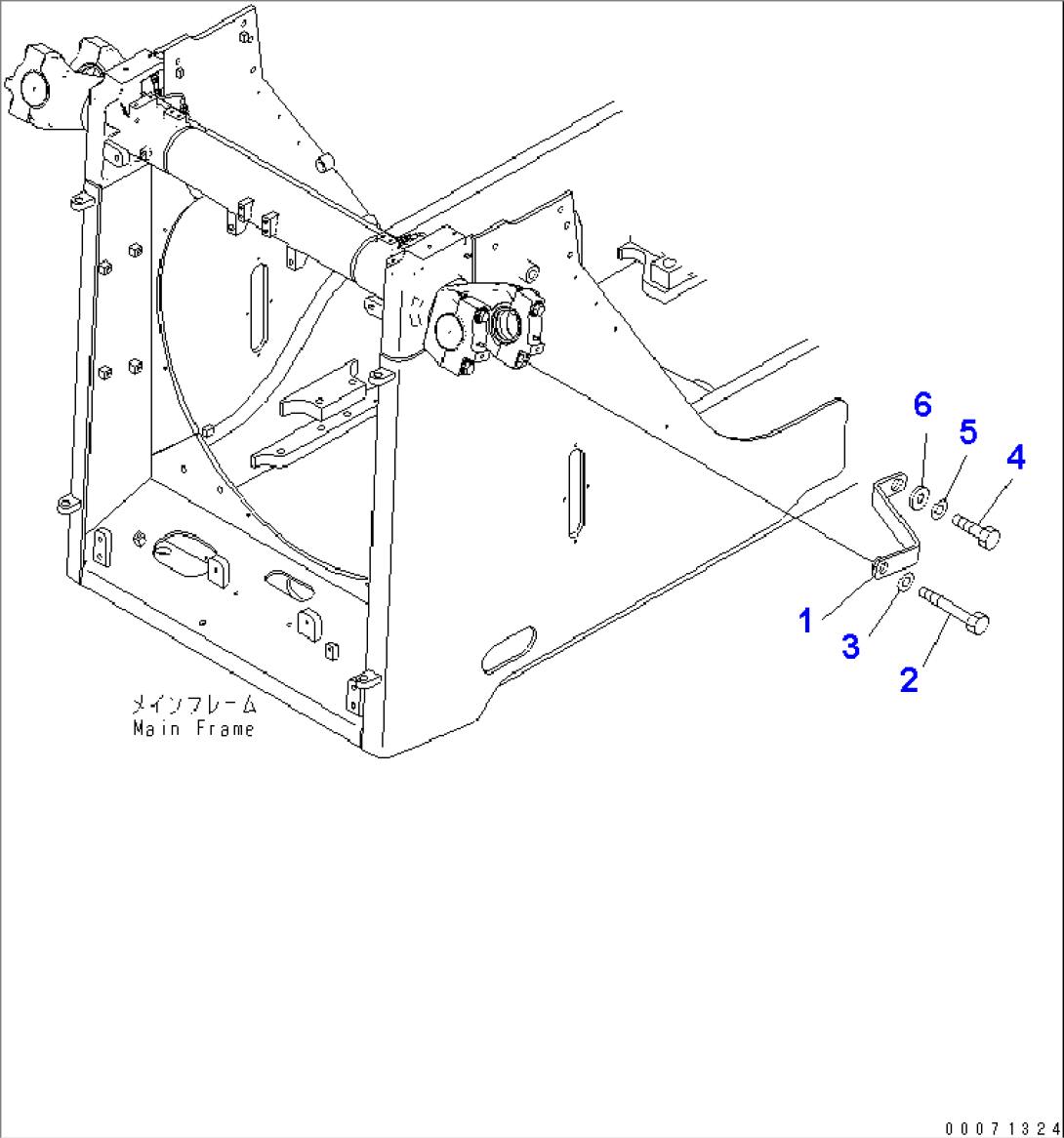

LIFT CYLINDER SUPPORT (FOR SCRAPER)(#80001-)
