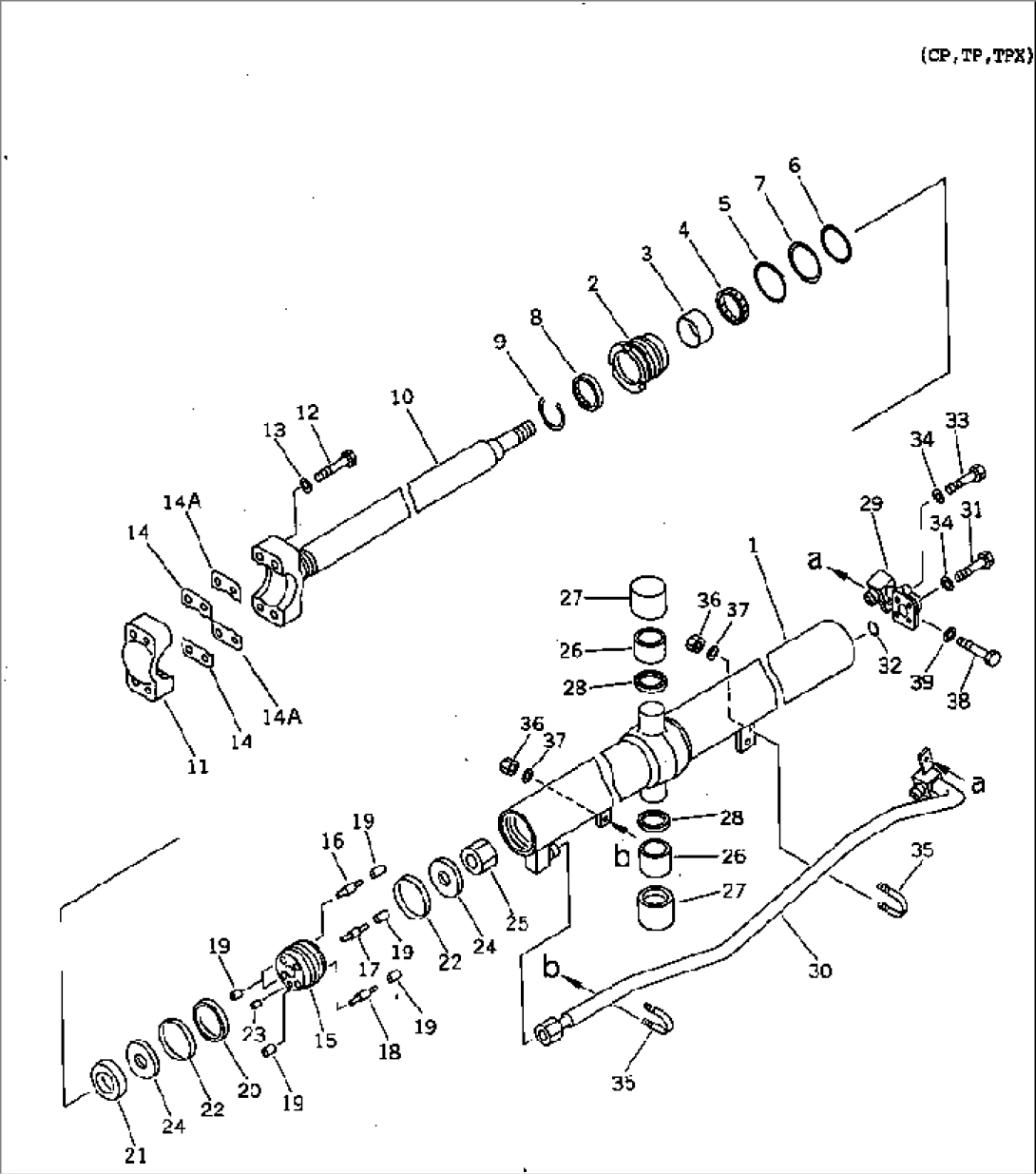

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\14Y-63-X1014) | CYLINDER ASS'Y,LIFT, L.H. | 3001- | |
| G-1 | (\8\14Y-63-X1024) | CYLINDER ASS'Y,LIFT, R.H. | 3001- | |
| ==================== | ||||
| 14Y-63-01013 | CYLINDER ASS'Y | 3001- | ||
| 1 | 14Y-63-12143 | CYLINDER,L.H. | 3001- | |
| 2 | 707-29-95730 | HEAD,CYLINDER | 3001- | |
| 3 | 707-52-10660 | BUSHING | 3001- | |
| 4 | 707-51-65211 | PACKING,ROD (K8) | 3001- | |
| 5 | 07000-02095 | O-RING (K8) | 3001- | |
| 6 | 07000-12090 | O-RING (K8) | 3001- | |
| 7 | 707-35-52780 | RING,BACK-UP (K8) | 3001- | |
| 8 | 144-63-92170 | SEAL,DUST (K8) | 3001- | |
| 9 | 07179-12079 | RING,SNAP | 3001- | |
| 10 | 14Y-63-12121 | ROD,PISTON | 3001- | |
| 11 | 707-66-70020 | CAP | 3001- | |
| 12 | 01011-51600 | BOLT | 3001- | |
| 13 | 01643-51645 | WASHER | 3001- | |
| 14 | 707-88-11290 | SHIM, 1.0MM | 3001- | |
| 14A | 707-88-11300 | SHIM, 0.5MM | 3001- | |
| 14Y-63-12131 | PISTON SUB ASS'Y | 3001- | ||
| 15 | 707-37-95010 | PISTON | 3001- | |
| 16 | \6\ | VALVE,PISTON | 3001- | |
| 17 | \6\ | VALVE,PISTON | 3001- | |
| 18 | \6\ | VALVE,PISTON | 3001- | |
| 19 | \6\ | SEAT,VALVE | 3001- | |
| 20 | 707-44-95180 | RING,PISTON (K8) | 3001- | |
| 21 | 707-69-95010 | SLIDER | 3001- | |
| 22 | 707-39-95120 | RING,WEAR (K8) | 3001- | |
| 23 | 130-63-12761 | PIN,DOWEL | 3001- | |
| 24 | 707-40-95010 | RETAINER | 3001- | |
| 25 | 707-68-10330 | NUT | 3001- | |
| 26 | 144-60-15450 | BUSHING | 3001- | |
| 27 | 144-60-15431 | BUSHING | 3001- | |
| 28 | 07145-00055 | SEAL,DUST (K8) | 3001- | |
| 29 | 14Y-63-12181 | TUBE,L.H. | 3001- | |
| 29 | 14Y-63-12281 | TUBE,R.H. | 3001- | |
| 30 | 14Y-63-12172 | TUBE,L.H. | 3001- | |
| 30 | 14Y-63-12270 | TUBE,R.H. | 3001- | |
| 31 | 07372-21040 | BOLT | 3001- | |
| 32 | 07000-13030 | O-RING (K8) | 3001- | |
| 33 | 07372-21050 | BOLT | 3001- | |
| 34 | 01643-51032 | WASHER | 3001- | |
| 35 | 07283-22738 | CLIP | 3001- | |
| 36 | 01599-01011 | NUT | 3001- | |
| 37 | 01643-31032 | WASHER | 3001- | |
| 38 | 01010-51020 | BOLT | 3001- | |
| 39 | 01643-31032 | WASHER | 3001- | |
| ==================== |
