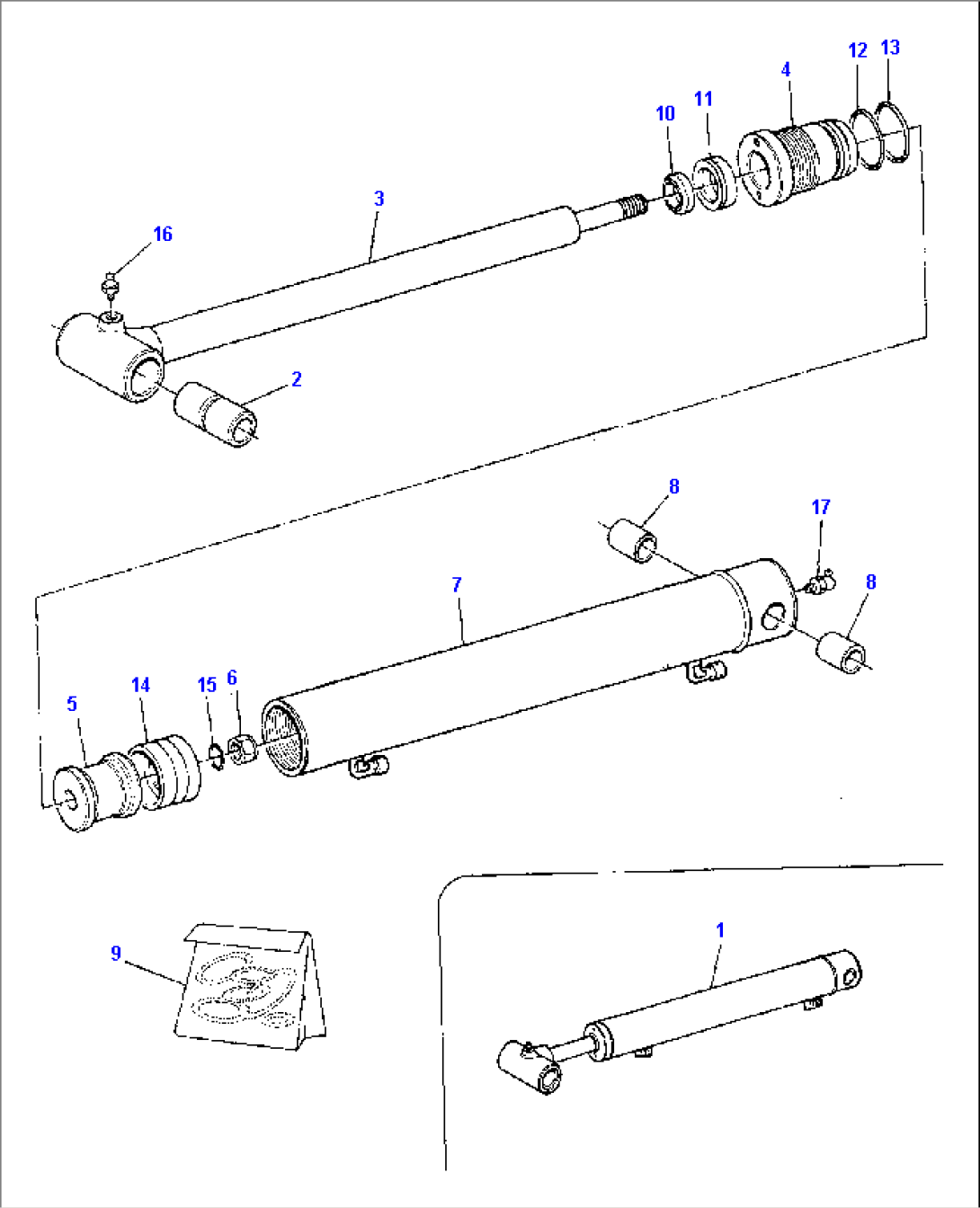

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | UE2709100 | CYLINDER, ASSY. | 3441491- | |
| 2 | UE2510808 | BUSHING | 3441491- | |
| 3 | UE2700426 | PISTON ROD | 3441491- | |
| 4 | UE2700427 | CYLINDER HEAD | 3441491- | |
| 5 | UE2700084 | PISTON | 3441491- | |
| 6 | 801862424 | NUT | 3441491- | |
| 7 | UE2700433 | CYLINDER | 3441491- | |
| 8 | UE2300064 | BUSHING | 3441491- | |
| 9 | U2700086B | KIT, GASKET | 3441491- | |
| 10 | \6\ | GASKET | 3441491- | |
| 11 | \6\ | GASKET | 3441491- | |
| 12 | \6\ | O-RING | 3441491- | |
| 13 | \6\ | RING, WEAR | 3441491- | |
| 14 | \6\ | GASKET | 3441491- | |
| 15 | \6\ | O-RING | 3441491- | |
| 16 | 860010007 | FITTING | 3441491- | |
| 17 | 860030004 | FITTING | 3441491- |
