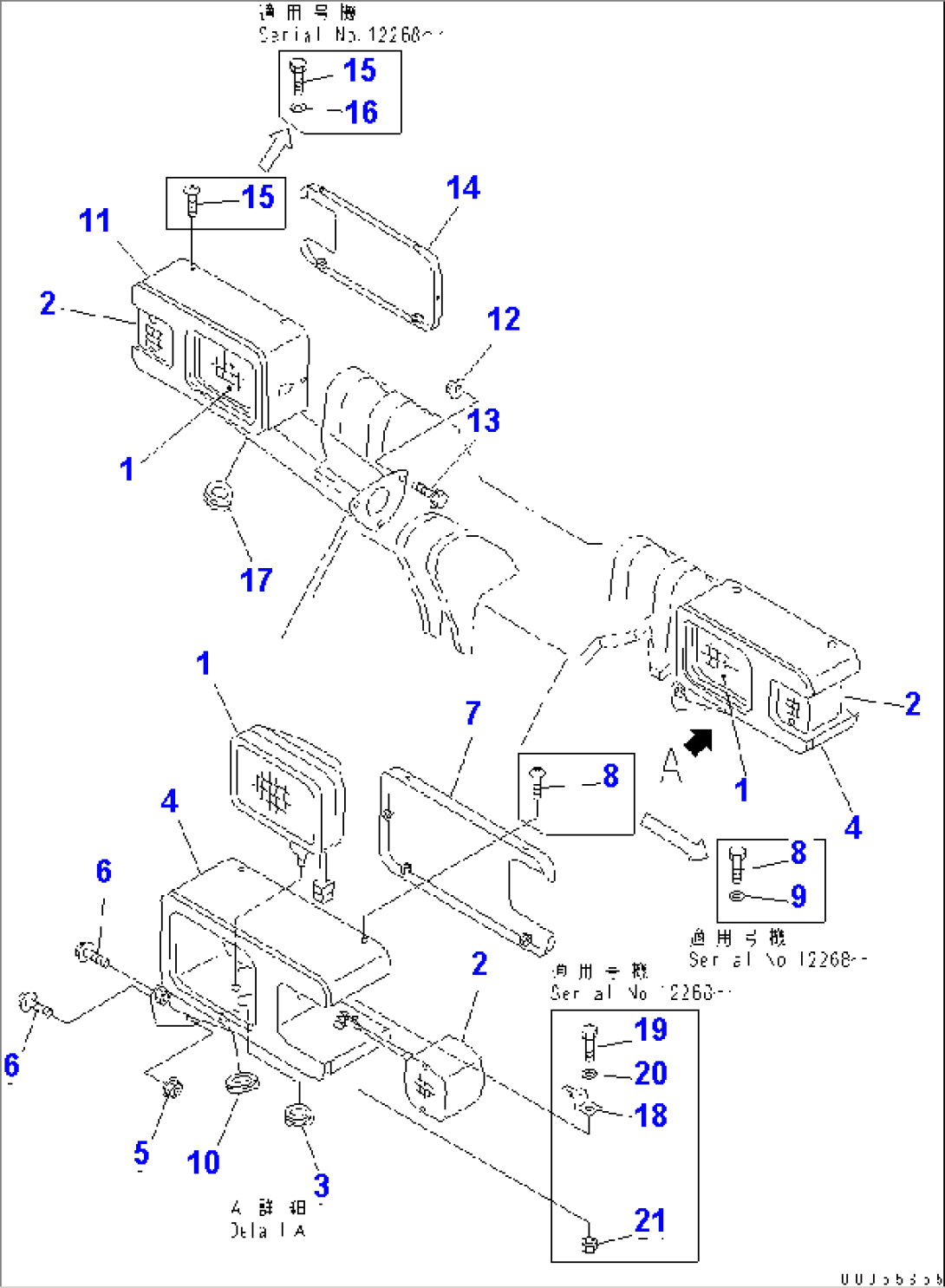

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-23212 | HEAD LAMP ASS'Y | 10001- | |
| 1 | 417-06-23221 | BULB, 62/62W | 10001- | |
| 1 | 417-06-23260 | LENS | 10001- | |
| 2 | 424-06-43221 | LAMP | 12268- | |
| 2 | 23B-06-42460 | LAMP ASS'Y | 12001-12267 | |
| 2 | 41G-06-13201 | LAMP ASS'Y,COMBINATION | 10001-12000 | |
| 2 | 41G-06-13210 | LENS,FRONT | 10001- | |
| 2 | 41G-06-13220 | LENS,REAR | 10001- | |
| 2 | 41G-06-13230 | BULB, 5W | 10001- | |
| 2 | 08105-12420 | BULB, 25W | 10001- | |
| 2 | 01220-40425 | SCREW | 10001- | |
| 3 | 08037-02512 | GROMMET | 10001- | |
| 4 | 417-06-23110 | SUPPORT,L.H. | 10001- | |
| 5 | 01584-01210 | NUT | 10001- | |
| 6 | 01435-01230 | BOLT | 10001- | |
| 7 | 417-06-23190 | PLATE | 10001- | |
| 8 | 01010-80612 | BOLT | 12268- | |
| 8 | 01023-10612 | SCREW | 10001-12267 | |
| 9 | 01643-30623 | WASHER | 12268- | |
| 10 | 09415-03614 | CAP | 10001- | |
| 11 | 417-06-23120 | SUPPORT,R.H. | 10001- | |
| 12 | 01584-01210 | NUT | 10001- | |
| 13 | 01435-01230 | BOLT | 10001- | |
| 14 | 417-06-23190 | PLATE | 10001- | |
| 15 | 01010-80612 | BOLT | 12268- | |
| 15 | 01023-10612 | SCREW | 10001-12267 | |
| 16 | 01643-30623 | WASHER | 12268- | |
| 17 | 09415-03614 | CAP | 10001- | |
| 18 | 08193-21012 | CLIP | 12268- | |
| 19 | 01010-81016 | BOLT | 12268- | |
| 20 | 01643-31032 | WASHER | 12268- | |
| 21 | 01580-11008 | NUT | 12268- |
