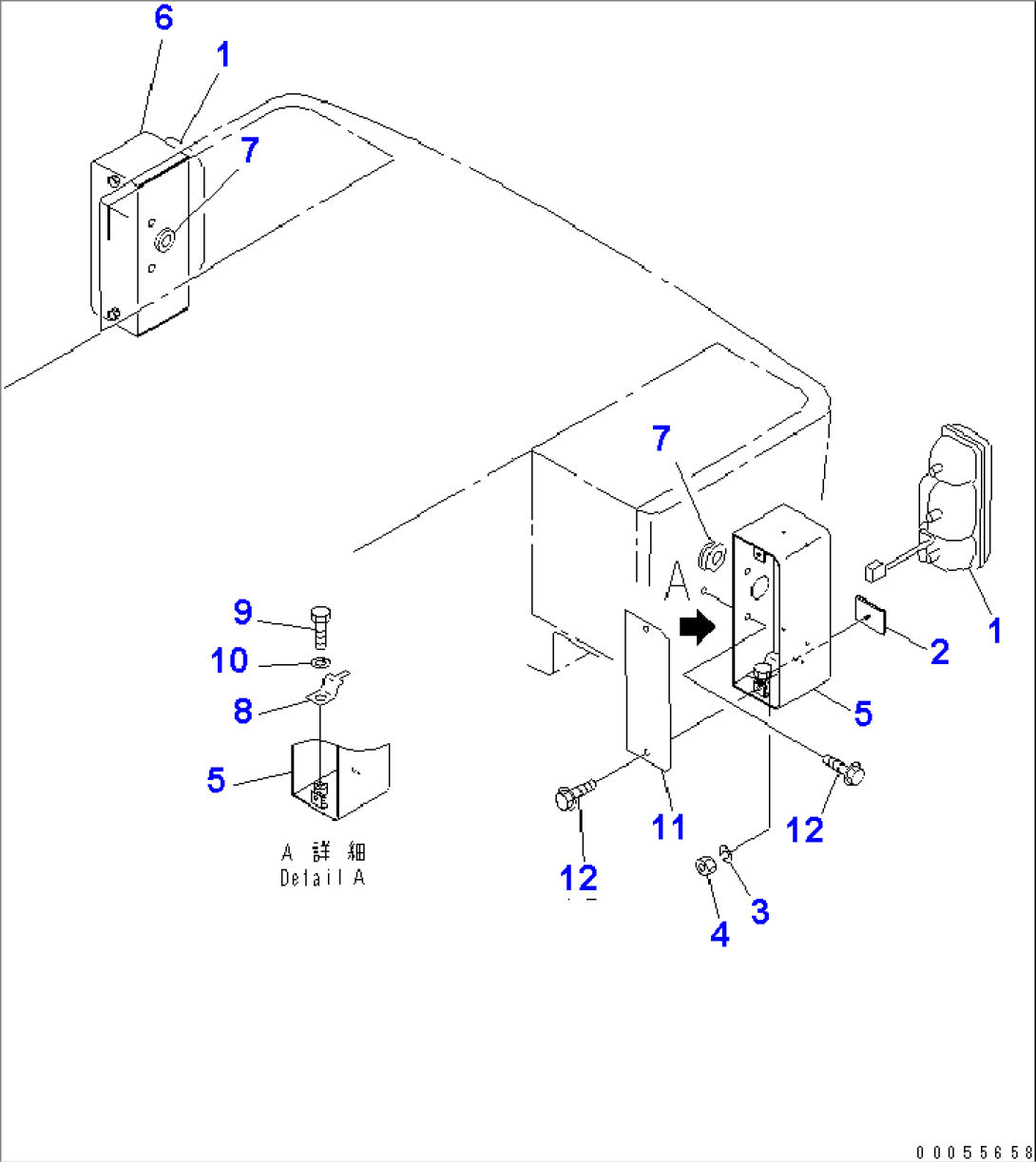

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-43231 | LAMP | 12268- | |
| 1 | 424-06-43340 | BULB, 21/5W | 12268- | |
| 1 | 424-06-43330 | BULB, 21W | 12268- | |
| 1 | 23A-06-21430 | LENS,CLEAR | 12268- | |
| 1 | 424-06-43310 | LENS,RED | 12268- | |
| 1 | 23A-06-21410 | LENS,AMBER | 12268- | |
| 2 | 424-06-43270 | REFLECTOR | 12268- | |
| 3 | 01602-20619 | WASHER | 12268- | |
| 4 | 01580-10605 | NUT | 12268- | |
| 5 | 415-06-23210 | BRACKET,L.H. | 12268- | |
| 6 | 415-06-23220 | BRACKET,R.H. | 12268- | |
| 7 | 08037-03614 | GROMMET | 10001- | |
| 8 | 08193-21012 | CLIP | 12268- | |
| 9 | 01010-81016 | BOLT | 12268- | |
| 10 | 01643-31032 | WASHER | 12268- | |
| 11 | 415-06-23230 | PLATE | 12268- | |
| 12 | 01435-01016 | BOLT | 10001- |
