| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-829-1310 | BUCKET, LIGHT MATERIAL | ||
| 2 | 416-829-1320 | EDGE, SIDE CUTTING | ||
| 3 | 416-70-A1120 | BLADE, CUTTING | ||
| 4 | 417-70-12141 | CORNER, LH | ||
| 5 | 417-70-12151 | CORNER, RH | ||
| 6 | 417-820-1B20 | SKID |
- Главная
- Каталог запчастей
- Колесные погрузчики
- 512 s/n c003001 up
- Work equipment
- Light material bucket 2.25 cubic yard / 1.7 cubic meter
Поиск по каталогу

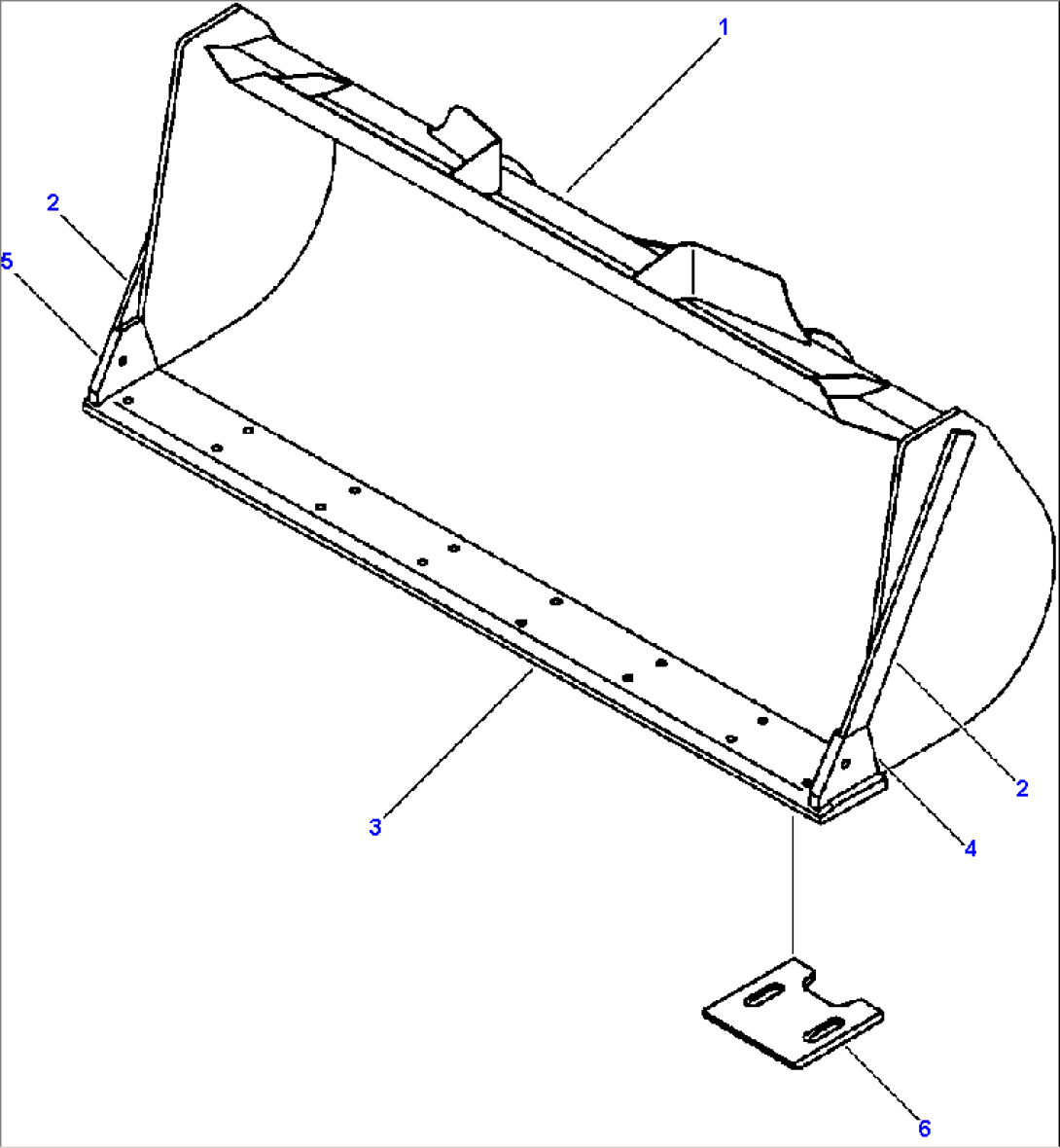

LIGHT MATERIAL BUCKET 2.25 CUBIC YARD / 1.7 CUBIC METER
