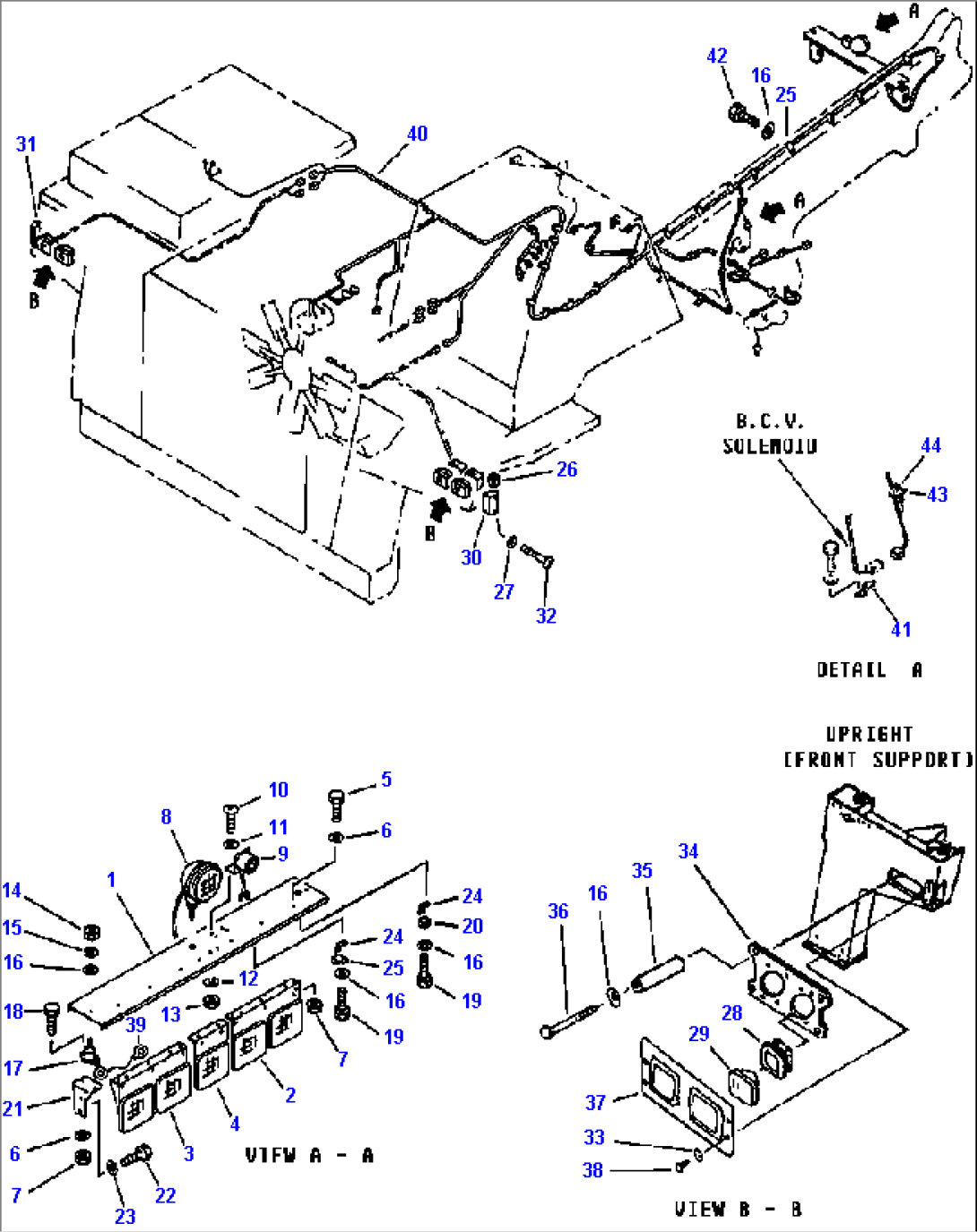

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-61151 | BRACKET | ||
| 2 | 566-06-14311 | LAMP, REAR COMBINATION | ||
| 2 | 566-06-14340 | LENS (RED) | ||
| 2 | 566-06-14350 | LENS (YELLOW) | ||
| 2 | 08102-02403 | BULB, 3W | ||
| 2 | 08104-12420 | BULB, 25/10W | ||
| 2 | 08105-12420 | BULB, 25W | ||
| 3 | 566-06-14321 | LAMP, REAR COMBINATION | ||
| 3 | 566-06-14340 | LENS (RED) | ||
| 3 | 566-06-14350 | LENS (YELLOW) | ||
| 3 | 08102-02403 | BULB, 3W | ||
| 3 | 08104-12420 | BULB, 25/10W | ||
| 3 | 08105-12420 | BULB, 25W | ||
| 4 | 566-06-14331 | LAMP (RED) | ||
| 4 | 566-06-14360 | LENS | ||
| 4 | 08104-12420 | BULB, 25/10W | ||
| 5 | 01010-50825 | BOLT | ||
| 6 | 01643-30823 | WASHER | ||
| 7 | 01580-10806 | NUT | ||
| 8 | 08128-22400 | LAMP ASSEMBLY, BACKUP | ||
| 8 | 08128-00003 | HOLDER | ||
| 8 | 08113-02480 | BULB, 402/40W | ||
| 9 | 427-06-11310 | BUZZER, BACKUP | ||
| 10 | 01220-40410 | SCREW | ||
| 11 | 01642-20405 | WASHER | ||
| 12 | 01601-20410 | WASHER, SPRING | ||
| 13 | 01580-10403 | NUT | ||
| 14 | 01580-11008 | NUT | ||
| 15 | 01602-21030 | WASHER | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 565-03-11270 | CUSHION | ||
| 18 | 01010-50820 | BOLT | ||
| 19 | 01010-51016 | BOLT | ||
| 20 | 561-06-63730 | CONNECTOR ASSEMBLY | ||
| 21 | 561-06-61160 | BRACKET | ||
| 22 | 01010-51420 | BOLT | ||
| 23 | 01643-31445 | WASHER | ||
| 24 | 7821-92-5110 | BRACKET | ||
| 25 | 08036-01414 | CLIP | ||
| 26 | 01580-10504 | NUT | ||
| 27 | 01643-30623 | WASHER | ||
| 28 | 421-06-13150 | BRACKET ASSEMBLY | ||
| 29 | 23S-06-13221 | LAMP, HEAD | ||
| 30 | 421-06-13301 | LAMP ASSEMBLY - L.H. | ||
| 30 | 421-06-13310 | BULB, 10/4W | ||
| 30 | 22W-06-12310 | LENS | ||
| 30 | 08105-12420 | BULB, 26W | ||
| 31 | 421-06-13401 | LAMP ASSEMBLY - R.H. | ||
| 31 | 421-06-13310 | BULB, 10/4W | ||
| 31 | 22W-06-12320 | LENS | ||
| 31 | 08105-12420 | BULB, 26W | ||
| 32 | 01220-40512 | SCREW | ||
| 33 | 01642-40608 | WASHER | ||
| 34 | 569-54-61840 | PLATE | ||
| 35 | 6130-12-4571 | SPACER | ||
| 36 | 01011-51000 | BOLT | ||
| 37 | 569-54-61850 | COVER | ||
| 38 | 01220-70612 | SCREW | ||
| 39 | 565-06-12280 | CABLE, GROUND | ||
| 40 | 561-87-71952 | WIRING HARNESS, MAIN | ||
| 41 | 7821-92-51150 | BRACKET | ||
| 42 | 01010-51025 | BOLT | ||
| 43 | 08034-00414 | BAND | ||
| 44 | 421-06-11970 | DIODE |
