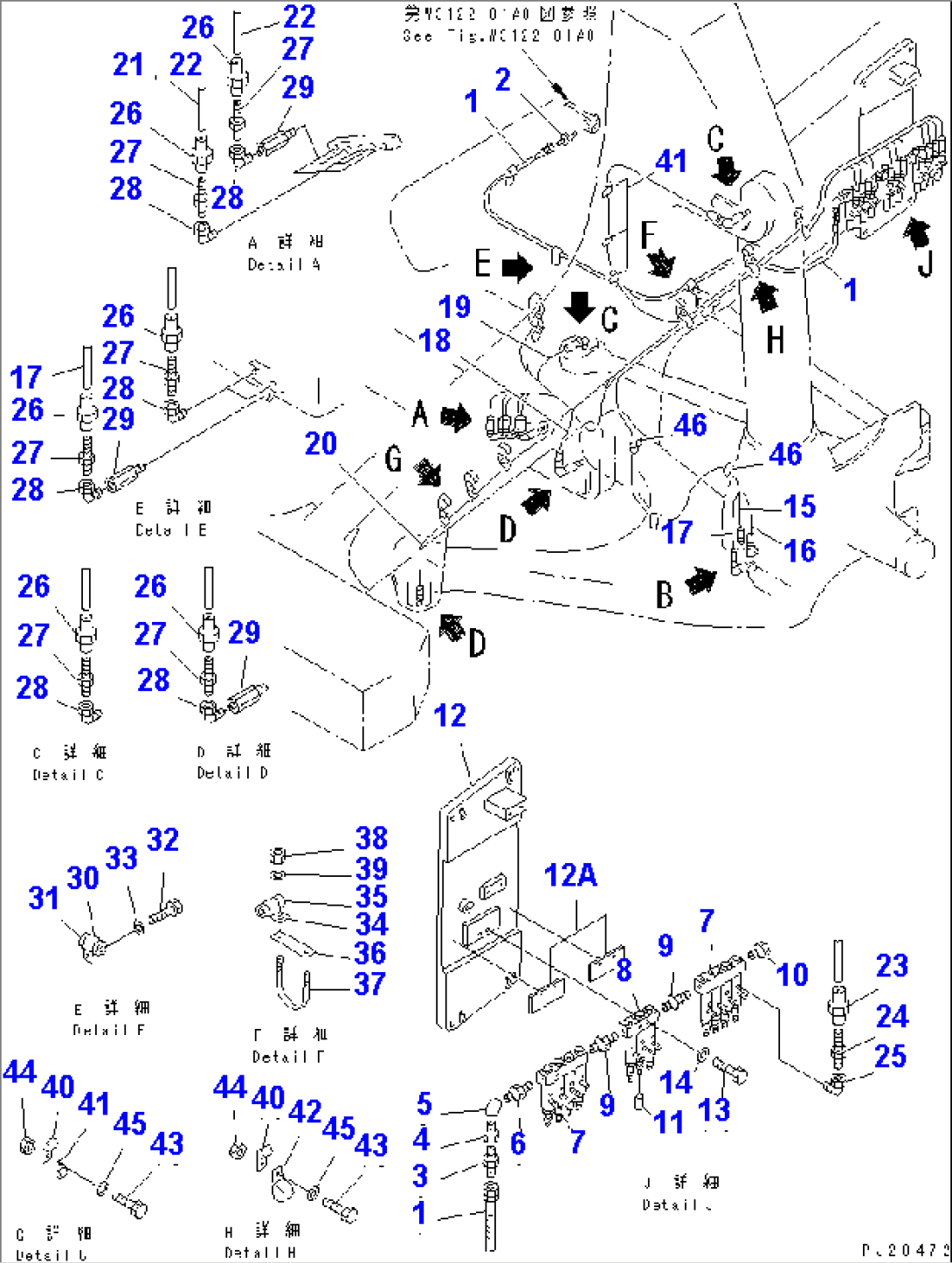

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07086-00323 | HOSE | 4001- | |
| 2 | 07238-10315 | CONNECTOR | 4001- | |
| 3 | 22W-62-17710 | NIPPLE | 4001- | |
| 4 | 07326-10603 | ADAPTER | 4001- | |
| 5 | 561-95-63240 | ELBOW | 4001- | |
| 6 | 561-95-37710 | NIPPLE | 4001- | |
| 7 | (561-95-37450) | INJECTOR ASS'Y | 4001- | |
| 8 | (581-96-19520) | INJECTOR ASS'Y | 4001- | |
| 9 | 581-96-19580 | NIPPLE | 4001- | |
| 10 | 581-96-19590 | PLUG | 4001- | |
| 11 | 561-96-19620 | CAP | 4001- | |
| 12 | 561-95-63331 | BRACKET,L.H. | 4001- | |
| 12A | 561-95-63410 | PLATE (WELDED) | 4001- | |
| 13 | 01010-50845 | BOLT | 4001- | |
| 14 | 01643-30823 | WASHER | 4001- | |
| 15 | 561-95-63560 | HOSE,(L=2900MM) | 4001- | |
| 16 | 561-95-63570 | HOSE,(L=3000MM) | 4001- | |
| 17 | 425-595-2330 | HOSE,(L=3100MM) | 4001- | |
| 18 | 561-95-63540 | HOSE,(L=2600MM) | 4001- | |
| 19 | 561-95-63590 | HOSE,(L=3400MM) | 4001- | |
| 20 | 561-95-63580 | HOSE,(L=3200MM) | 4001- | |
| 21 | 561-95-63550 | HOSE,(L=2700MM) | 4001- | |
| 22 | 569-95-64470 | HOSE,(L=2800MM) | 4001- | |
| 23 | 561-95-63270 | SLEEVE | 4001- | |
| 24 | 561-95-63260 | STUD | 4001- | |
| 25 | 561-95-63250 | ELBOW | 4001- | |
| 26 | 561-95-63270 | SLEEVE | 4001- | |
| 27 | 561-95-63260 | STUD | 4001- | |
| 28 | 561-95-63290 | ELBOW | 4001- | |
| 29 | 562-95-13150 | NIPPLE | 4001- | |
| 30 | 08036-02514 | CLIP | 4001- | |
| 31 | 566-06-41290 | INSULATOR | 4001- | |
| 32 | 01010-51218 | BOLT | 4001- | |
| 33 | 01643-31232 | WASHER | 4001- | |
| 34 | 08036-02514 | CLIP | 4001- | |
| 35 | 566-06-41290 | INSULATOR | 4001- | |
| 36 | 561-04-61290 | PLATE | 4001- | |
| 37 | 07283-27663 | CLIP | 4001- | |
| 38 | 01599-01011 | NUT | 4001- | |
| 39 | 01643-31032 | WASHER | 4001- | |
| 40 | 04434-52110 | CLIP | 4001- | |
| 41 | 04434-50810 | CLIP | 4001- | |
| 42 | 23S-61-24870 | CLIP | 4001- | |
| 43 | 01010-51020 | BOLT | 4001- | |
| 44 | 01580-11008 | NUT | 4001- | |
| 45 | 01643-31032 | WASHER | 4001- | |
| 46 | 08036-01814 | CLIP | 4001- |
