| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-U94-1650 | WIRE ASS'Y | 20001- | |
| 421-06-11970 | DIODE | 20001- | ||
| 2 | 418-U94-1640 | WIRING HARNESS | 20001- | |
| 3 | 418-U94-1610 | SWITCH | 20001- | |
| 4 | 7818-19-2010 | SENSOR | 20001- | |
| 5 | 07002-51423 | O-RING | 20001- | |
| 6 | 08034-20519 | BAND | 20001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 1 s/n 10001 up
- Engine related parts and electrical system
- Load meter (3/3) (electrical system)(#20001 )
Поиск по каталогу

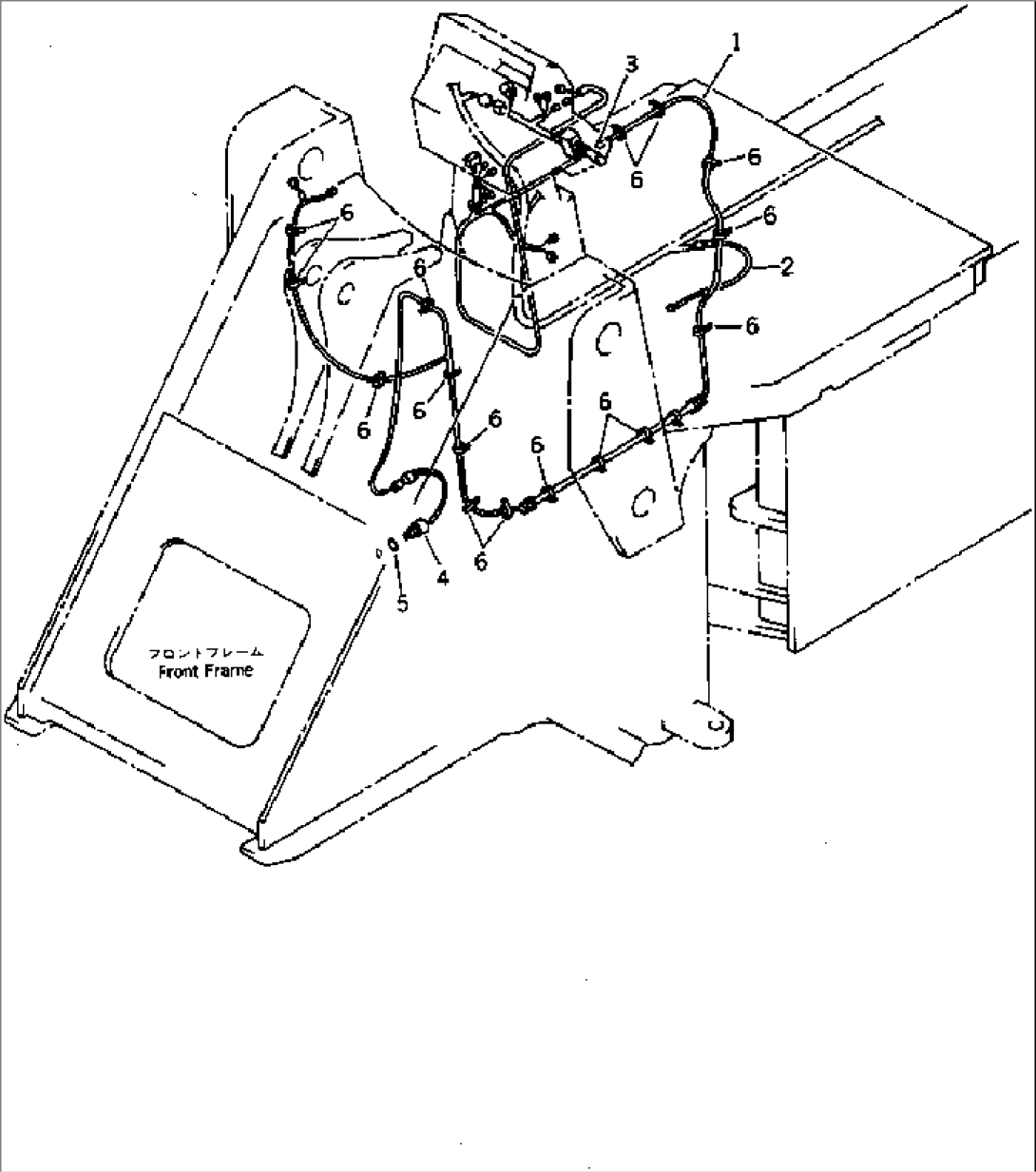

LOAD METER (3/3) (ELECTRICAL SYSTEM)(#20001-)
