| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-31121 | SWITCH | 70001- | |
| 2 | 418-877-3230 | BRACKET | 70001- | |
| 3 | 01225-70645 | SCREW | 70001- | |
| 4 | 418-926-3490 | WASHER | 70001- | |
| 5 | 417-06-12560 | GROMMET | 70001- | |
| 6 | 08037-02512 | GROMMET | 70001- | |
| 7 | 423-06-45480 | SWITCH | 70001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200pz 6 s/n 70001 70882
- Operator's compartment and control system
- Loader control (f r switch) (for 3 lever and multi coupler)(#70001 )
Поиск по каталогу

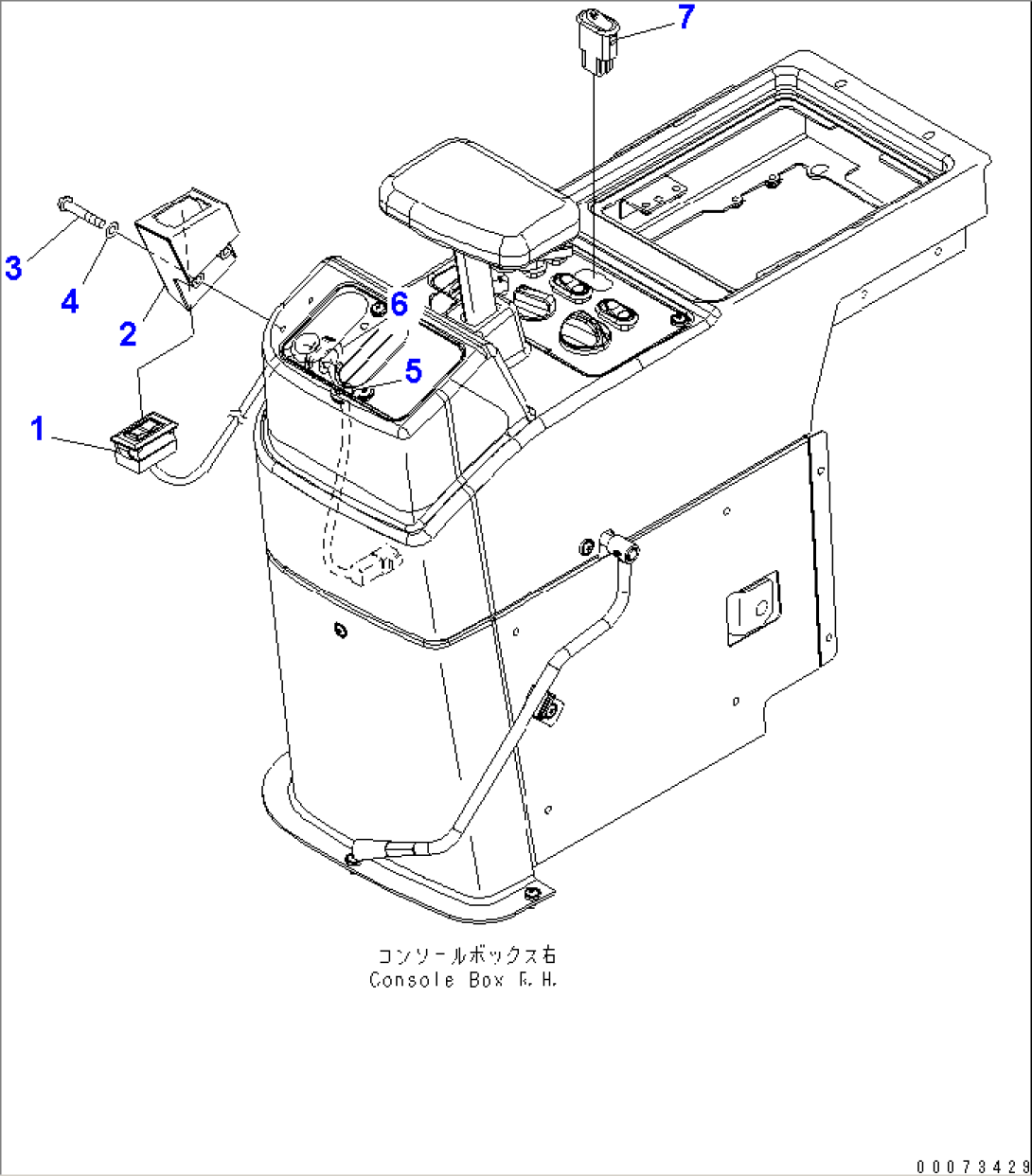

LOADER CONTROL (F-R SWITCH) (FOR 3 LEVER AND MULTI COUPLER)(#70001-)
