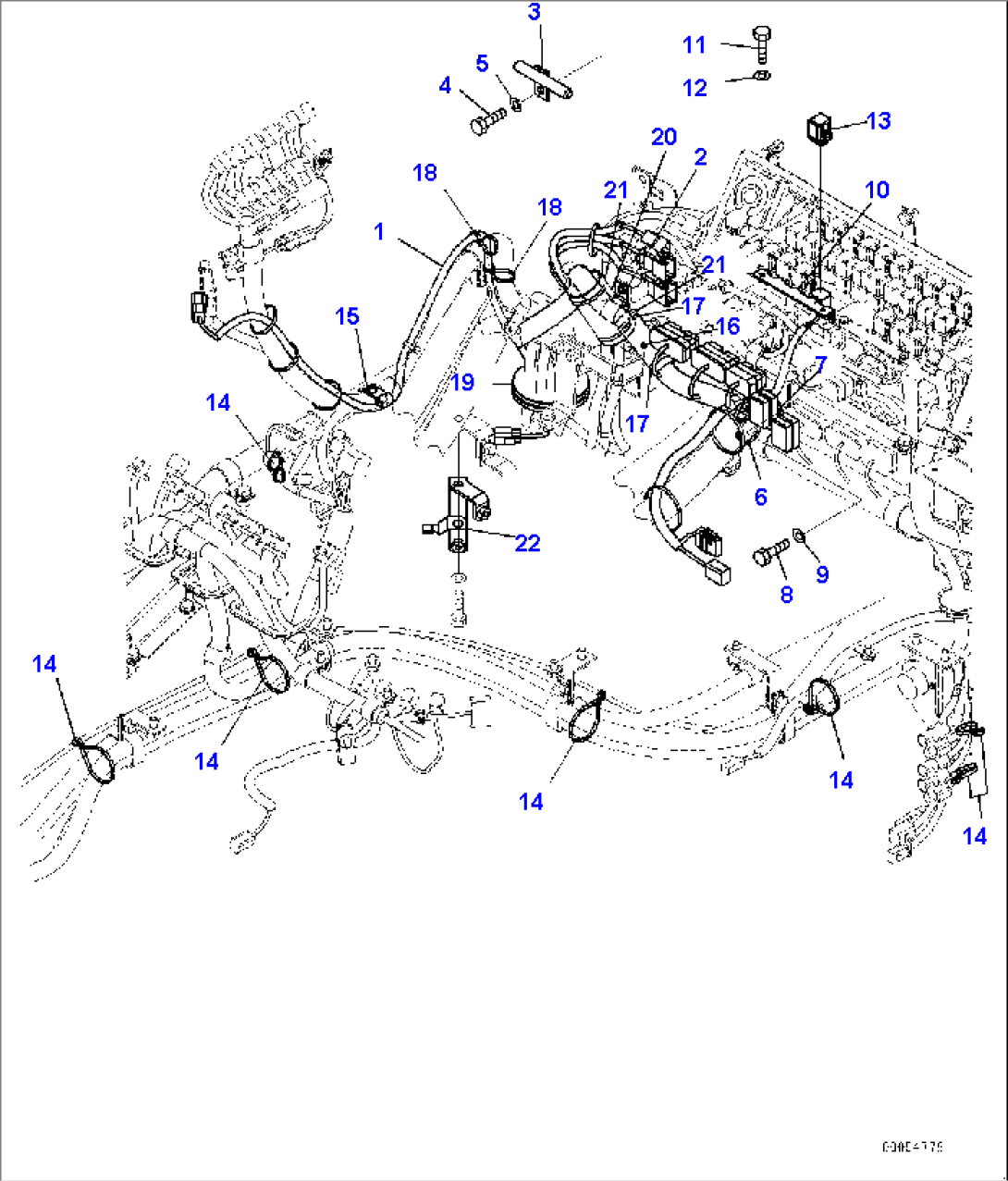

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-S33-4390 | Wiring Harness | 90047- | |
| 2 | 142-06-13540 | Clip | 90047- | |
| 3 | 421-V91-4150 | Guide | 90047- | |
| 4 | 01010-81030 | Bolt | 90047- | |
| 5 | 01643-31032 | Washer | 90047- | |
| 6 | 134-03-61410 | Band | 90047- | |
| 7 | 04434-51012 | Clip | 90047- | |
| 8 | 01010-81025 | Bolt | 90047- | |
| 9 | 01643-31032 | Washer | 90047- | |
| 10 | 569-06-61180 | Bracket | 90047- | |
| 11 | 01010-80616 | Bolt | 90047- | |
| 12 | 01643-30623 | Washer | 90047- | |
| 13 | 569-06-61960 | Relay | 90047- | |
| 14 | 134-03-61410 | Band | 90047- | |
| 15 | 04434-51012 | Clip | 90047- | |
| 16 | 423-06-42740 | Sheet | 90047- | |
| 17 | 08034-20536 | Band | 90047- | |
| 18 | 08034-40521 | Band | 90047- | |
| 19 | 423-S33-4410 | Grommet | 90047- | |
| 20 | 423-06-42740 | Sheet | 90047- | |
| 21 | 08034-20536 | Band | 90047- | |
| 22 | 423-S33-4420 | Bracket | 90047- |
