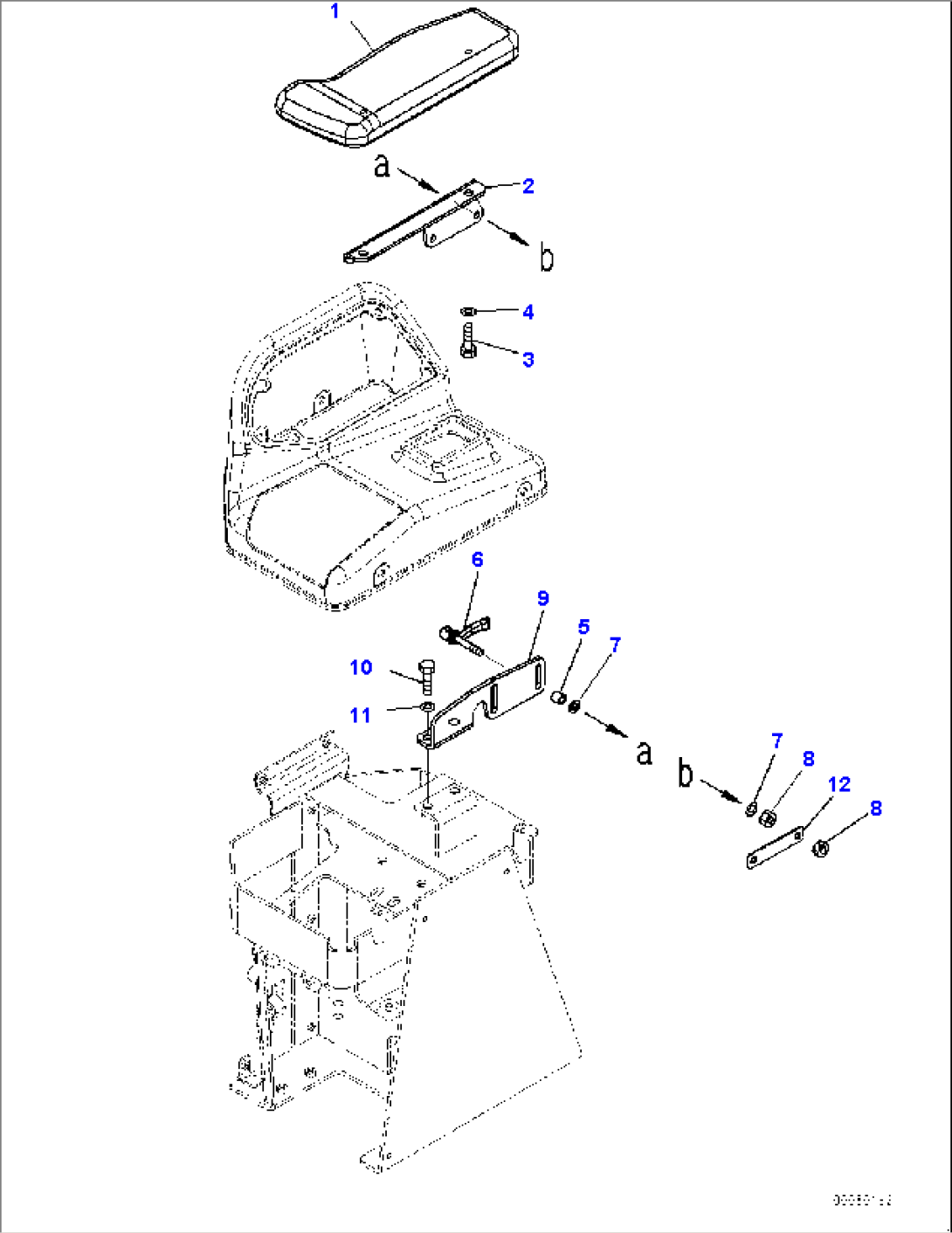

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-43-48321 | Arm Rest | 90047- | |
| 2 | 423-43-48420 | Bracket | 90047- | |
| 3 | 01010-81016 | Bolt | 90047- | |
| 4 | 01643-31032 | Washer | 90047- | |
| 5 | 423-43-38160 | Pipe | 90047- | |
| 6 | 423-43-38170 | Lever | 90047- | |
| 7 | 01643-30823 | Washer | 90047- | |
| 8 | 01580-10806 | Nut | 90047- | |
| 9 | 423-43-48410 | Bracket | 90047- | |
| 10 | 01010-81025 | Bolt | 90047- | |
| 11 | 01643-31032 | Washer | 90047- | |
| 12 | 425-43-31141 | Plate | 90047- |
