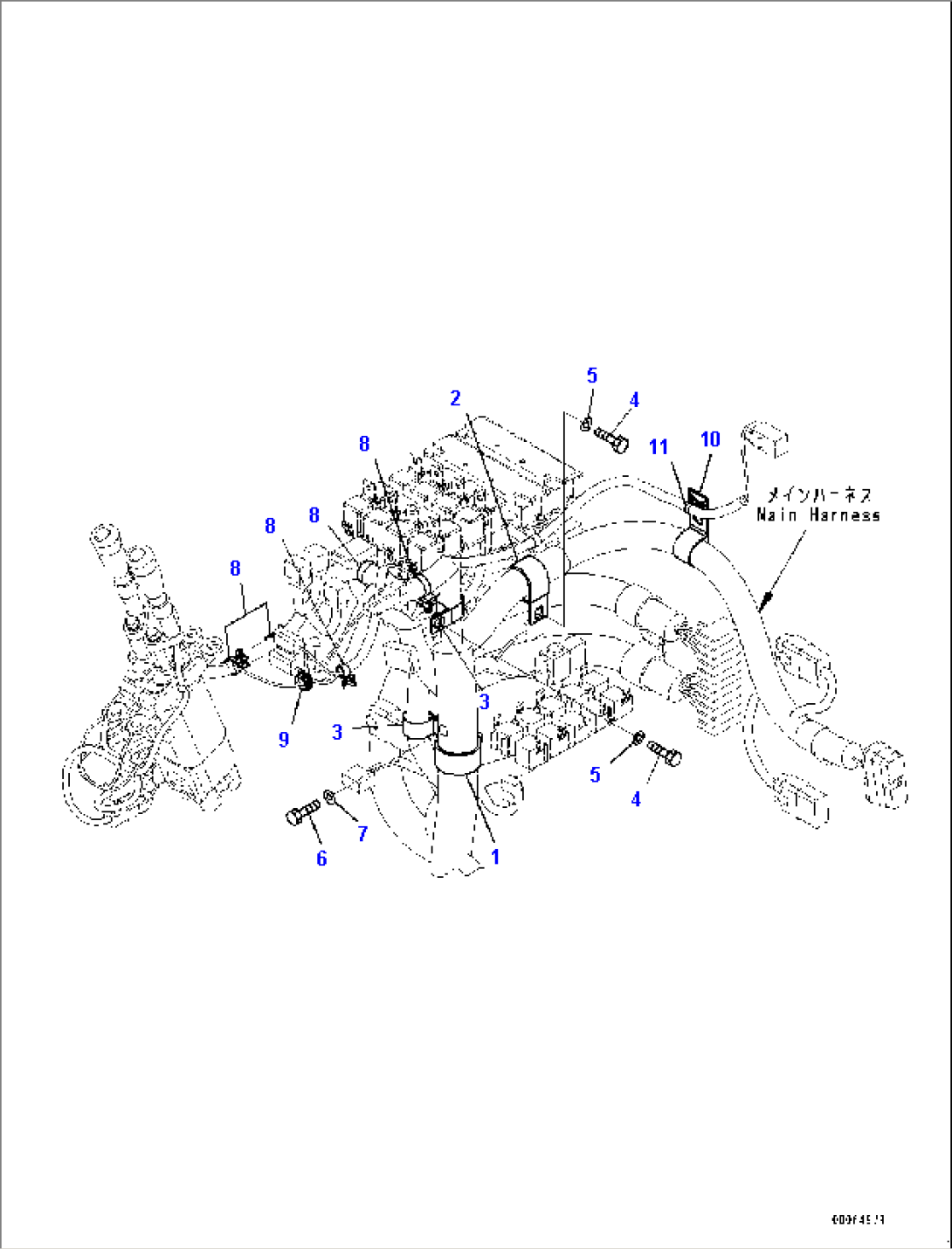

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-09-11150 | Clip | B20001- | |
| 2 | 04434-53412 | Clip | B20001- | |
| 3 | 04434-52312 | Clip | B20001- | |
| 4 | 01010-81016 | Bolt | B20001- | |
| 5 | 01643-31032 | Washer | B20001- | |
| 6 | 01010-81020 | Bolt | B20001- | |
| 7 | 01643-31032 | Washer | B20001- | |
| 8 | 08059-00310 | Clip | B20001- | |
| 9 | 417-06-12560 | Grommet | B20001- | |
| 10 | 20U-54-46520 | Hook, Sticker Type | B20001- | |
| 11 | 08034-40521 | Band | B20001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n b20001 up
- Operator's compartment and control system
- Loader control unit, floor, wiring harness
