| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-06130 | Valve, Pilot | 90047- | |
| 2 | 702-16-54641 | Boot | 90047- | |
| 3 | 01252-60625 | Bolt | 90047- | |
| 4 | 702-16-54650 | Plate | 90047- | |
| 5 | 702-16-54920 | Ring | 90047- | |
| 6 | 08034-00310 | Band, White | 90047- | |
| 7 | 08034-20310 | Band, Black | 90047- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 90462 up (chassis only) (for kal)
- Operator's compartment and control system
- Loader control unit, inner parts, ppc valve (#90047 )
Поиск по каталогу

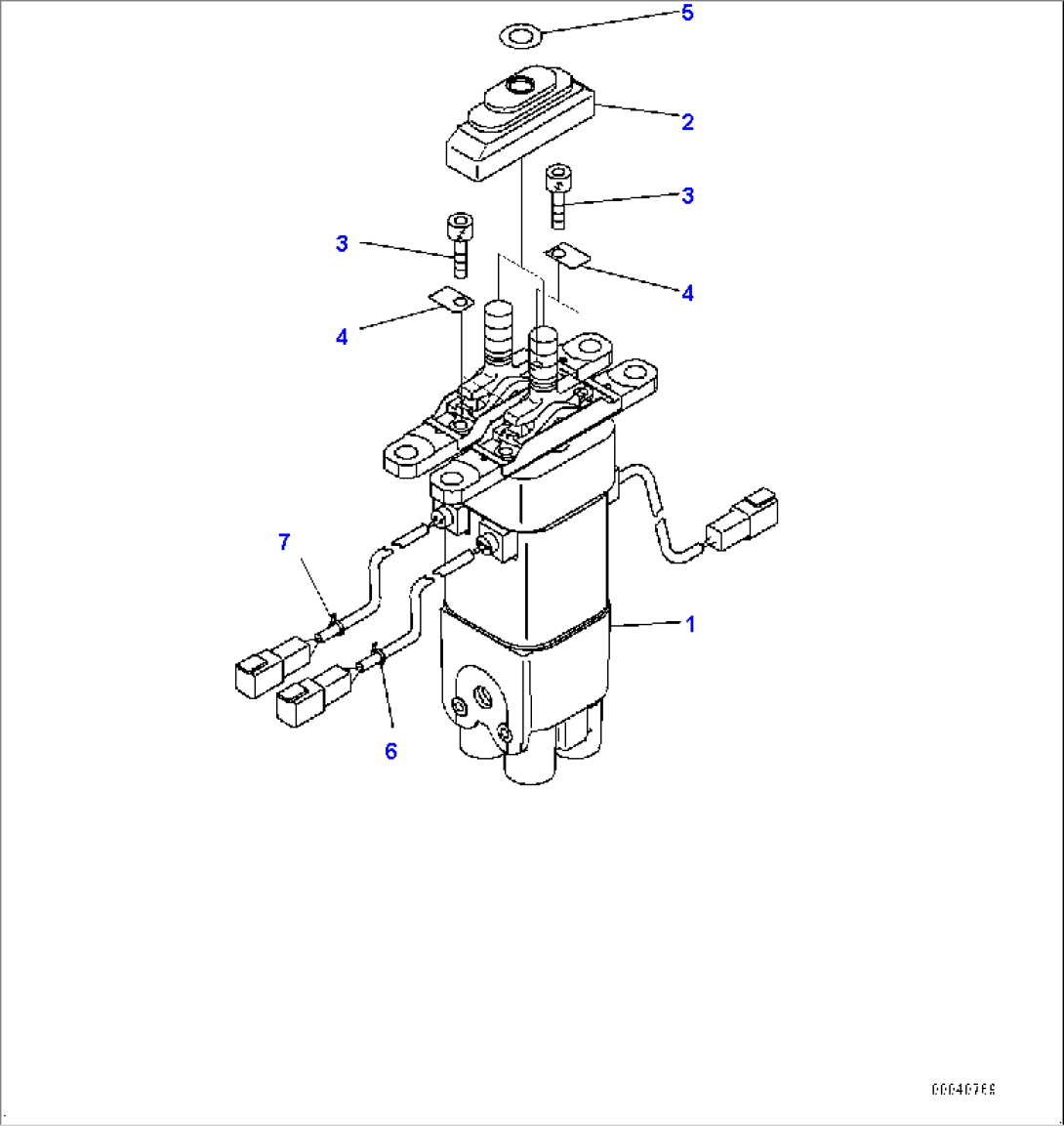

Loader Control Unit, Inner Parts, PPC Valve (#90047-)
